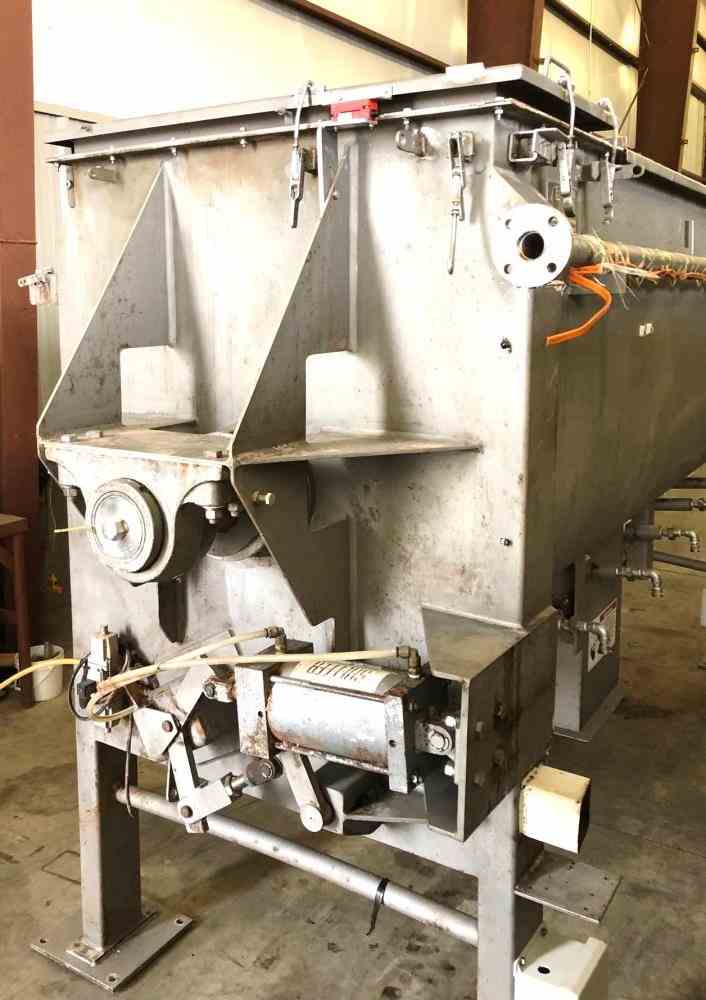

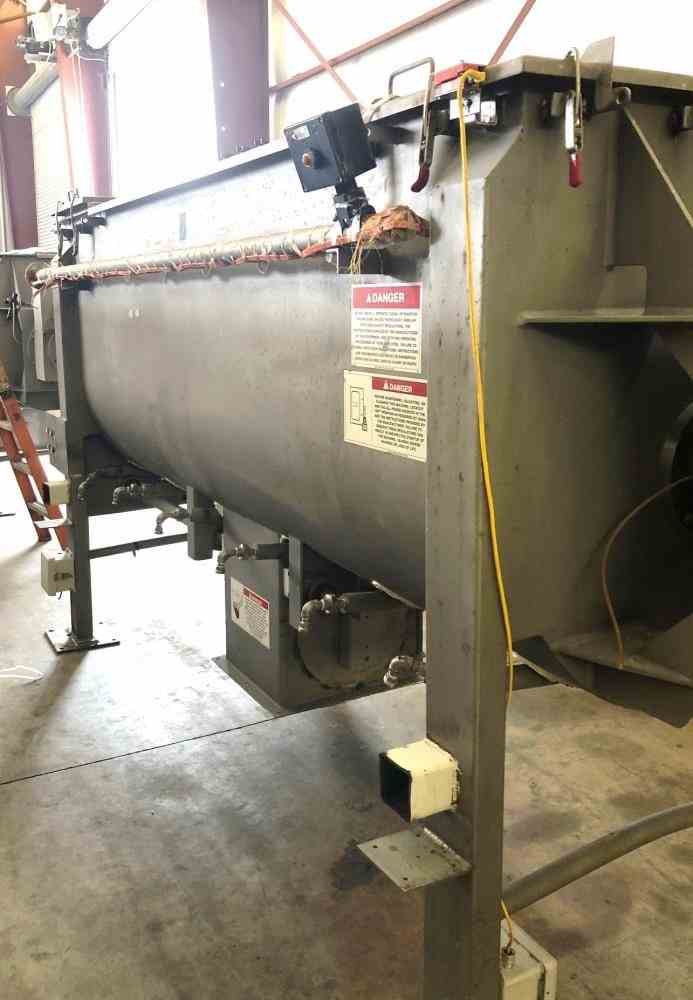

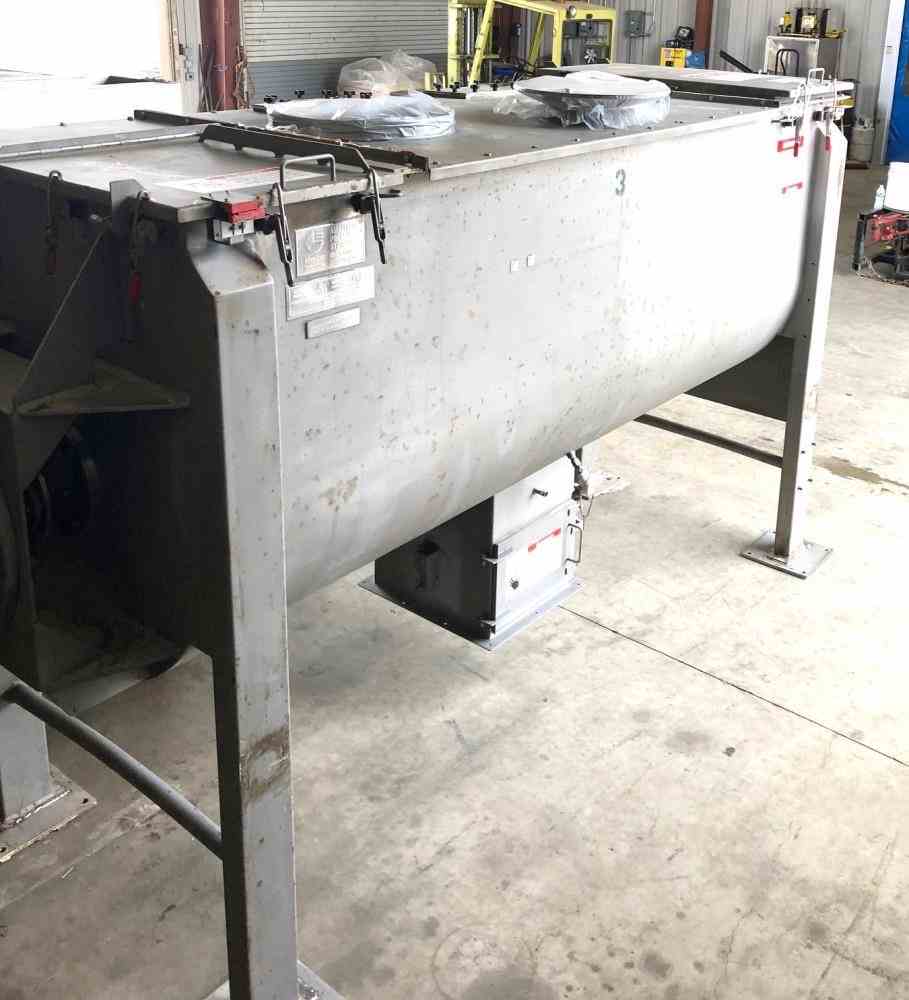

95 Cu Ft American Process SS Ribbon Blender
Other Views - click image for larger view
95 Cu Ft American Process SS Ribbon Blender 95 Cu Ft American Process SS Ribbon Blender 95 Cu Ft American Process SS Ribbon Blender 95 Cu Ft American Process SS Ribbon Blender 95 Cu Ft American Process SS Ribbon Blender 95 Cu Ft American Process SS Ribbon Blender

95 cu ft american process ss ribbon blender

Stock # 15585
Sold
Capacity 95 Cu Ft

Overview

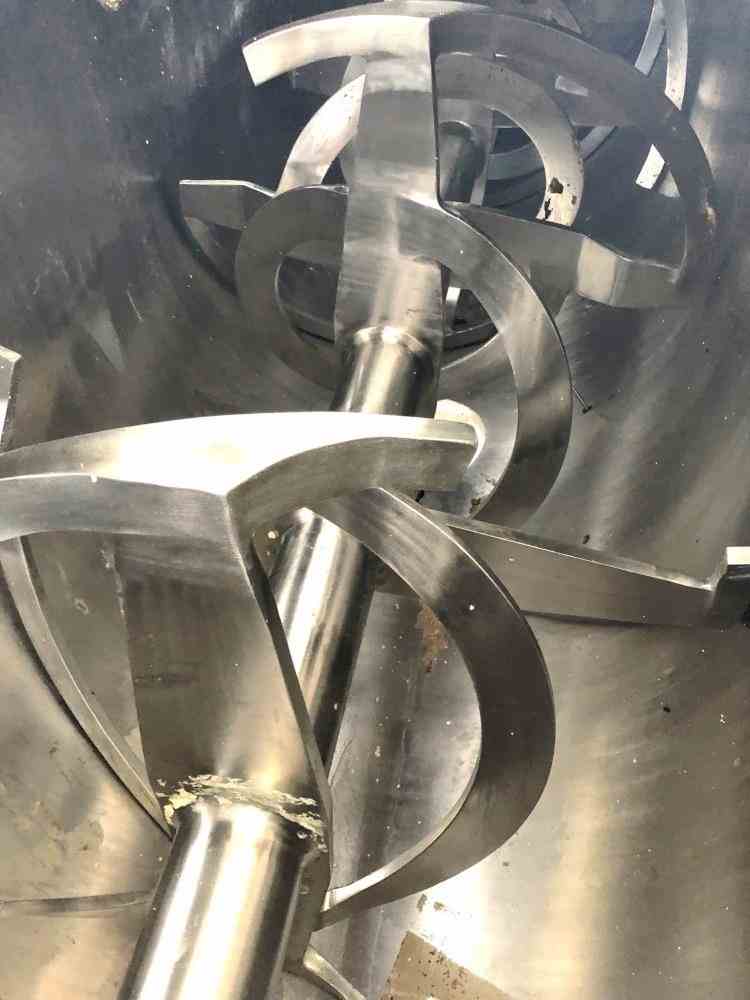

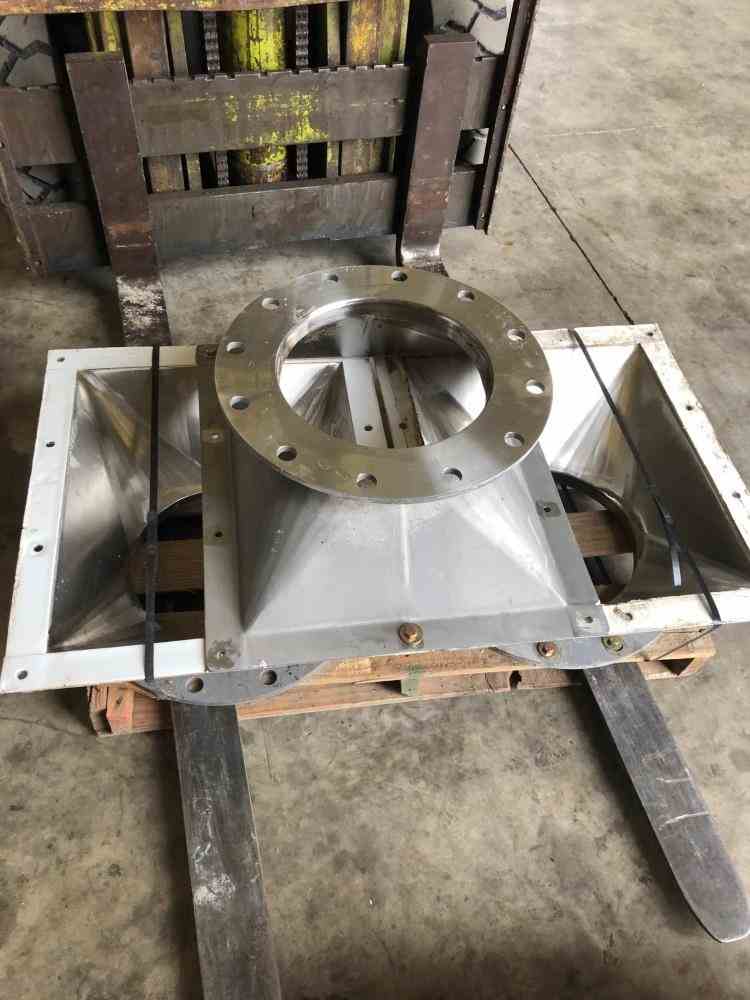

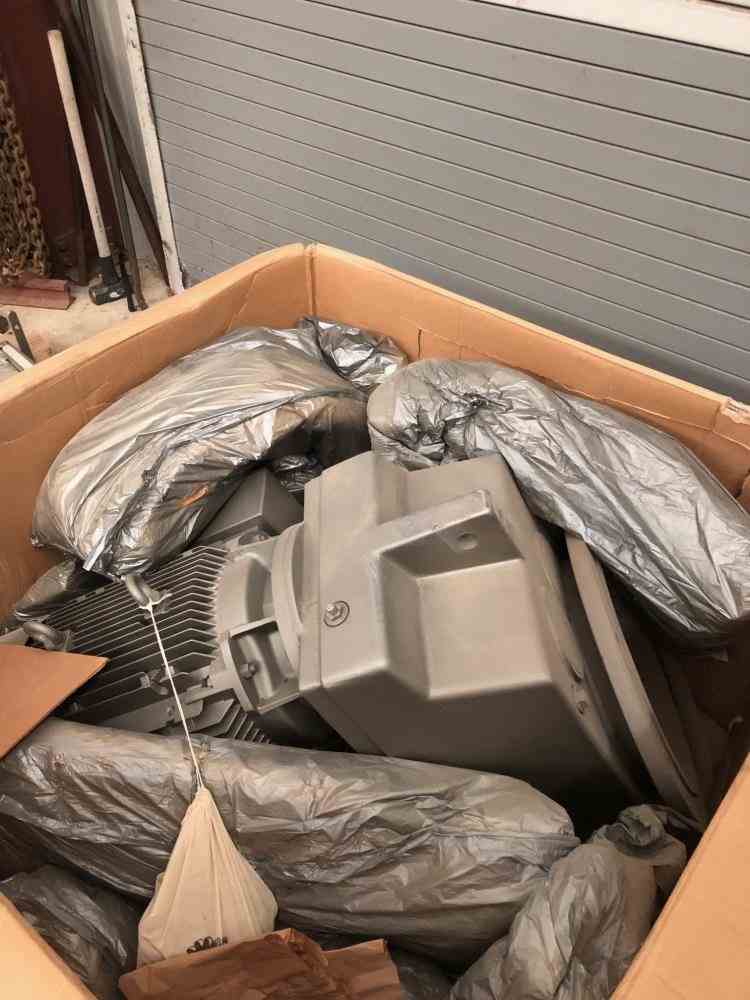

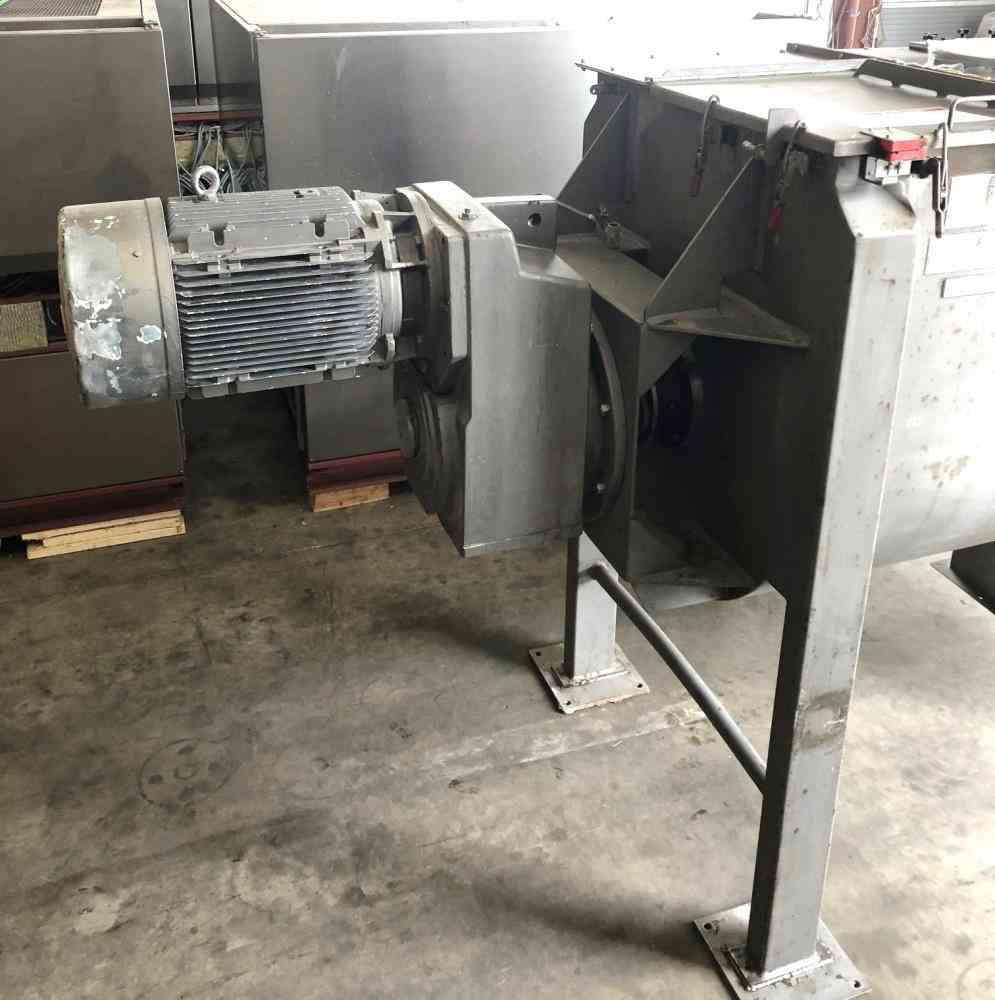

Used 95 Cu Ft American Process Double Spiral Ribbon Blender. Model DRB-95. Stainless Steel. Non-jacketed trough 42" wide x 122" long x approximate 44" deep. 5" Diameter shaft, inner ribbon 3" wide x 1/2" thick, outer 1-7/8" wide x 7/8" thick, welded to support bars. 12" Diameter center bottom outlet with an air operated valve. Top cover with opening, (6) bottom and (7) top injection ports. Mixer driven by an approximate 40hp motor thru a reducer, ratio 47.80 to 1. Mounted on 4 legs. Serial# 5735. Built 2001.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
American Process
Model
DRB-95
Material
SS
Capacity
95 Cu Ft
Category
Subcategory
