441 Gal RAS Process Equipment  Stainless Steel Tank
Other Views - click image for larger view
441 Gal RAS Process Equipment  Stainless Steel Tank 441 Gal RAS Process Equipment  Stainless Steel Tank 441 Gal RAS Process Equipment  Stainless Steel Tank 441 Gal RAS Process Equipment  Stainless Steel Tank 441 Gal RAS Process Equipment  Stainless Steel Tank

441 gal ras process equipment stainless steel tank

Stock # 14834
Sold
Capacity 441 Gal

Overview

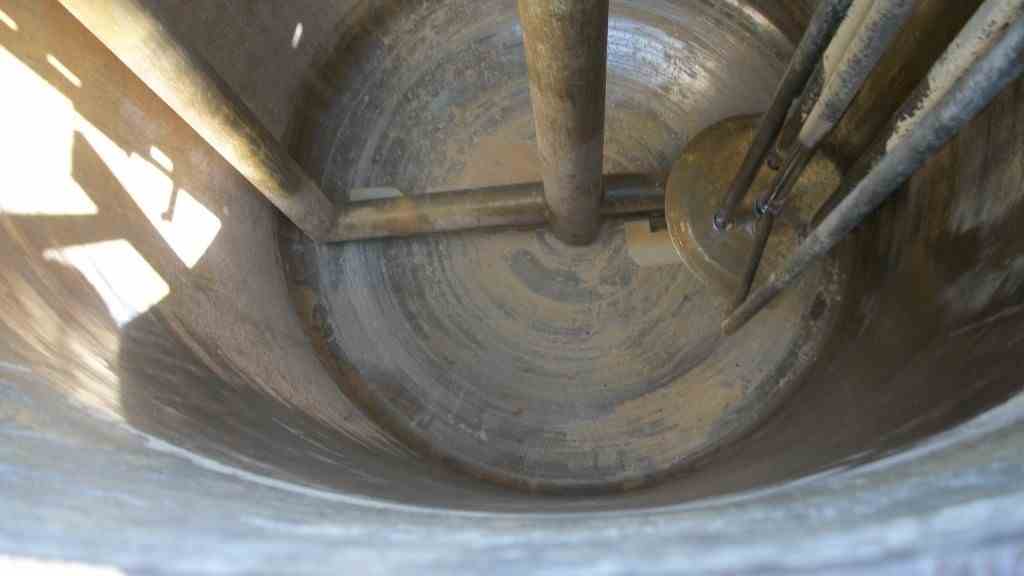

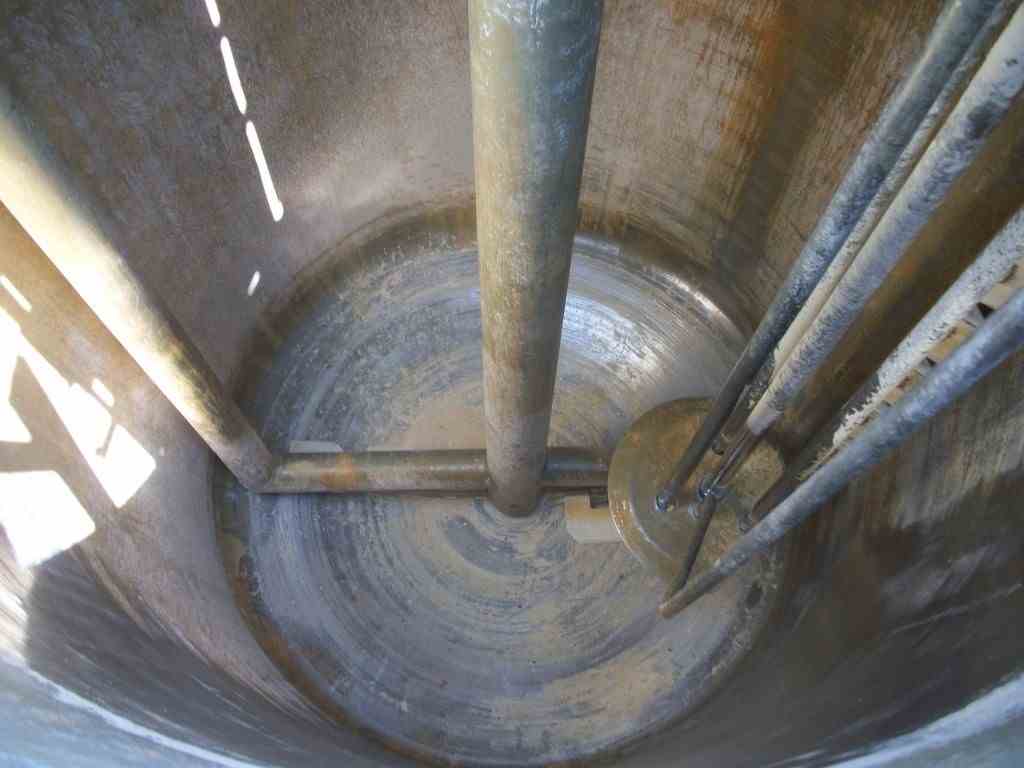

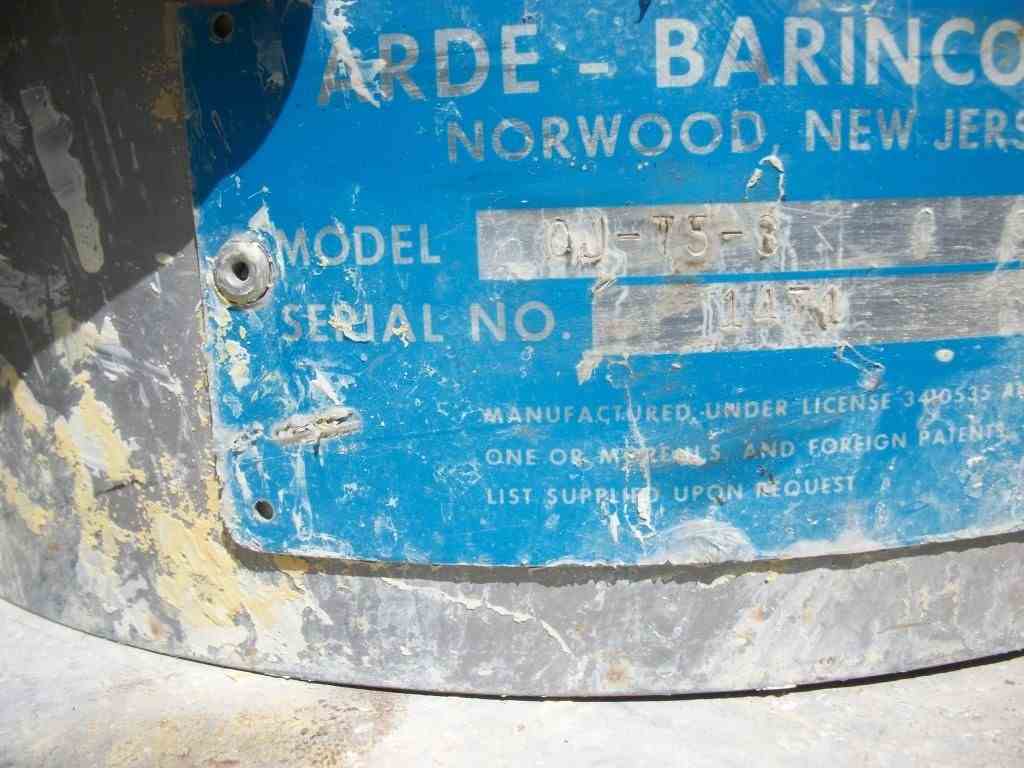

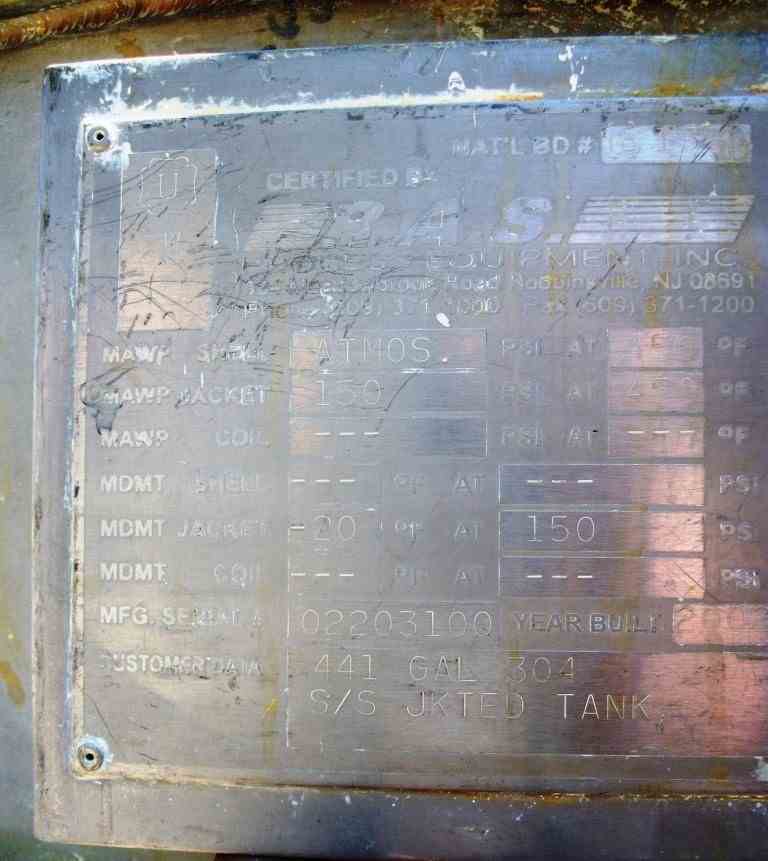

Used RAS Process Equipment 441 gallon tank, 304 stainless steel, jacketed tank, with dual agitation, flat disc high shear mixer and sweep/scraper agitation. Unit measures 44" diameter x 66" straight side, flat top with agitator mount, dish bottom with 2 center bottom outlet. Jacket rated for 150 PSI @ 450 deg. F/ -20 deg. F. High shear mixer manufactured by Arde Barinco, model OJ-75-3, driven by 10 HP 460V 3500 RPM, sweep agitation driven by 7-1/2 HP 230/460V, 1770 rpm thru gearbox with ratio 7.5:1. Serial number 02203100, New in 2002.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
RAS Process Equipment
Model
NA
Material
304-SS
Capacity
441 Gal
