Sani-Matic CIP System
Other Views - click image for larger view
Sani-Matic CIP System Sani-Matic CIP System Sani-Matic CIP System Sani-Matic CIP System Sani-Matic CIP System Sani-Matic CIP System

sani-matic cip system

Stock # 14670
Sold
Capacity 1 GPH

Overview

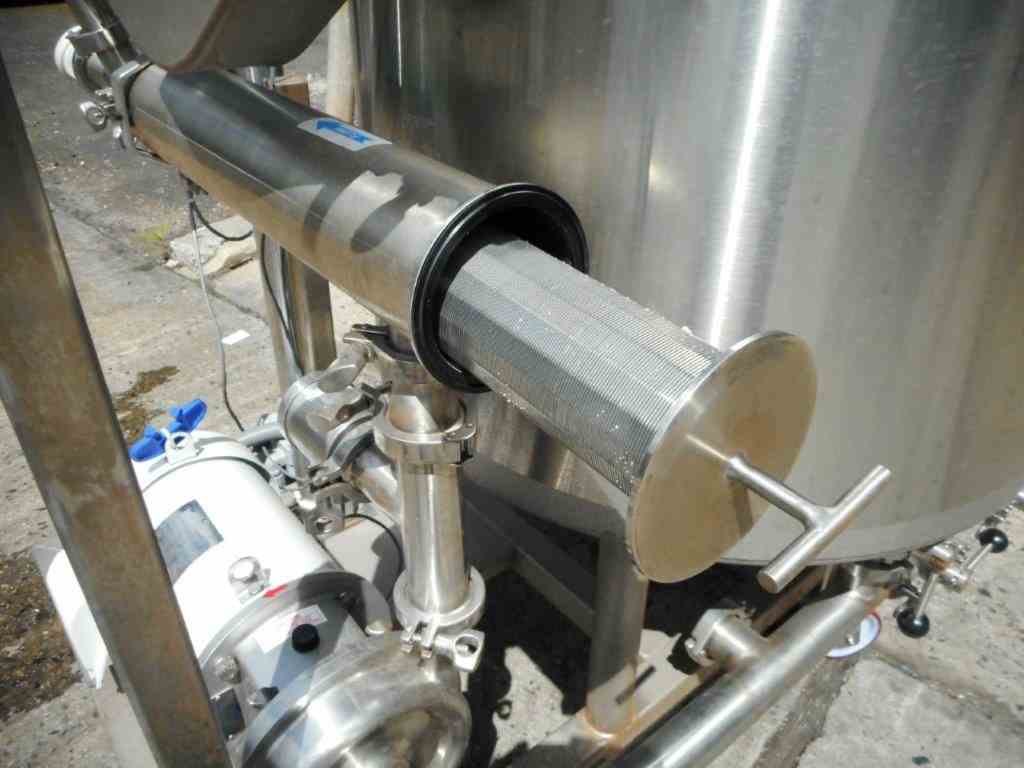

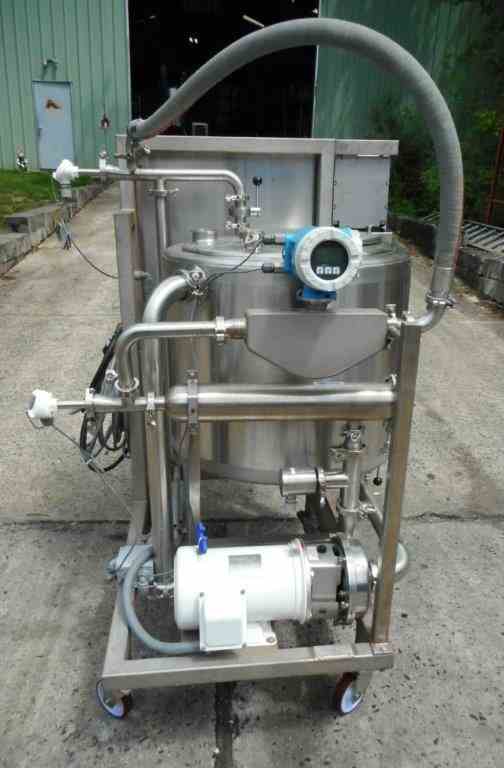

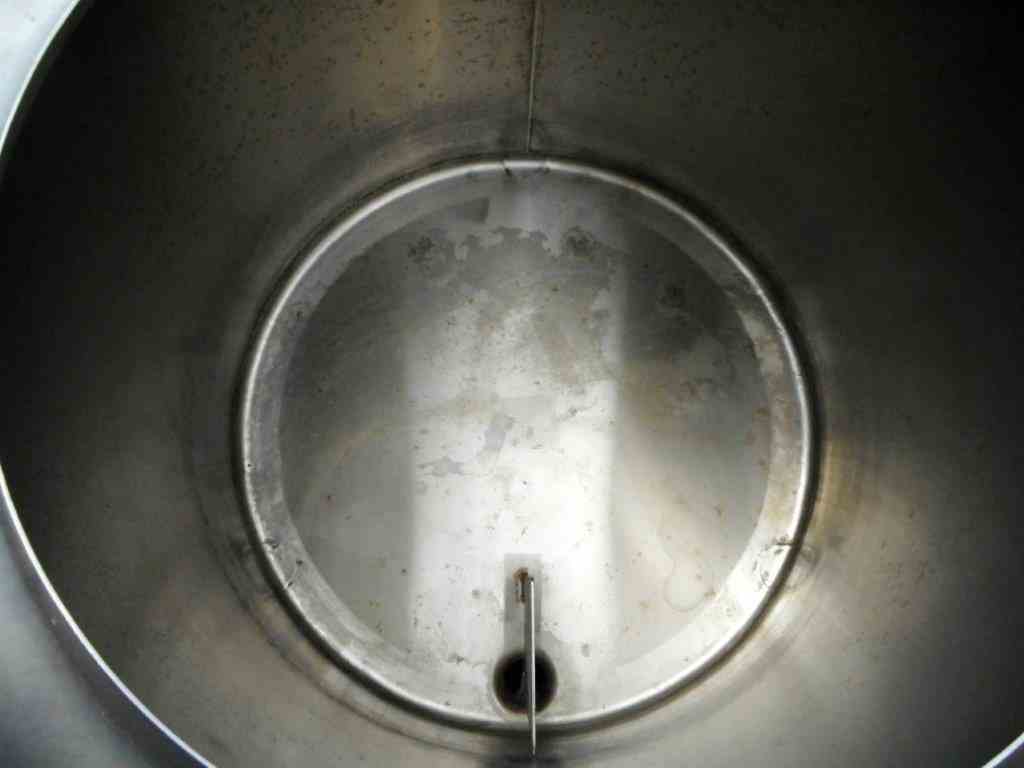

Used single tank CIP system by Sani-Matic, Model CIP-1S-25-S-ST, serial # 202674. Features all 316l stainless steel food grade construction, 50 gallon closed, insulated, shrouded tank, 26" id x 22" deep with flat sloped bottom to 2" discharge with manual butterfly valve and T to pump feed or recirculation, Alpha Laval centrifugal pump, model 9634058251, with mechanical seal and direct coupled 5 horsepower 3520 rpm motor by sterling, pump discharge line includes Anderson pressure sensor to stainless steel mesh filter with removable screen, crane engineering temperature probe, Endress and Hauser flow meter (Promass E) to secondary temperature probe to process or recirculation to tank, factory controls wired for 208 volt/3 phase service with chart recorder and Allen Bradley "Powerflex 70" ac frequency controller. Formerly used in branded personal care products.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Sani-Matic
Model
CIP-1S-25-S-ST
Material
SS
Capacity
1 GPH
