All-Fill  CW-10 Checkweigher
Other Views - click image for larger view
All-Fill  CW-10 Checkweigher All-Fill  CW-10 Checkweigher All-Fill  CW-10 Checkweigher All-Fill  CW-10 Checkweigher All-Fill  CW-10 Checkweigher All-Fill  CW-10 Checkweigher

all-fill cw-10 checkweigher

Stock # 14595
Sold
Capacity Unknown

Overview

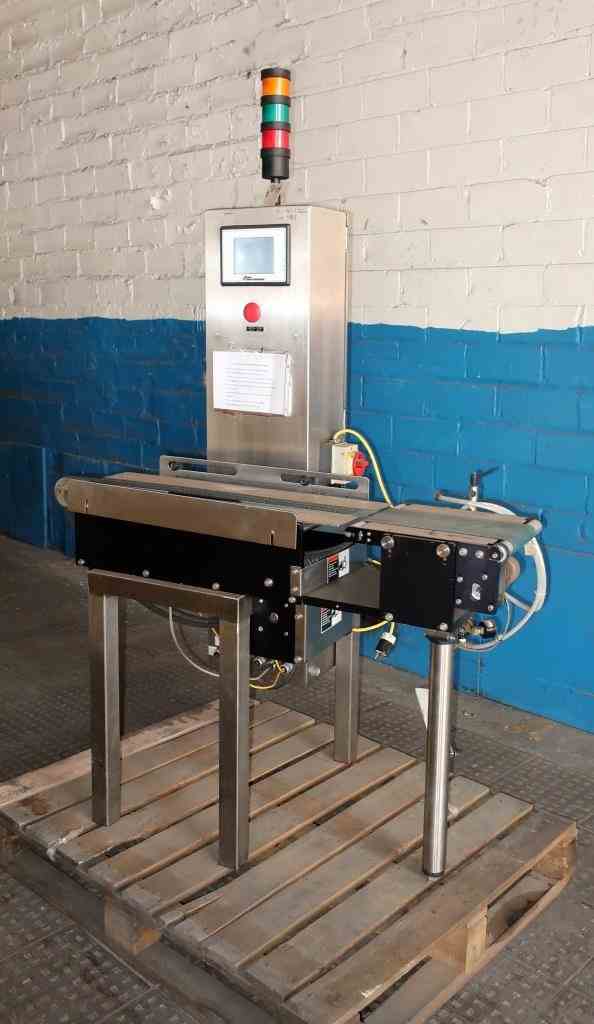

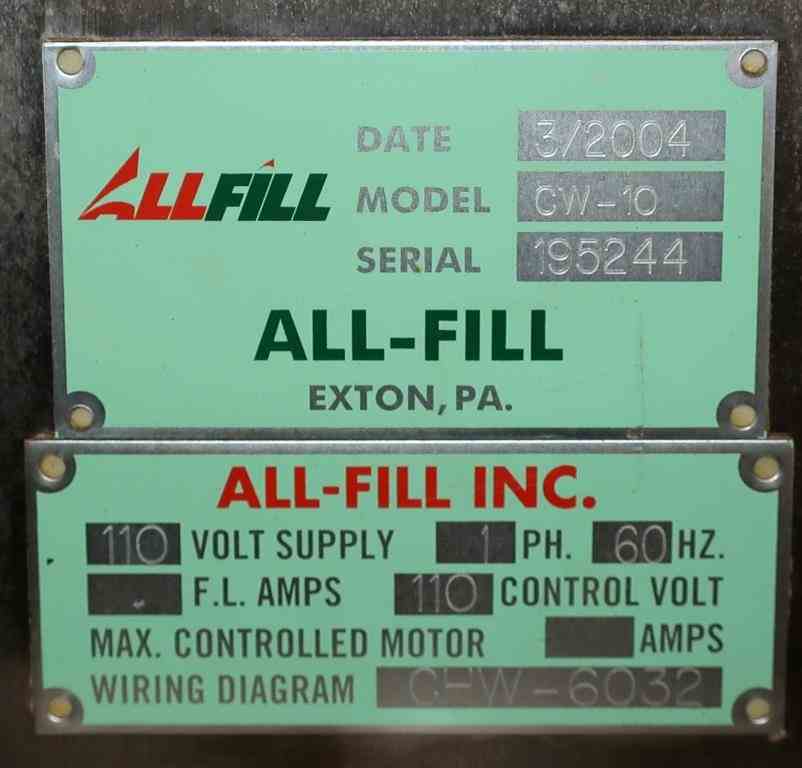

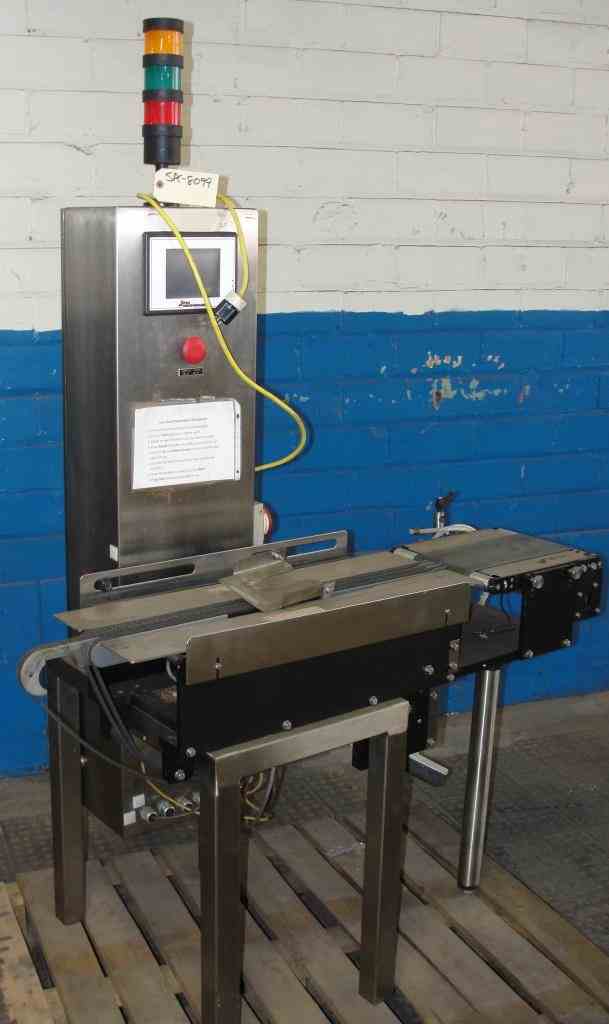

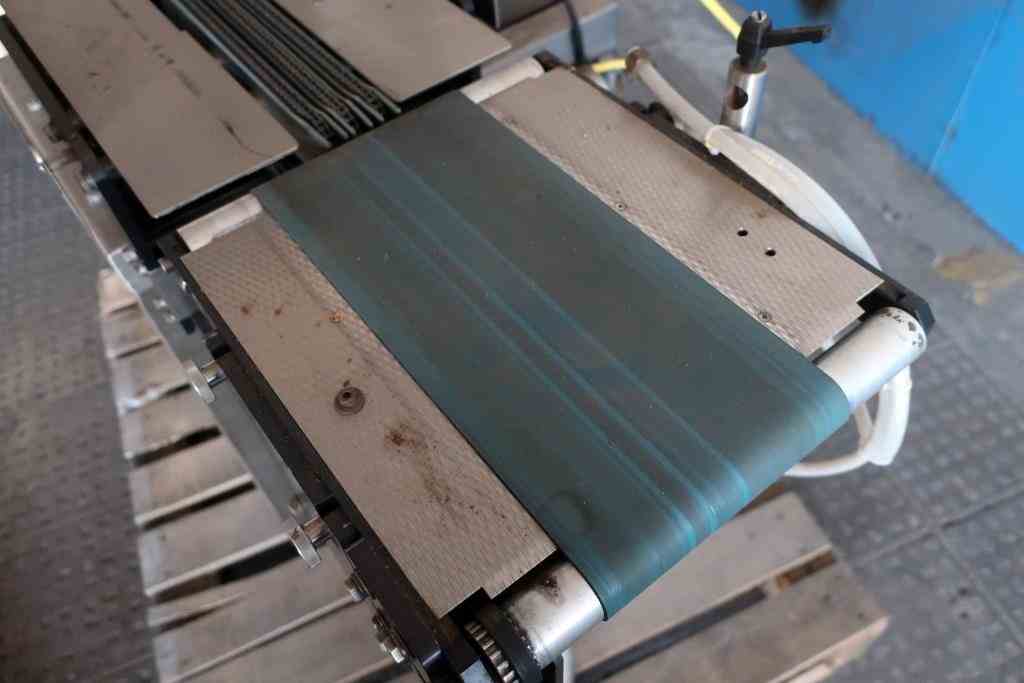

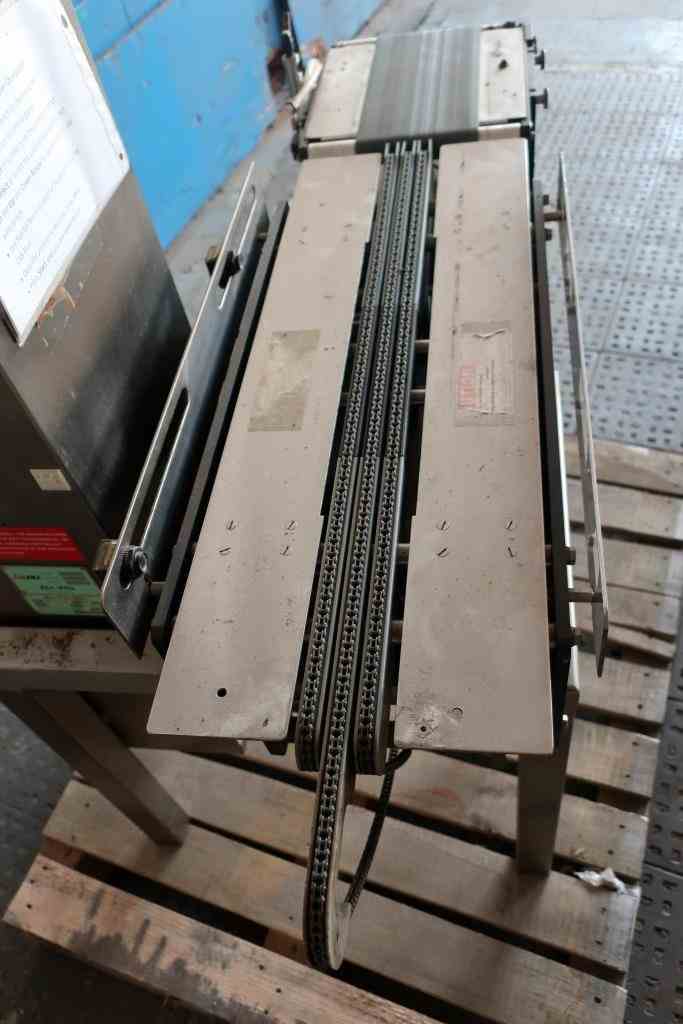

Used All-Fill Stainless Steel Checkweigher, Model CW-10, With side belt transfer. The total width is 13.75” x 48” long with 2” high rails, this area is made up of the side belt feeder that is 13.75” x 11 and includes a 6’ wide belt and a 3 chain track that is a total of 2” wide with a 34” long middle chain and two 32” chains. 12 lb. weighing capacity and line speeds of up to 350 units per minute. It sits 32” off the floor. Electrical 110vac 1ph. Built 3/2004. Serial #195244. Overall 52” x 30” x 72”.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
All-Fill
Model
CW-10
Material
SS
Capacity
Unknown
Category
Subcategory
