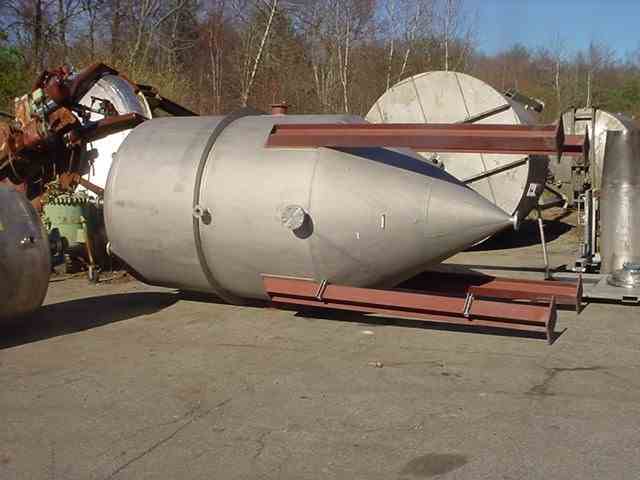

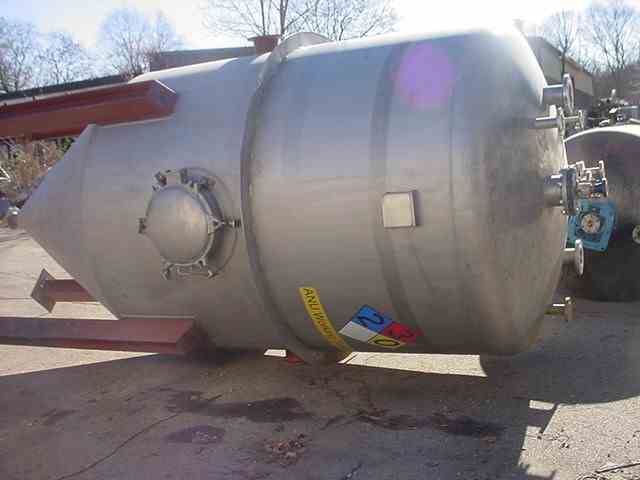

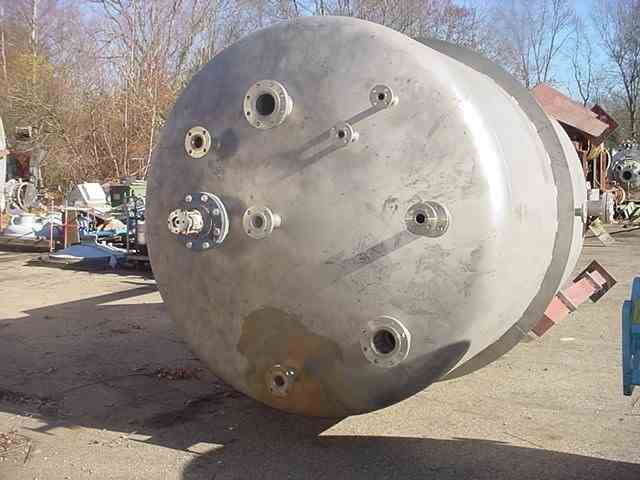

Used 2850 gallon 304-SS Cone bottom Pressure Tank.

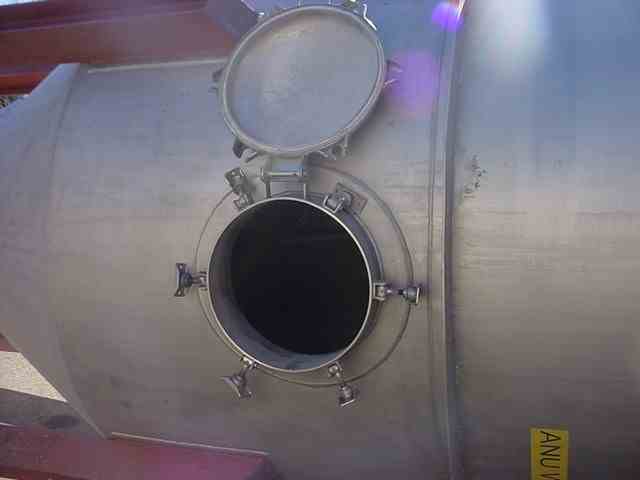

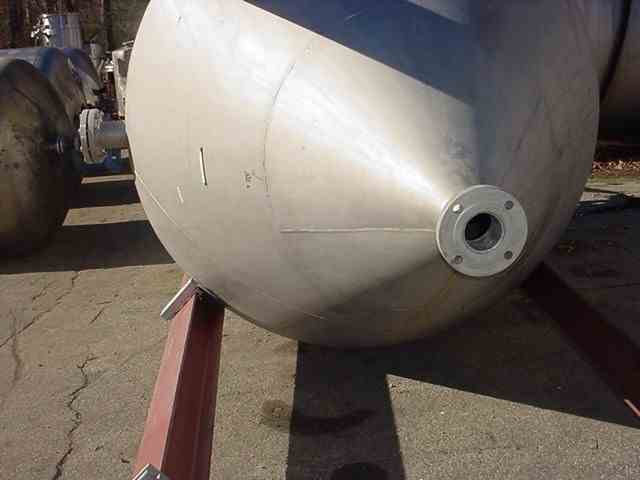

Rated for Full Vacuum/50 psi @ 200 deg. F. 80" diameter x 8'; straight side + 66" bottom cone & dished top. 18" side manway, 3" bottom center outlet, 2" top center inlet. (3) additional 2", (2) 1" and (2) 4" top inlets. 6" top inlet for an offset agitator. 4" side outlet, 1.5"side inlet

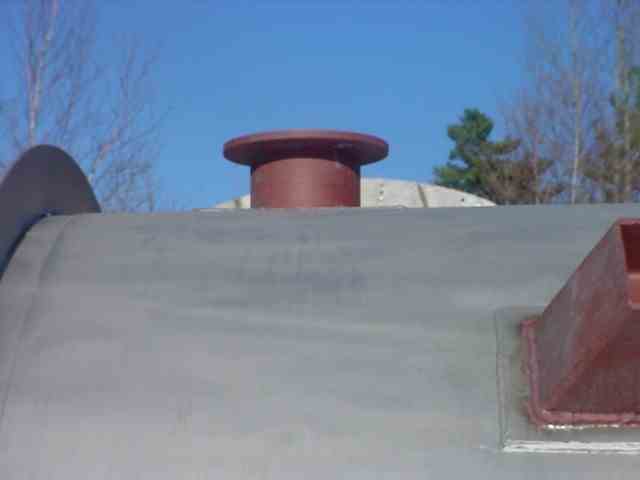

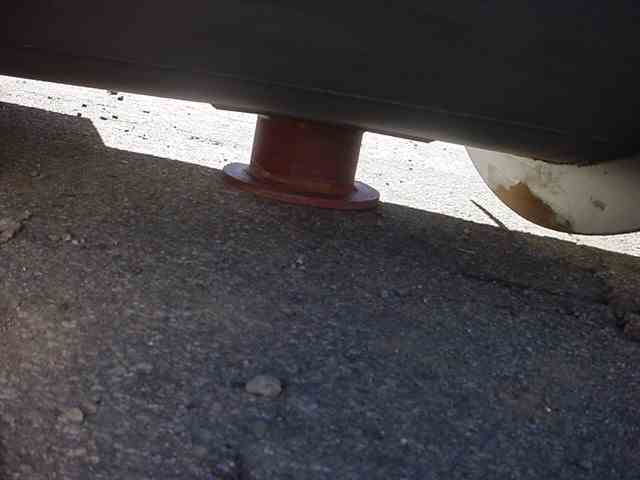

(2) approx. 6" fittings on both sides painted flanges.
Has" outside ring, side manway sticks out 8.5" and legs extend 5.5" on side. Overall height is 205" to top flange, bottom outtlet is 20" off ground.

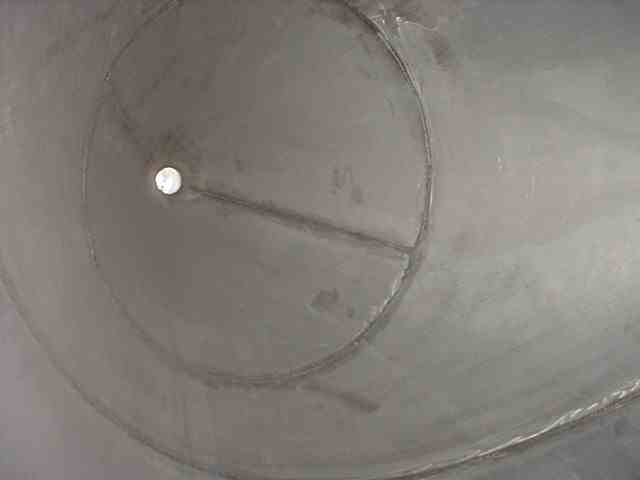

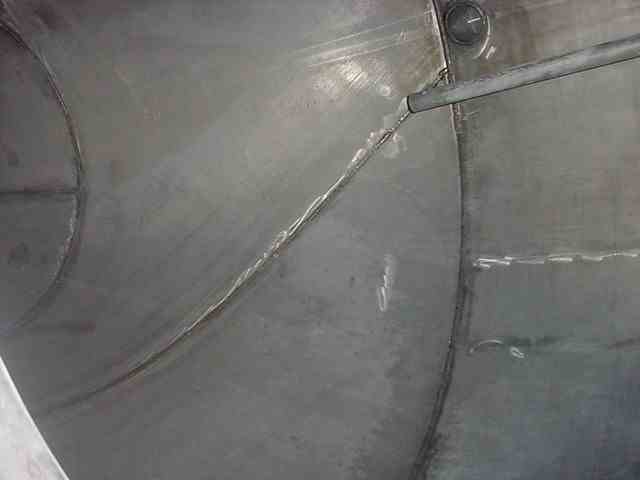

Very clean inside. Mfg by RAS Process Equipment no. 04249501, year 2005, National Board 1587. (Qty - 2 anvailable)
