6 " Dia Trost T-15 Micronizer
Other Views - click image for larger view
6 " Dia Trost T-15 Micronizer 6 " Dia Trost T-15 Micronizer 6 " Dia Trost T-15 Micronizer 6 " Dia Trost T-15 Micronizer

6 " dia trost t-15 micronizer

Stock # 12754
Sold
Capacity 6 " Dia

Overview

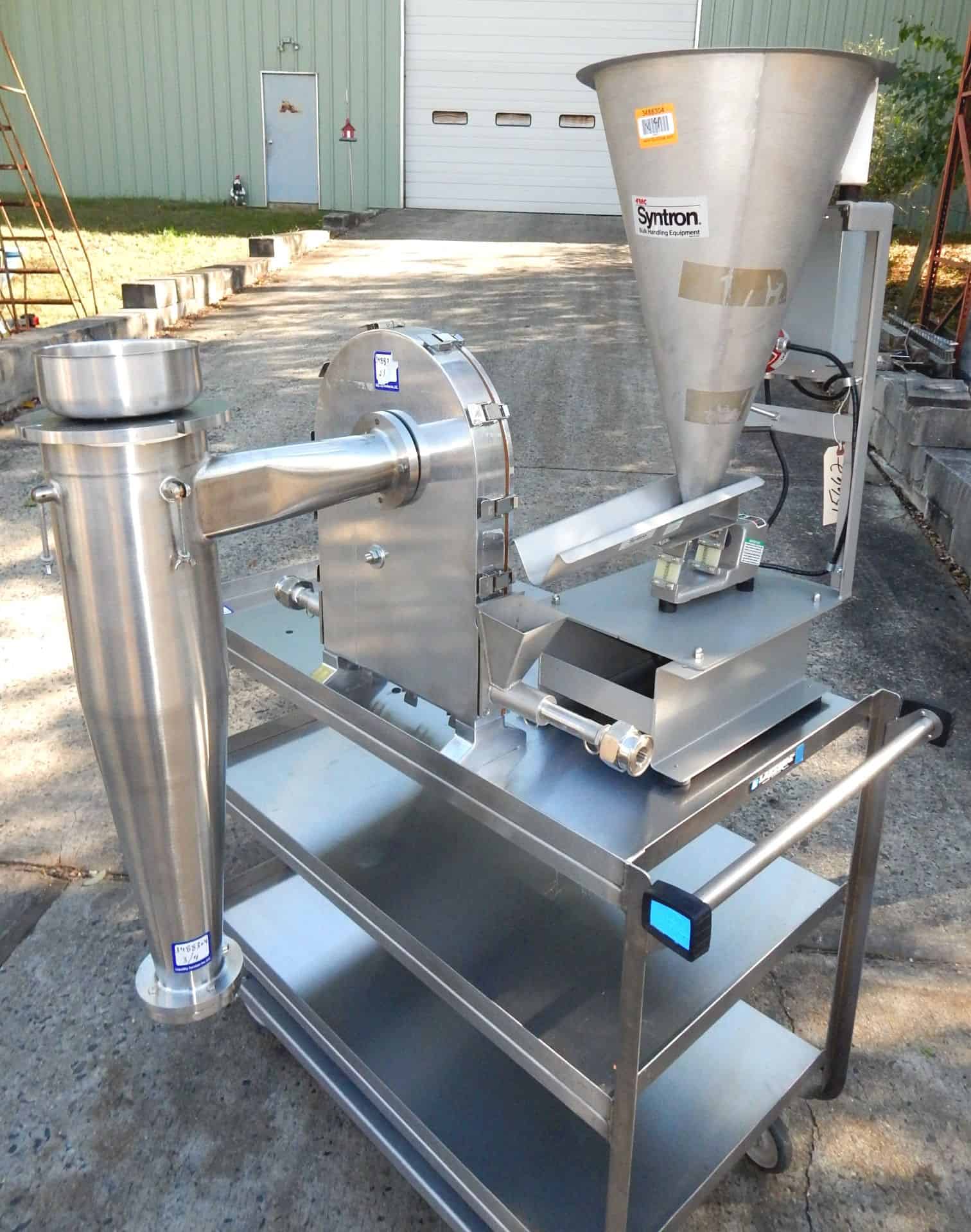

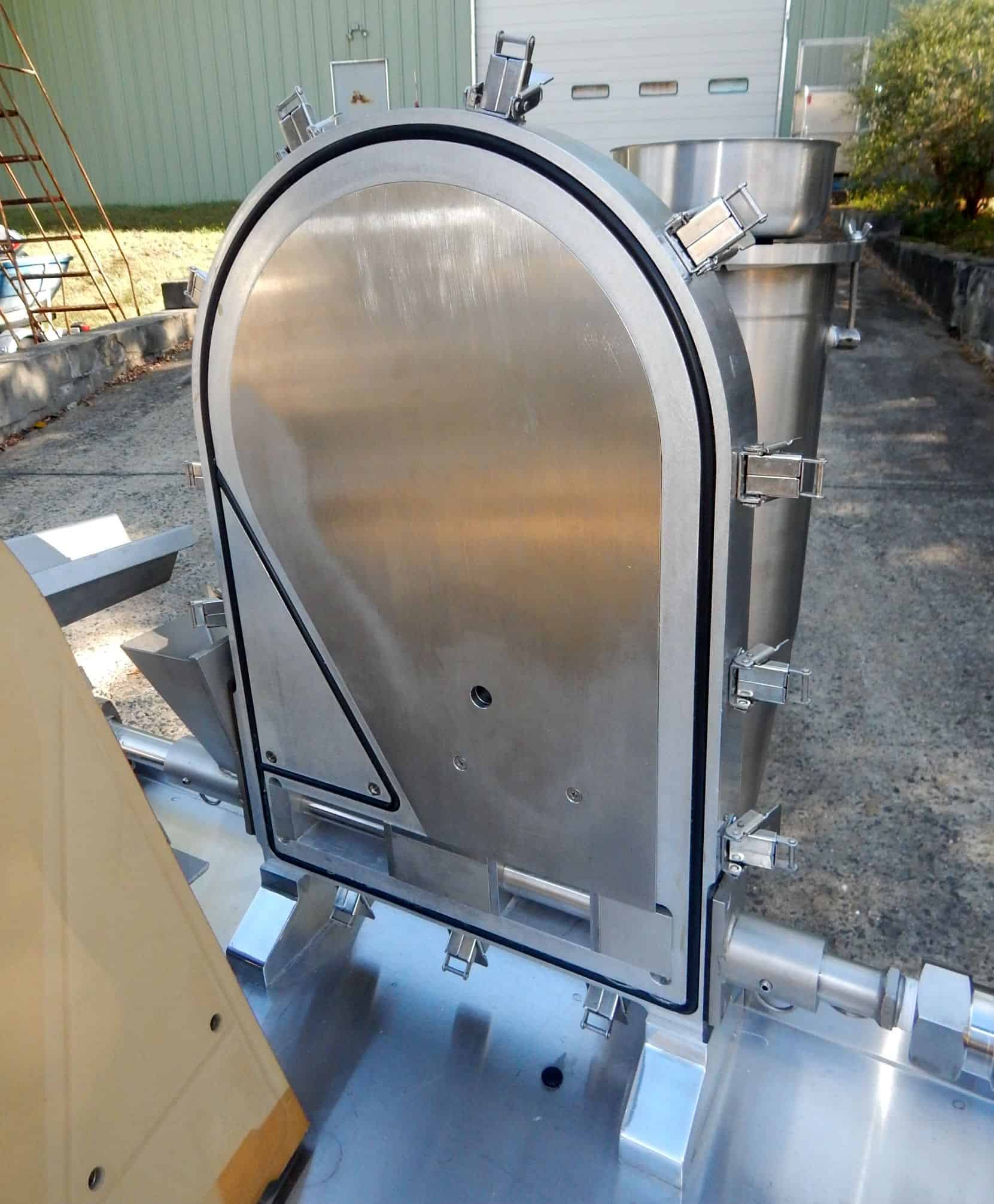

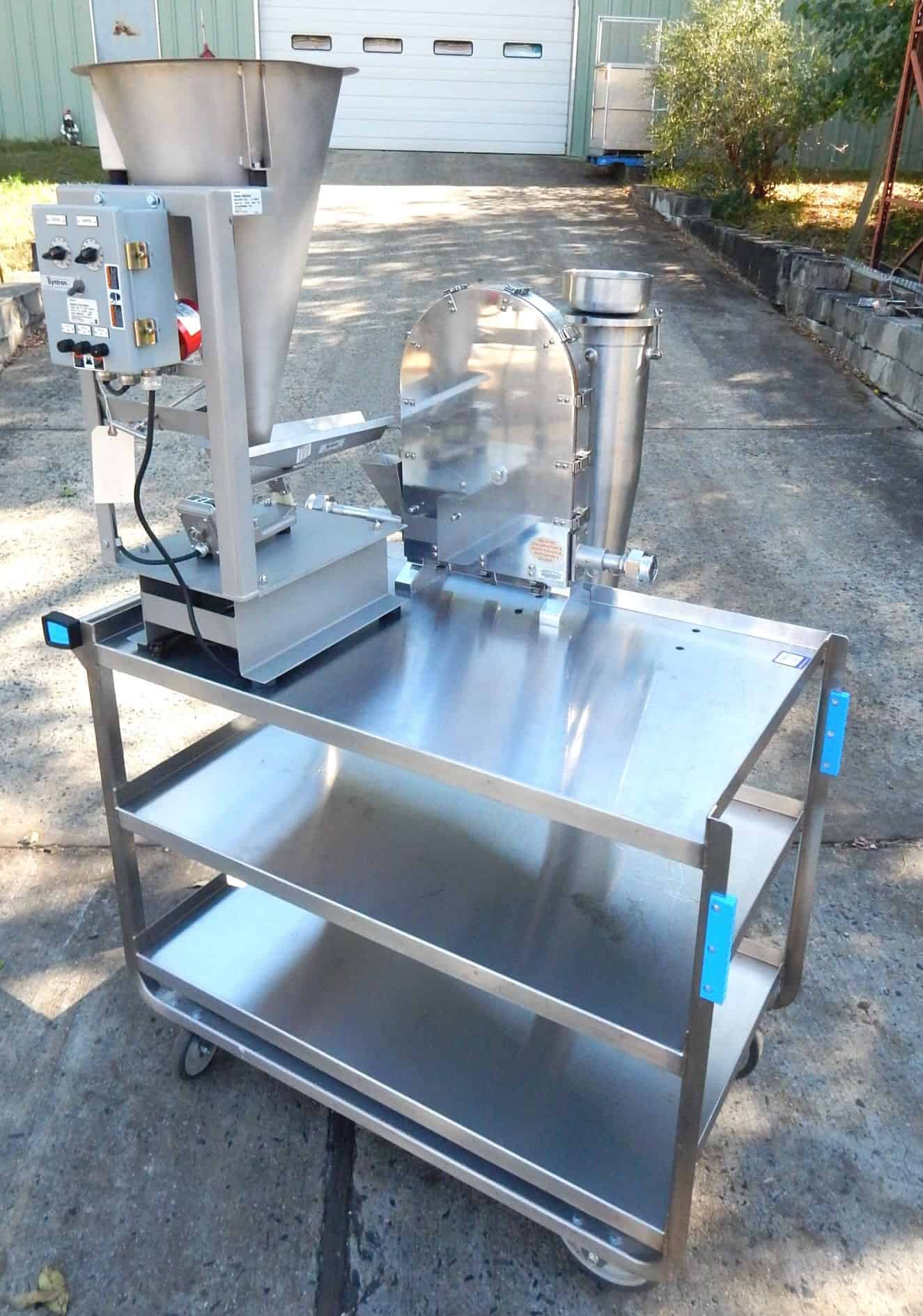

Used Trost air impact pulverizer (jet mill) Model T-15, serial # N/A. Features all stainless steel pharmaceutical grade contact parts with urethane lined mill, .75 cubic foot stainless steel conical feed hopper with manually adjustable flow and side mounted vibrator to 16" long "v" bottom pan feed as unitized unit by FMC Syntron Model FMT0-C3/4, 115 volt/1 phase controller includes hopper and feeder vibrator controls unitized in frame with vibration dampening table feet, discharge cyclone, manufacturer recommendations require 1/8 particle feed size or smaller, 1 to 250 lbs./hour capacity rate with average being 10 to 50 lbs./hour, requires 60, 80 and 100 scfm compressed to 100 psig, mount in stainless steel portable cart with multiple shelves 24" wide x 48" long x 36" high. Previous use: Pharmaceutical.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Trost
Model
T-15
Material
SS
Capacity
6 " Dia
Category
