100 HP CPM 75C Pellet Mill
Other Views - click image for larger view
100 HP CPM 75C Pellet Mill 100 HP CPM 75C Pellet Mill 100 HP CPM 75C Pellet Mill 100 HP CPM 75C Pellet Mill 100 HP CPM 75C Pellet Mill

100 hp cpm 75c pellet mill

Stock # 11248
Sold
Capacity 100 HP

Overview

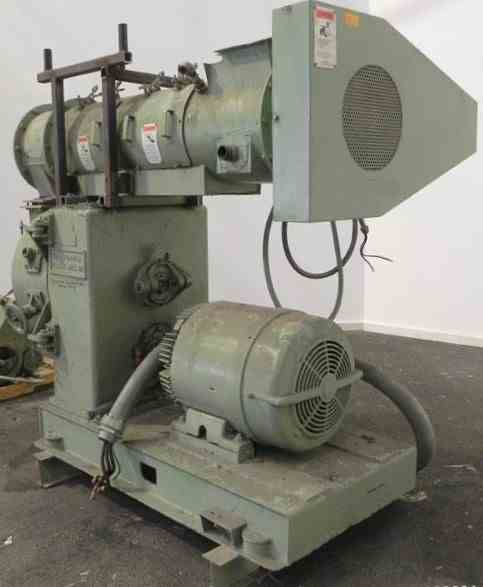

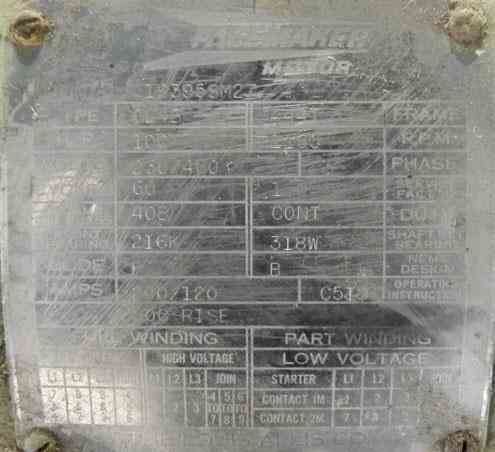

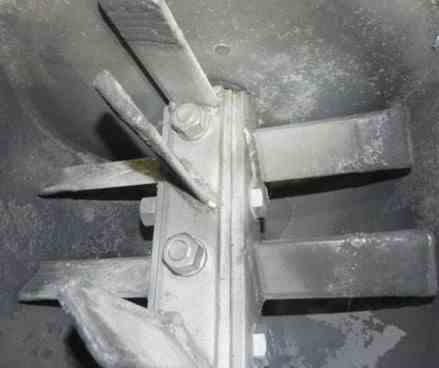

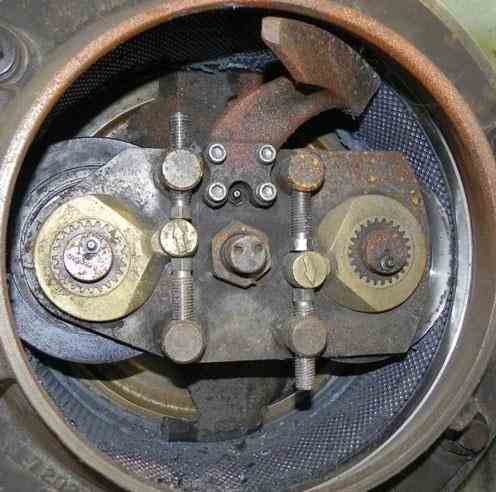

Used California Pellet Mills Century Series Pellet Mill, Model 75C, Carbon Steel. (2) Approximate 7-1/2"dia x 4-1/2 face rollers, 16" diameter x 5" deep die with approximately 1/8 diameter holes. Mill driven by a 100 hp, 3/60/230/460 volt, 1185 rpm motor. Top mounted conditioning feeder with breaker bars, driven by a 20 HP,3/60/208-220/440 volt, 1770 rpm motor. Carbon steel hinged front door with discharge chute. Includes a front door 3/4hp screw feeder. Mounted on a common base.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
CPM
Model
75C
Material
Carbon Steel
Capacity
100 HP
Category
Subcategory
