300 Gal Pressure Vessel
Other Views - click image for larger view
300 Gal Pressure Vessel

300 gal pressure vessel

Stock # 9315
Sold
Capacity 300 Gal

Overview

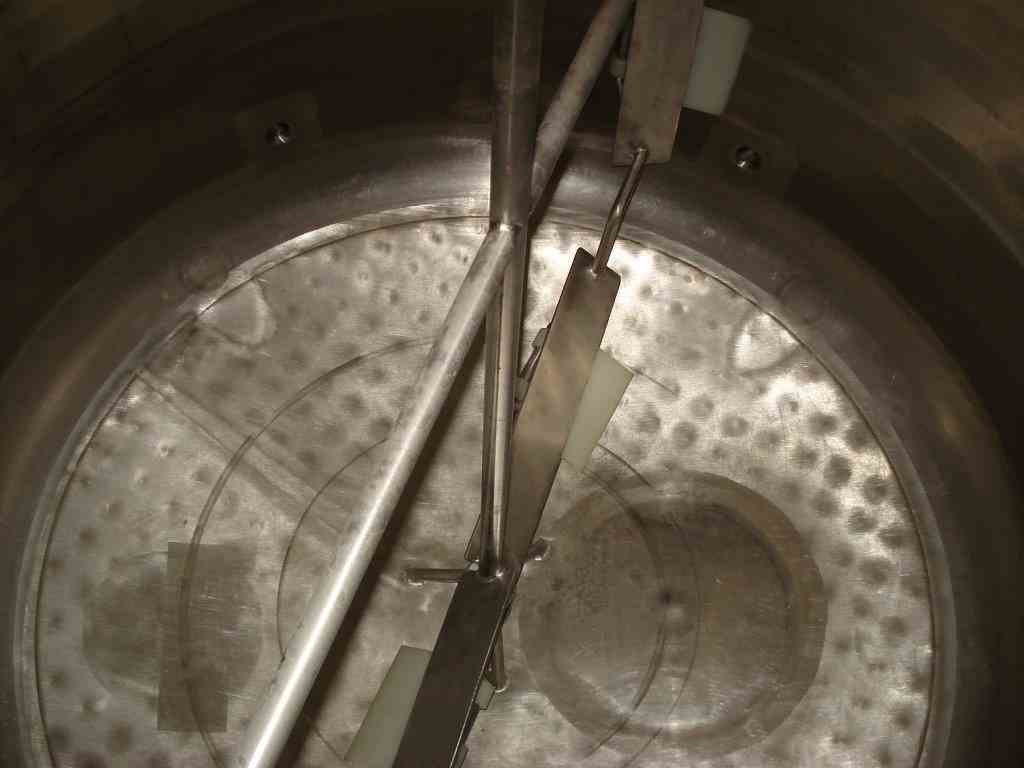

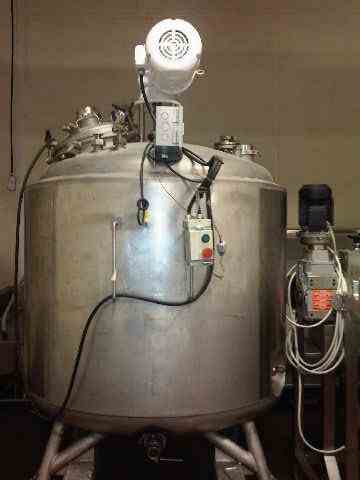

Reconditioned Precision 300 Gallon Stainless Steel Pressure Wall Processing Kettle. Serial #6247/2. Features: Dome Top – with bolt down pressure manway, dished bottom, 316 Stainless Steel product contact surface, bottom and side scrape agitation to tank with nylon scrapers, 40 PSI internal pressure rating @ 350°F. Comes with a bridge top mounted to a 3 HP drive with gearbox (rated at 20 RPM). Also includes a 2B Exterior finish, #4 Interior finish, 2” no foam fill & 2” clamp outlet, mounted on a Stainless Steel frame with heavy duty castors. Agitation to have nylon bushing and spring assembly with “O” ring to hold vacuum up to 15 PSI. O/D: 52” diameter.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Unknown
Model
Material
Unknown
Capacity
300 Gal
Subcategory
