2099 Sq Ft Tranter Spiral Heat Exchanger
Other Views - click image for larger view
2099 Sq Ft Tranter Spiral Heat Exchanger

2099 sq ft tranter spiral heat exchanger

Stock # 12728
Capacity 2099 Sq Ft

Overview

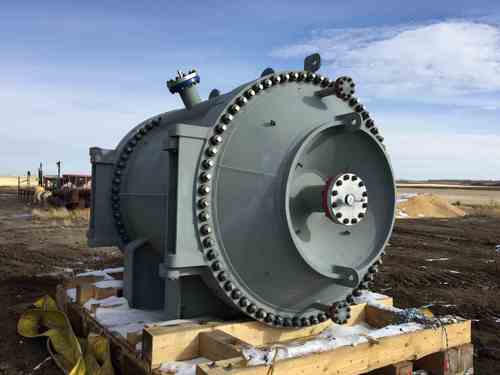

Unused Tranter GmbH Horizontal Spiral Heat Exchanger, Total Surface Area 194.9 Square Meter (2098 Square Feet), Carbon Steel. Shell & coil each rated Full Vacuum/24.5 bar (355 psi) at -45 to 200 degrees C. (-49 to 392 F.). Volume shell 2.225 cubic meters (587 gallon), volume coil 1.260 cubic meters (332 gallon). Openings hot side (2) 8”, (2) 2”, cold side (2) 6”, (2) 2”. Mounted on (2) saddles. Unit is nitrogen purged. National Board# 243, serial# S-2858/2.19, CRN# W5688.2, built 2015.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Tranter
Model
not applicable
Material
Unknown
Capacity
2099 Sq Ft
Subcategory
