3010 Sq Ft Titanium Limited (Canada) Titanium Shell & Tube Heat Exchanger

3010 Sq Ft Titanium Limited (Canada)  Titanium Shell & Tube Heat Exchanger

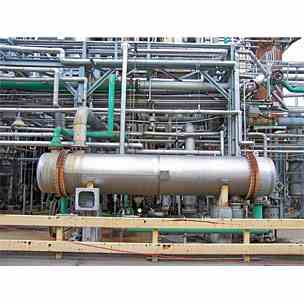

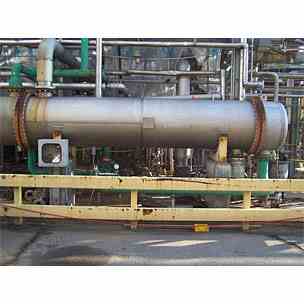

Other Views - click image for larger view
3010 Sq Ft Titanium Limited (Canada)  Titanium Shell & Tube Heat Exchanger
STOCK# 3076
Capacity 3010 Sq Ft
Description

Used 3,010 Sq. Ft. Titanium Limited (Canada) Titanium (SB-265) Horizontal One-Pass Shell & Tube Heat Exchanger. Shell rated 50psi @ 250F; Tube side rated 75psi @ 250F. (728)- 1"OD Tubes Shell: 41.375" (1050 mm) dia. x 15' 10" (4826 mm) length. 304L-SS Heads (Approx 20' AOL). Serial # 50098; National Board # 102; Built 1992. Estimated Weight: 9,700 lbs

Specifications
Manufacturer Titanium Limited (Canada)
Model#
Material Titanium
Capacity 3010 Sq Ft
