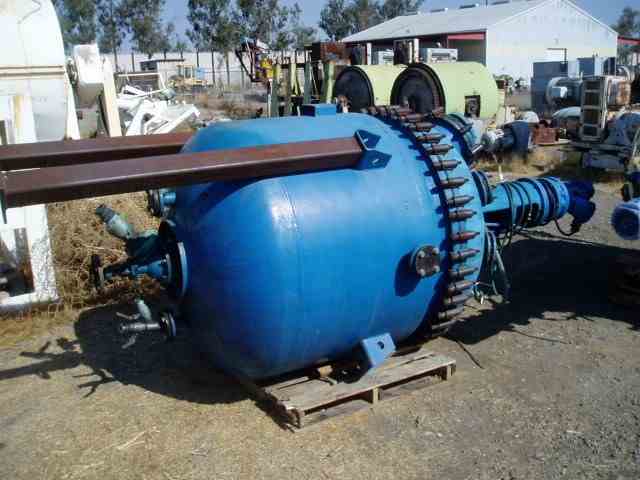

265 Gal Liaoyang Pharmaceutical Machinery Co. Glass Lined Reactor
Used approximately 265 gallon (1,000 liter) capacity, Glass Lined Reactor manufactured by Liaoyang Pharmaceutical Machinery Co., Built 2008. 4'6" diameter x 5'6" high, dished top & bottom, internally rated for 30 PSI (0.2 MPa) at 180 degrees Celsius, jacketed for 87 PSI (0.6 MPa) at 180 degrees Celsius. Complete with 3-blade retreating impeller agitation, driven by 3 kW, 440 volt, 1700 RPM motor. Top openings include 16" x 11" oval manway and (6) 5" diameter Inlets. Bottom head includes 6" diameter center bottom outlet, tapered to 1-1/2" with valve. Appears to be in good condition.
