200 Gal Pfaudler Glass Lined Reactor
Other Views - click image for larger view
200 Gal Pfaudler Glass Lined Reactor 200 Gal Pfaudler Glass Lined Reactor

200 gal pfaudler glass lined reactor

Stock # 20422
Sold
Capacity 200 Gal

Overview

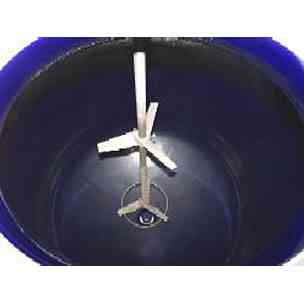

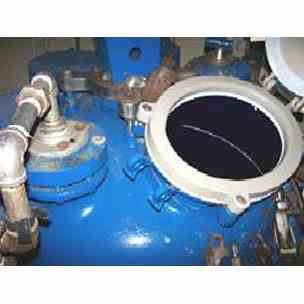

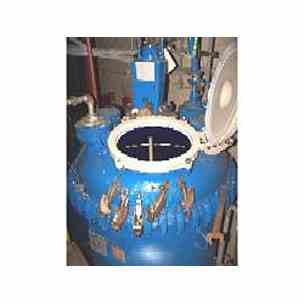

200 gallon Pfaudler # 5015 glass lined vacuum receiver. Model E40200100. 40" diameter x 45 1/2" deep. Internal pressure 100 FV @ 450 degrees F. Clamped dish top, welded dished bottom head. NB# 44889. Top fittings: (4) 4", (1) 6", (1) 4 3/8" agitator nozzle, and a 12" x 16" manway. 3" center bottom nozzle. Equipped with stainless steel agitator driven by a lightnin pneumatic model# X5AC33 mixer.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Pfaudler
Model
E40200100
Material
Unknown
Capacity
200 Gal
Category
