1050 Gal Mueller Stainless Steel Reactor
Other Views - click image for larger view
1050 Gal Mueller Stainless Steel Reactor

1050 gal mueller stainless steel reactor

Stock # 8076
Sold
Capacity 1050 Gal

Overview

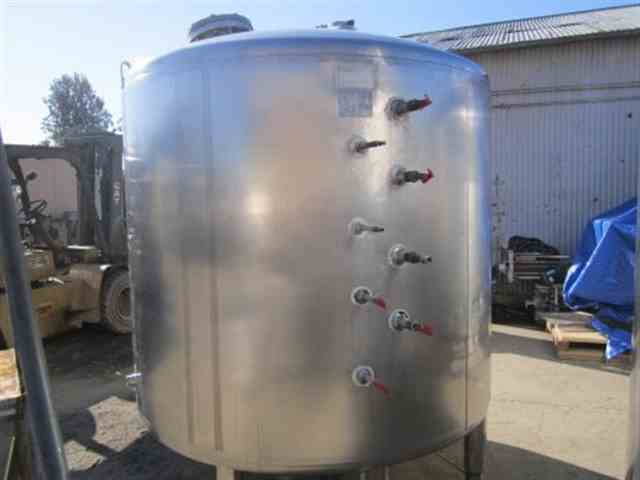

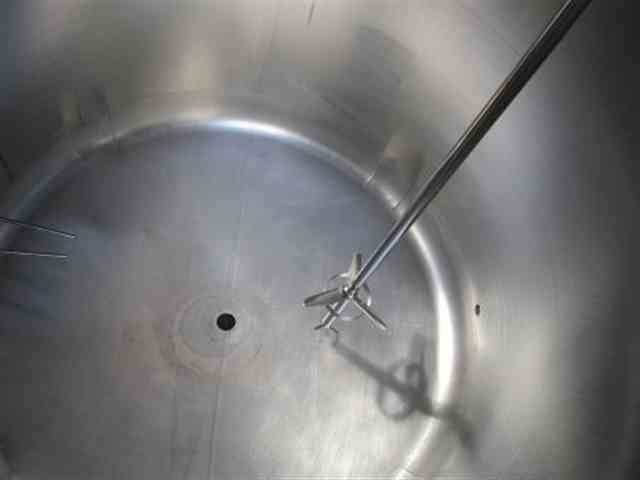

One used 1050 gallon Mueller Reactor, stainless steel, 6' dia. x 5' straight side with dish top and bottom, 5 zone jacket rated 138 PSI @ 300 deg F, vessel rated 25 PSI @ 300 deg F internal. Agitated with 2 HP Lightnin Mixer, 1.5 " dia. shaft and 3 blade propeller, 18" diam. top manway, 2" center bottom discharge, built 1981, serial P2942-2, NB 8352.
