200 Gal Lee Kettle
Other Views - click image for larger view
200 Gal Lee Kettle

200 gal lee kettle

Stock # 7171
Sold
Capacity 200 Gal

Overview

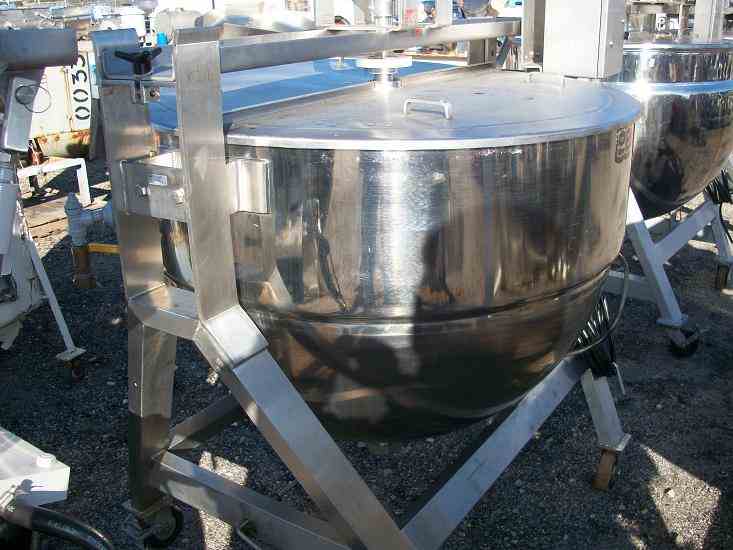

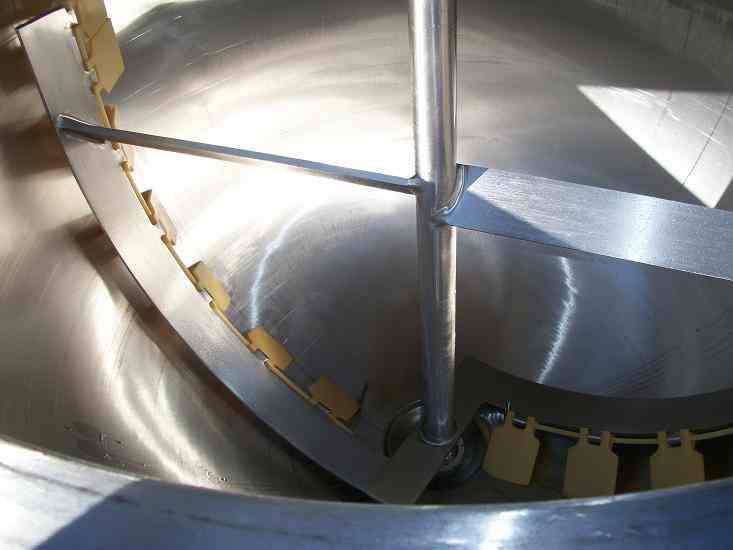

Used Lee Industries single motion 200 gallon 316 stainless steel jacketed kettle. Model 200 D5T. 48" diameter X 36" deep. Internal rated ATMOS. Jacket rated 40 PSI @ 287 degrees F. S/N A-9679C-3, National Board# 3519. 2 piece hinged lid, Hemispherical bottom with 3" center bottom drain with 3" stainless steel ball valve. Scrapper style agitator driven thru a 2HP Eurodrive with 1725 input RPM, ratio 68.7, Torque 7260 #/in. Equipped with pneumatic tilt out agitator. Mounted on stainless steel cart with casters. Has Allen Bradley controls.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Lee
Model
Material
Unknown
Capacity
200 Gal
