9300 Gal Gaston County  Stainless Steel Reactor
Other Views - click image for larger view
9300 Gal Gaston County  Stainless Steel Reactor 9300 Gal Gaston County  Stainless Steel Reactor 9300 Gal Gaston County  Stainless Steel Reactor 9300 Gal Gaston County  Stainless Steel Reactor 9300 Gal Gaston County  Stainless Steel Reactor 9300 Gal Gaston County  Stainless Steel Reactor 9300 Gal Gaston County  Stainless Steel Reactor 9300 Gal Gaston County  Stainless Steel Reactor 9300 Gal Gaston County  Stainless Steel Reactor

9300 gal gaston county stainless steel reactor

Stock # 4471
Sold
Capacity 9300 Gal

Overview

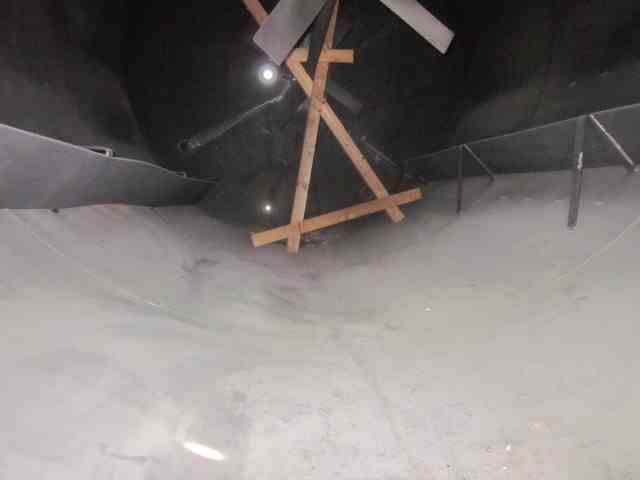

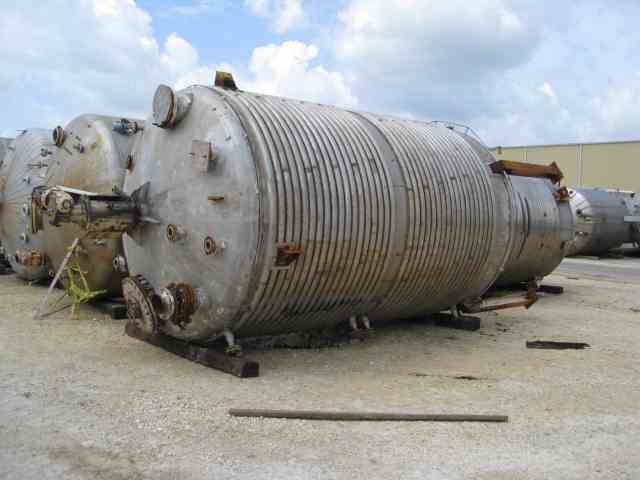

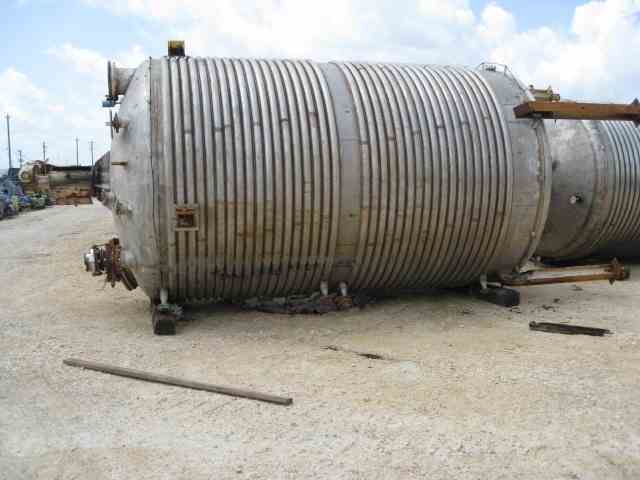

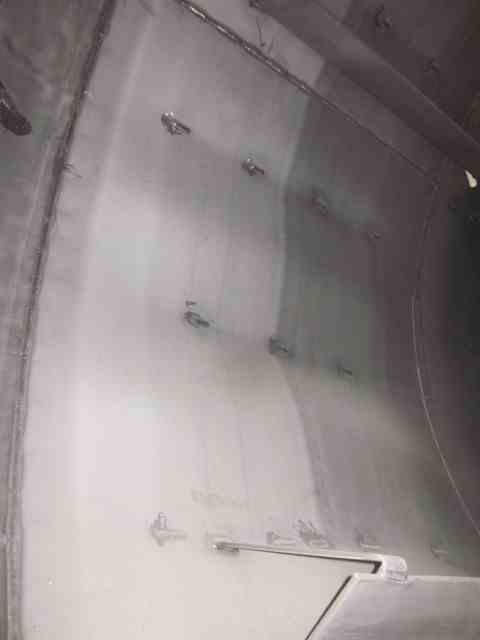

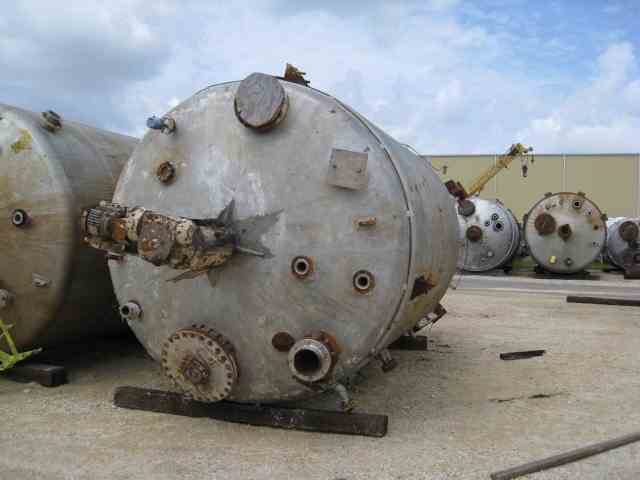

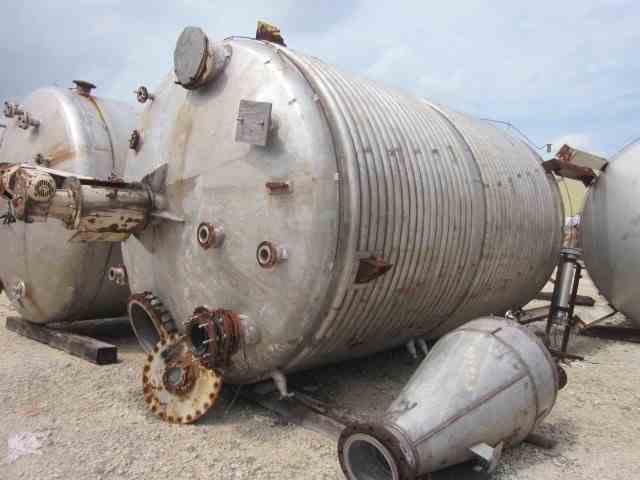

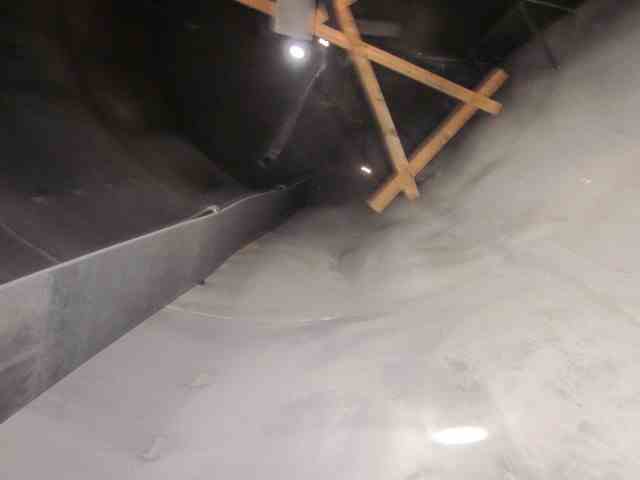

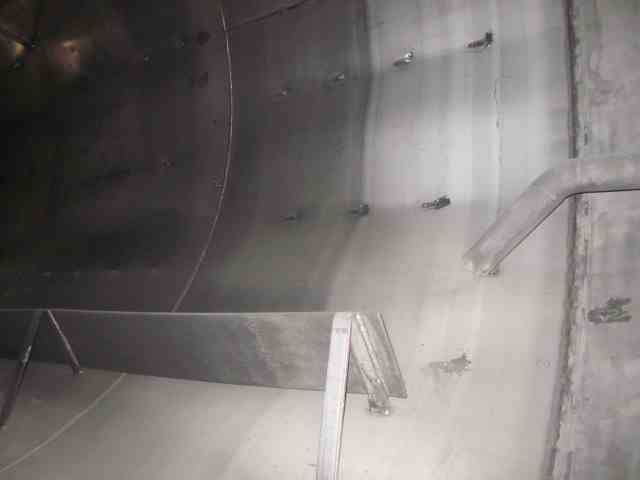

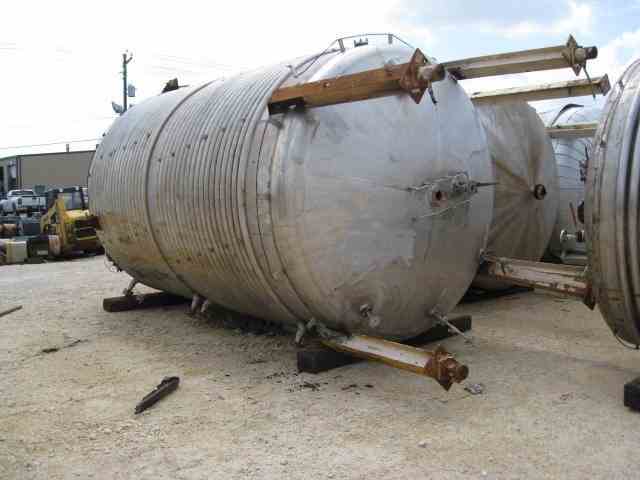

USED 9300 GALLON STAINLESS STEEL REACTOR/ORGANIC AGITATED TANK; DISHED TOP AND BOTTOM. 10' DIA X 15'6" STRAIGHT SIDE. 304L-SS SHELL (5/16" THICK) RATED 15 PSI @ 212 DEG.F; 304L-SS HALF PIPE COIL JACKET RATED 100 PSI @ 212 DEG F. (4) INTERNAL SIDE WALL BAFFLES. 3 HP AGITATOR - 1725 RPM; 3/4 HP - 870 RPM; 460 VOLTS; 3" DIA. SHAFT. MFG. BY GASTON COUNTY - 1981. 316-SS BOTTOM HEAD MFG. BY CURTIS KELLY IN 1996. MOUNTED ON (4) CS LEGS.
