2000 Gal Pfaudler Glass Lined Reactor
Other Views - click image for larger view

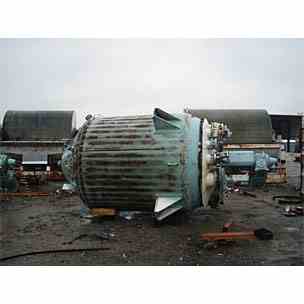

2000 Gal Pfaudler Glass Lined Reactor

2000 gal pfaudler glass lined reactor

Stock # 3979
Sold
Capacity 2000 Gal

Overview

Used Pfaudler K Series 2,000 Gallon Glass Lined Reactor. Internal rated 100 PSI/FV @ -20°F to 450°F OR 59 PSI/FV @ -40°F TO 450°F. Jacket rated 90/90 PSI/FV @ -20°F TO 450°F OR 49/49 PSI/FV @ -40°F TO 450°F. Dished top & cone bottom heads. 5 RW Drive, 18:1 final output. 15 HP, 3 PH, 60 HZ, 230-460 Volt XP Motor. Cryolock 4-blade Agitator with tickler anchor. 3.5" Shaft. H Baffle. White 9129 Glass with Blue CAallibration lines. (1) 12", (1) 10", (5) 4", (2) 3" Top nozzles, Agitator opening, and 18" Manway with sight glass and assist. 4" CBO. Built 1993.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Pfaudler
Model
Material
Unknown
Capacity
2000 Gal
Category
