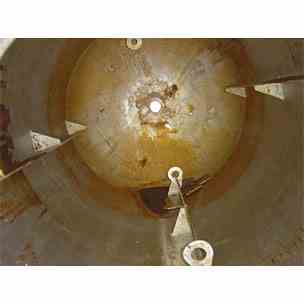

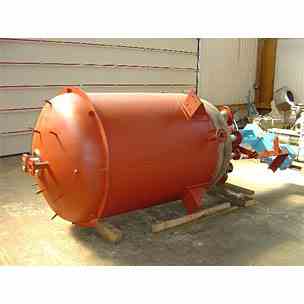

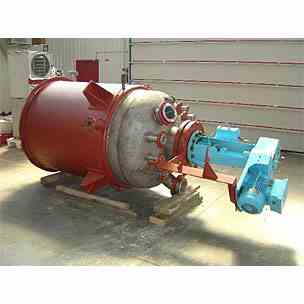

2000 liter (525 Gal) capacity Hastelloy C-276 vertical reactor. Unit measures 1224mm (approx 48") internal diameter x 1710mm (approx 67.5") straight side. Internal rated 10BAR (150PSI)/FV design pressure at -10 to 305 degrees C. Mild steel external heating jacket rated 7BAR (105 PSI)/FV at -10 to 330 degrees C. Unit includes Chemineer model 1-HTN-5 drive with 4 Blade pitched impellor driven by a 5.5KW (7.5HP), 1440RPM, 415V flameproof electric motor giving a output speed of 157RPM. Mounted on (4) side support lugs. Full design data and technical drawings available. Built 1996.
