1500 Gal Feldmeier Stainless Steel Reactor
Other Views - click image for larger view
1500 Gal Feldmeier Stainless Steel Reactor 1500 Gal Feldmeier Stainless Steel Reactor 1500 Gal Feldmeier Stainless Steel Reactor 1500 Gal Feldmeier Stainless Steel Reactor 1500 Gal Feldmeier Stainless Steel Reactor 1500 Gal Feldmeier Stainless Steel Reactor

1500 gal feldmeier stainless steel reactor

Stock # 3874
Sold
Capacity 1500 Gal

Overview

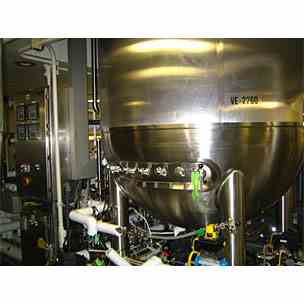

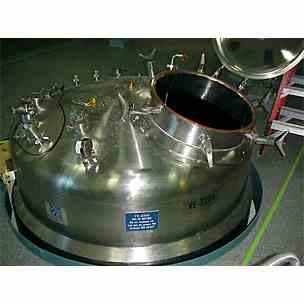

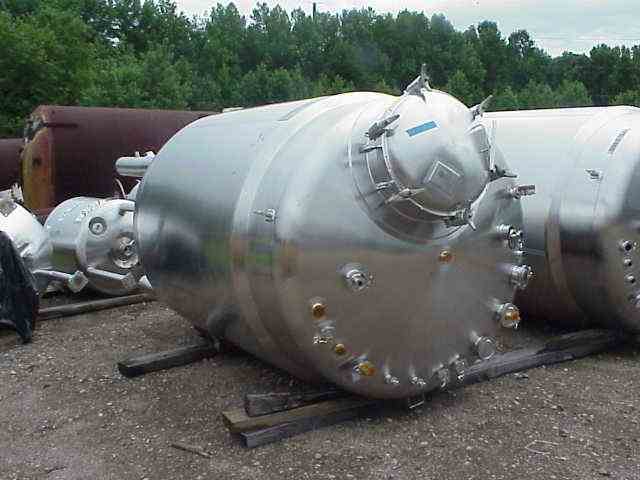

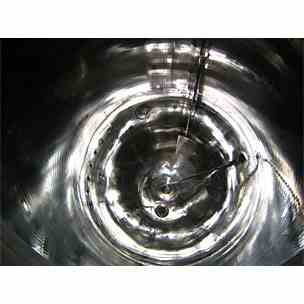

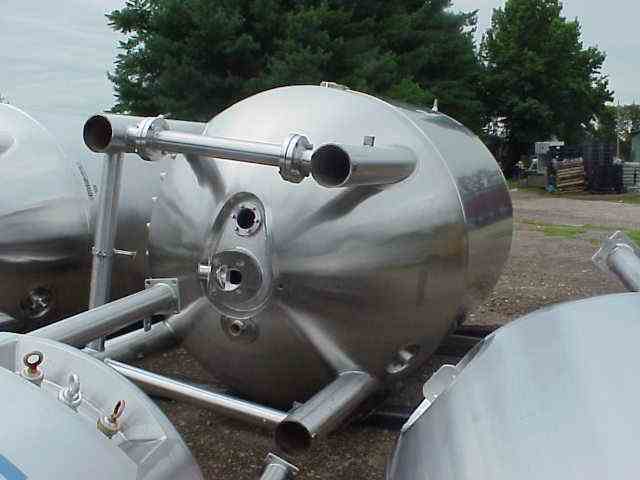

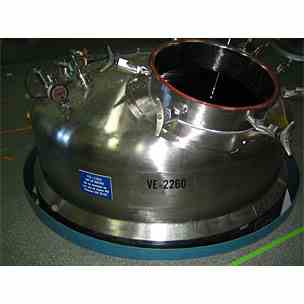

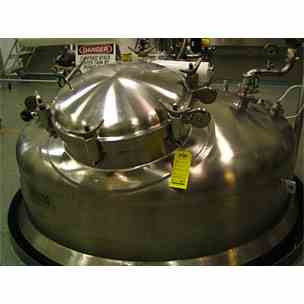

Approximately 1500 Gallon (5000 liter working volume) Feldmeier Sanitary Stainless Steel Agitated, Jacketed Reactor (or Fermentor). Rated 45psi/FV @ 350F internal; 150psi/FV @ 350 F on the jacket. Built 2005. Serial # E-334-95, National Board # 4388. Has Bottom mounted mixer drive, but paddles not available. Motor is Reliance, 5 HP, 230/460 V, 12/6 Amp, 184T frame into Flender mixer gear rated 1800 RPMi, 56.26 RPMo (32:1 ratio), s/n 480 507 044-001-4, Type CFA 100 Approx. 80"Dia x 160"H. Approx. weight - 6000#. Previous Use: Hold Harvest Tank.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Feldmeier
Model
Not Applicable
Material
316L
Capacity
1500 Gal
