1500 Gal Feldmeier Stainless Steel Reactor
Other Views - click image for larger view
1500 Gal Feldmeier Stainless Steel Reactor 1500 Gal Feldmeier Stainless Steel Reactor 1500 Gal Feldmeier Stainless Steel Reactor

1500 gal feldmeier stainless steel reactor

Stock # 3873
Sold
Capacity 1500 Gal

Overview

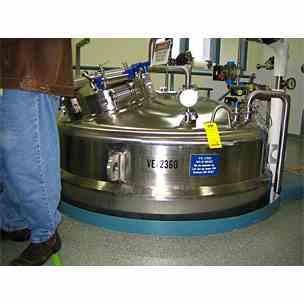

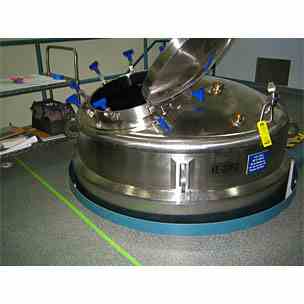

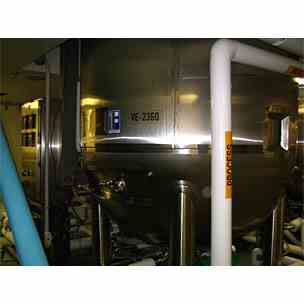

Used Approximately 1500 Gallon (5000 liter working volume) Feldmeier Sanitary 316L Stainless Steel Agitated, Jacketed Reactor (or Fermentor). Rated 45 PSI/FV @ 350 deg F internal; 150 PSI @ 350 deg F on the jacket. Dished heads. 66" dia x 66" straight side. Top nozzles: 24" manway, (2) 4", (2) 3", (3) 2", (2) 1-1/2"; 3" CBO. Built 2005. Serial # S62805, National Board # 3306. Bottom Mounted Mixer by Bonfiglioli Riduttori, 1.3 KW (approx 1.75 HP) 440V. Leg mounted. OAL: Approx. 80" Dia x 160" H. Approx. weight - 6000#. Previous Use: Hold Harvest Tank.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Feldmeier
Model
N/A
Material
Stainless Steel
Capacity
1500 Gal
