2000 Gal Walker Kettle
Other Views - click image for larger view
2000 Gal Walker Kettle

2000 gal walker kettle

Stock # 3617
Sold
Capacity 2000 Gal

Overview

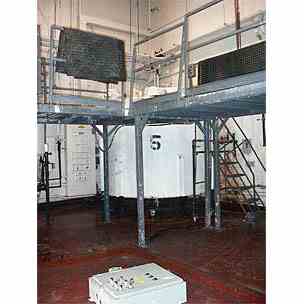

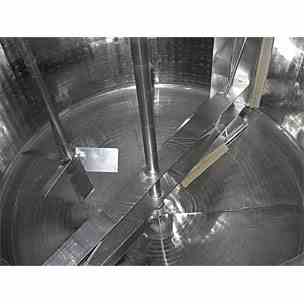

Used vertical 2,000 gallon SS jacketed scraper agitated process vessel built by Walker. Unit is 96" dia. by 78" straight side depth. Featuring dished bottom with center bottom approximately 8" off the floor. Overall height is 11'. Centerline scraper agitation driven by a 10 HP (3/60/220-440V) motor. Secondary turbine type agitator (6 blade) driven by a 15 HP (3/60/220-440V) motor. Vessel is approximately 3/4 jacketed straight side and bottom. Dual 1/3 covers hang on bridge. Insulated and sheathed in painted steel outer protective skin. Still in service. V.F.D. controls may be available for scraper agitator. Client reports 30 PSI jacket.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Walker
Model
Material
Unknown
Capacity
2000 Gal

For additional information, visit the Resource Center
