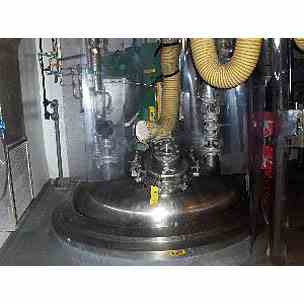

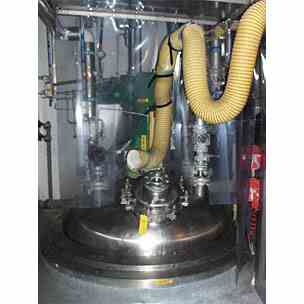

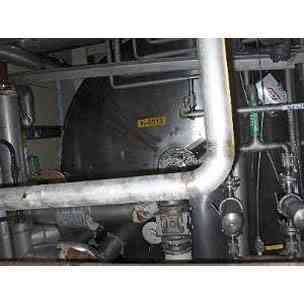

1500 gallon Baeuerle and Morris reactor, Hastelloy C276, vertical. 72" diameter x 78" straight side. Dished top and bottom. Internal rated FV/50 psi at 320 deg F, jacket rated 75 psi at 350 deg F. Top entering Lightnin agitator, model 72-S-15. Shaft with a 4 blade disc turbine, driven by a 7.5 hp, 3/60/230/460 volt XP motor. (4) Side wall baffles. Openings: top (8) 2", 3", 4", 6", 8", 20" manway with a sightglass in the cover; approximate 3" center bottom outlet. Mounted on 4 legs. Built 1984.
