50 Gal Mueller Stainless Steel Reactor
Other Views - click image for larger view
50 Gal Mueller Stainless Steel Reactor 50 Gal Mueller Stainless Steel Reactor

50 gal mueller stainless steel reactor

Stock # 2227
Sold
Capacity 50 Gal

Overview

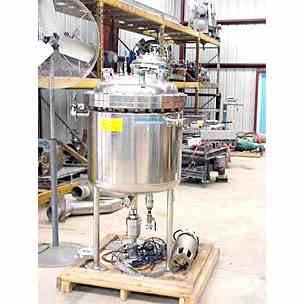

Used 50 Gallon Mueller Reactor, 316L stainless steel construction, s/n: P7930-4. 24" diameter x 24" straight side, dished top and bottom, rated 80 PSI/FV internal at 324° F, SS jacket rated 80 PSI at 324° F. Sanitary construction, leg mounted. 1/3 HP, model N33GDS-33SCR, 90V Lightnin Agitator. Top openings: (4) - 1” sanitary, (1) - 4” inspection port w/ sight glass, (1) – ½” instrumentation port, (1) – 8” Agitator port. Includes spray ball, load cells and Tri-Clamp actuated center bottom outlet.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Mueller
Model
N33GDS-33SCR
Material
Stainless Steel
Capacity
50 Gal
Category

For additional information, visit the Resource Center
