Fumaric Acid Plant - 4,500 TPY
Stock # 226
Capacity 4,500 TPY
Products Fumaric Acid
Sold

Overview

Used 4,500 TPY Fumaric Acid Plant. In once-through-operation, refined molten maleic anhydride is dissolved in fresh process water to form 40% solution of maleic acid. The acid solution is then fed,simultaneously with catalyst and process air, to a reaction vessel which contains a preheated heel from the previous batch. The product fumaric acid solids are separated from the water solution in centrifuge. The plant contains facilities for bagging, drumming, car or truck loading of the solids product.

Major Equipment

This 4,500 TPY Fumaric Acid Plant comes with the following production equipment:
Feed tank

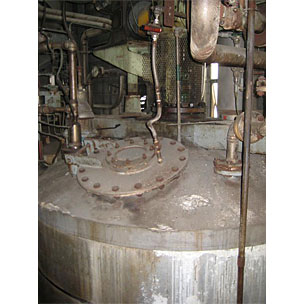

Reaction vessel
Agitator
Slurry tank
Centrifuge
Tray dryer
Conveyor system
Storage tank
Sieve
Bagging, drumming, car or truck loading system
Mother liquor tank
Share
SPECIFICATIONS RESOURCES
Year Build
1900
Year Shut
2000
Capacity
4,500 TPY
