Alkyl Ketene Dimer (AKD) Wax Plant - 12,000 TPY

Alkyl Ketene Dimer (AKD) Wax Plant - 12,000 TPY

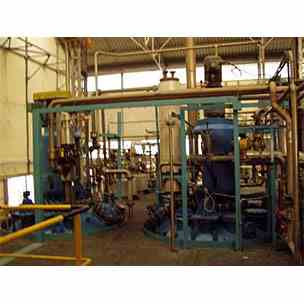

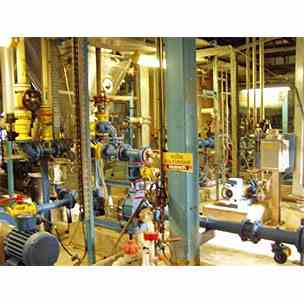

Other Views - click image for larger view
Alkyl Ketene Dimer (AKD) Wax Plant - 12,000 TPY Alkyl Ketene Dimer (AKD) Wax Plant - 12,000 TPY Alkyl Ketene Dimer (AKD) Wax Plant - 12,000 TPY Alkyl Ketene Dimer (AKD) Wax Plant - 12,000 TPY Alkyl Ketene Dimer (AKD) Wax Plant - 12,000 TPY Alkyl Ketene Dimer (AKD) Wax Plant - 12,000 TPY Alkyl Ketene Dimer (AKD) Wax Plant - 12,000 TPY Alkyl Ketene Dimer (AKD) Wax Plant - 12,000 TPY Alkyl Ketene Dimer (AKD) Wax Plant - 12,000 TPY Alkyl Ketene Dimer (AKD) Wax Plant - 12,000 TPY Alkyl Ketene Dimer (AKD) Wax Plant - 12,000 TPY Alkyl Ketene Dimer (AKD) Wax Plant - 12,000 TPY
Description

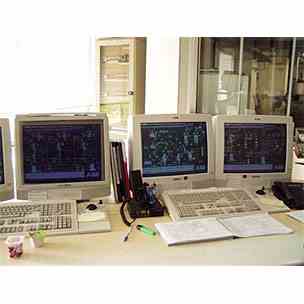

Phoenix Equipment Corporation has this used AKD Wax plant immediately available. Fatty acid chloride, triethylamine and toluene are subject to a batch reaction in a glass lined vessel at 65°C. The corresponding ketene and then the diketene (AKD wax) are formed. The reaction mass is decanted and then extracted. The extract is then steam vacuumed distilled. This is a fine tuned totally recovering process. Toluene as well as unreacted triethylamine are recovered in the work up and reintroduced in the next batch. The process is automated (ABB).

Major Equipment

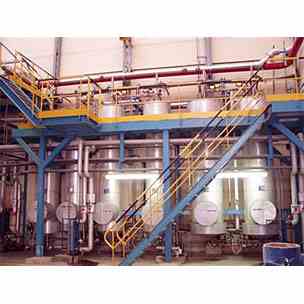

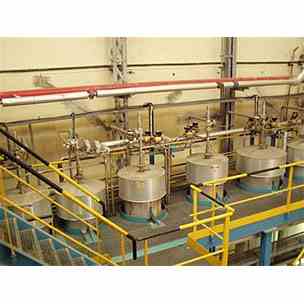

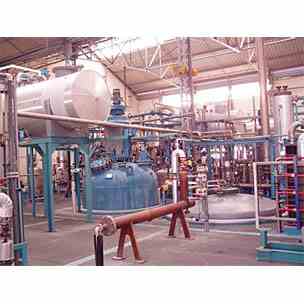

(2) De Dietrich CE12500 Glass Lined Reactors
(1) De Dietrich CE15000 Glass Lined Reactor

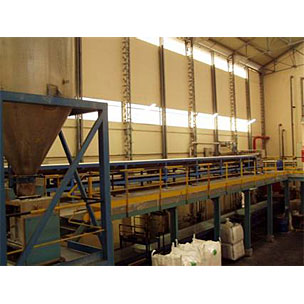

(2) Sandvik Stainless Steel 1,250MM Wide x 17,000MM Long Belt Coolers with Pastillators
(3) 12,000 to 18,000 Liter Decanter Vessels with Stainless Steel Shell and Tube Heat Exchangers
(6) Stainless Steel Molecular Sieves

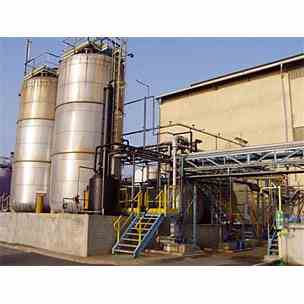

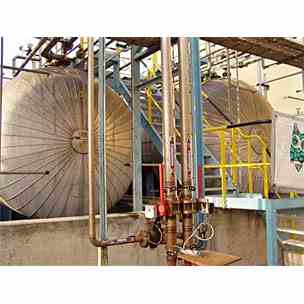

Also, Stainless Steel Storage Tanks, Ranging 32,000 Liters to 55,000 Liters
(1) Raw Material Unloading Station
Products

Alkyl Ketene Dimer
