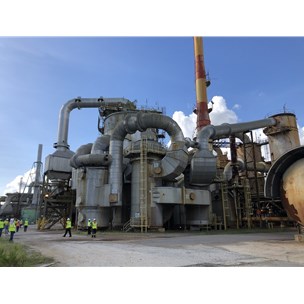

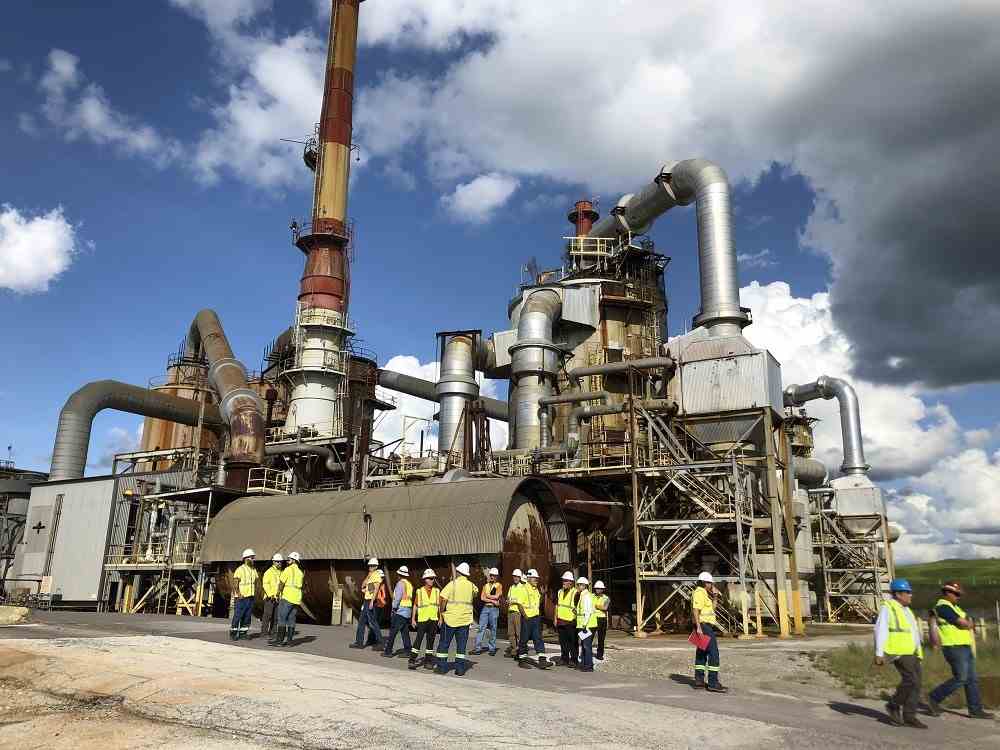

Sulfuric Acid Plant - 2,400 TPD x 2
STOCK# 484
Capacity 2,400 TPD x 2
Description

Used two lines of 2,400 TPD per each (4,800 TPD in total), double absorption, Sulfuric Acid lines designed by MECS, and built in 1973 with upgrades completed by MECS in 1980, 1995, 2002, 2004, and 2013.

Major Equipment
- Molten sulfur tank
- Waste heat boiler #1
- Waste heat boiler #2
- Converter
- Economizer
- Absorbing tower
- Absorbing acid cooler
- Drying tower
- Drying tower cooler
- 98% acid pump tank
- Product cooler
- Oleum tower
- Oleum Pump boot
- Trim cooler
- Elliot EPG-4 steam turbine
- Dilute pump tank
- Deaerator
- Air silencer
- Acid storage tank
- Spare 98% acid pump tank
- Spare absorbing acid cooler
Products

Sulfuric Acid
