Aromatics Plant - 425,000 TPY

Aromatics Plant - 425,000 TPY

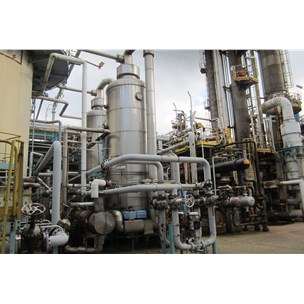

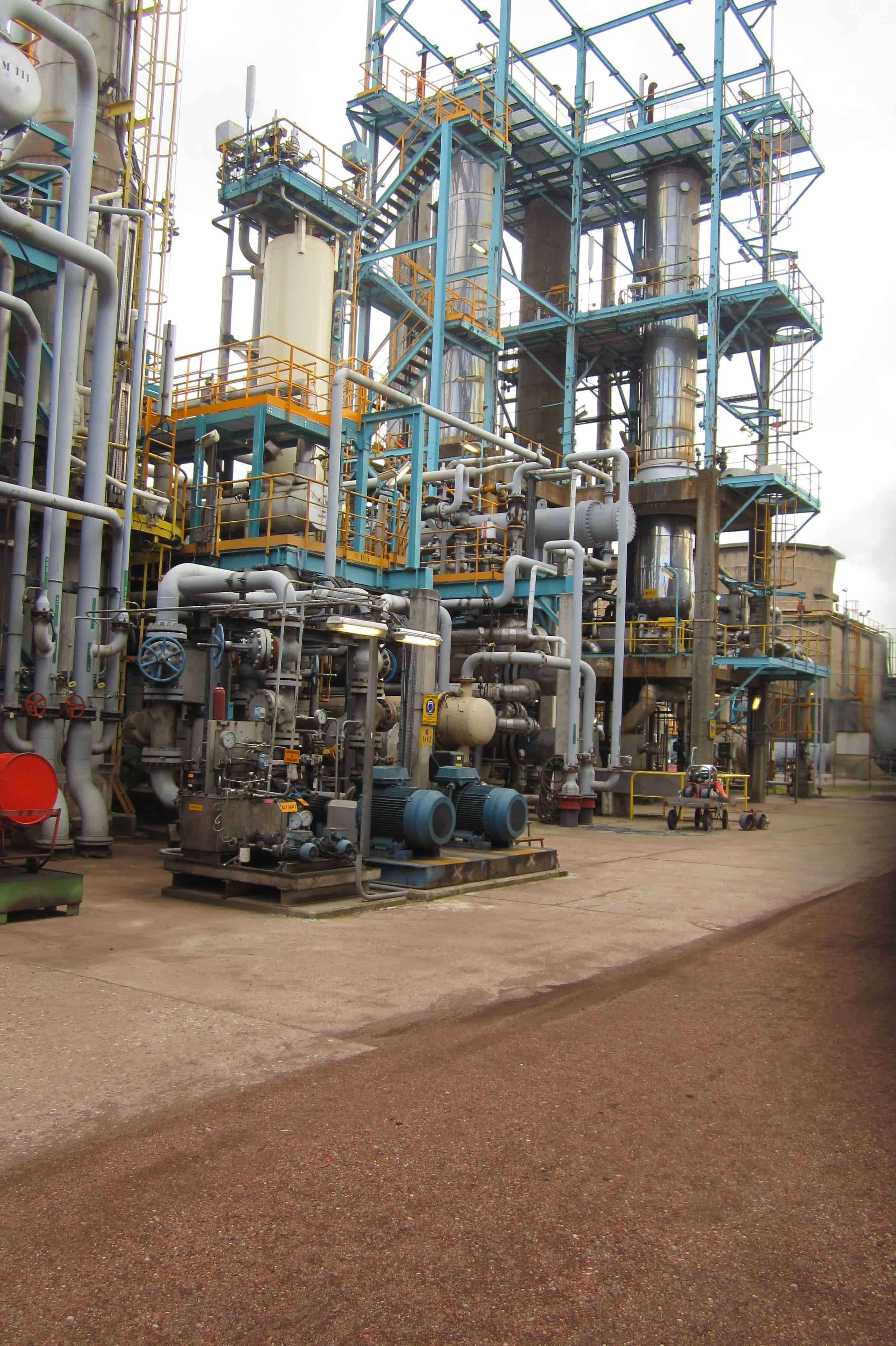

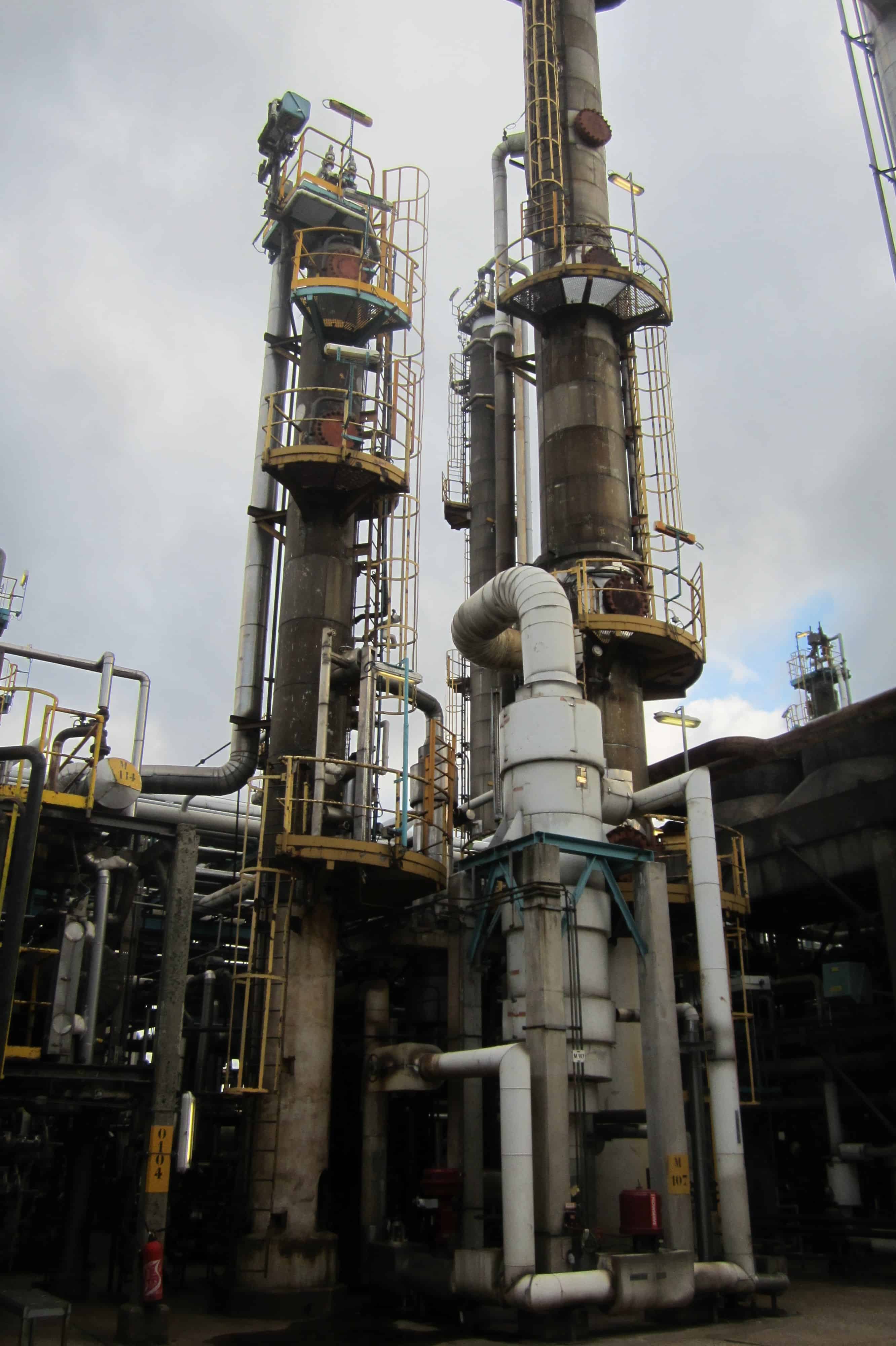

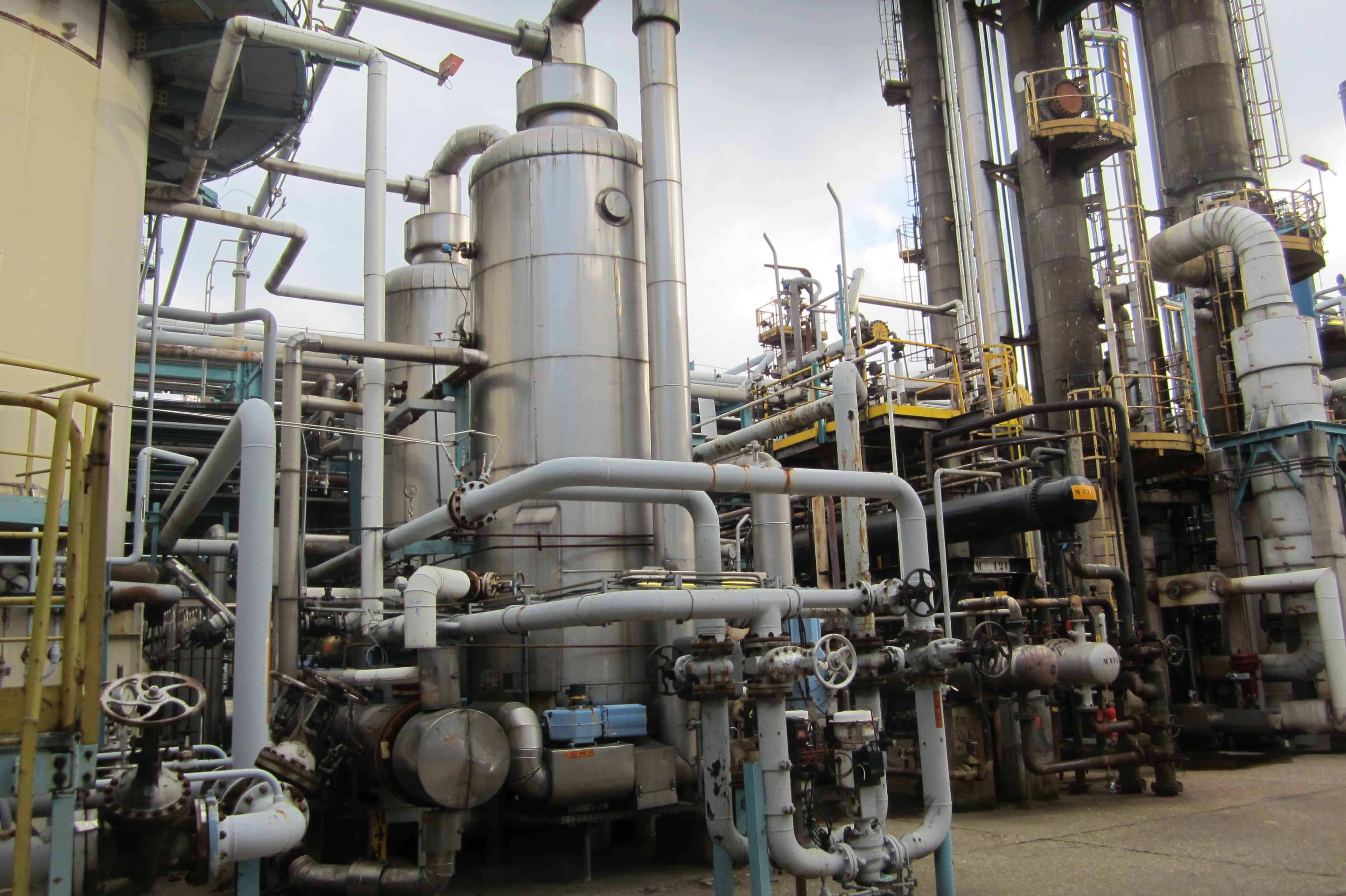

Other Views - click image for larger view
Aromatics Plant - 425,000 TPY Aromatics Plant - 425,000 TPY
STOCK# 398
Capacity
Description

The purpose of this aromatics plant is to produce and clean the benzene from gasoline supplied by the steam cracker and the unit of resins, and to produce C5 cut, C6 raffinate, dopes (mixture of aromatic hydrocarbons from C8 to C11) and flushing oil (mixture of aromatic hydrocarbons from C11 to C14). Raw materials are gasoline (raw, heavy, light, aromatic) and C6/TX cut. The plant includes several process units: (A) Raw gasoline hydrostabilisation and separation by distillation of several components (HDT 100 and HDT 1100 units); (B)Transformation of the toluene and the xylene contained in the TX cut in benzene by hydrodesulfuration and hydrodéalkylation (HDTA unit); (C) Extraction of the benzene contained in the C6 cut (DISTAPEX unit); (D) Unit of compression of the hydrogen.

Major Equipment
Hydro stabilisation reactors
Depentanizer
TX separative distillation column
Dopes separative distillation column
Furnace
Dehexanizer
Hydrodesulfuration reactors
Stabilisation column
Extractive distillation columns
Compressor
Hydrodealkylation reactor
Benzene column
Toluene column
Absorption benzene column
Products

Benzene, C5, C6 raffinate, aromatic hydrocarbons C8 - C11, flushing oil C11 - C14
