Methyl Methacrylate (MMA) Plant - 46,000 TPY

Methyl Methacrylate (MMA) Plant - 46,000 TPY

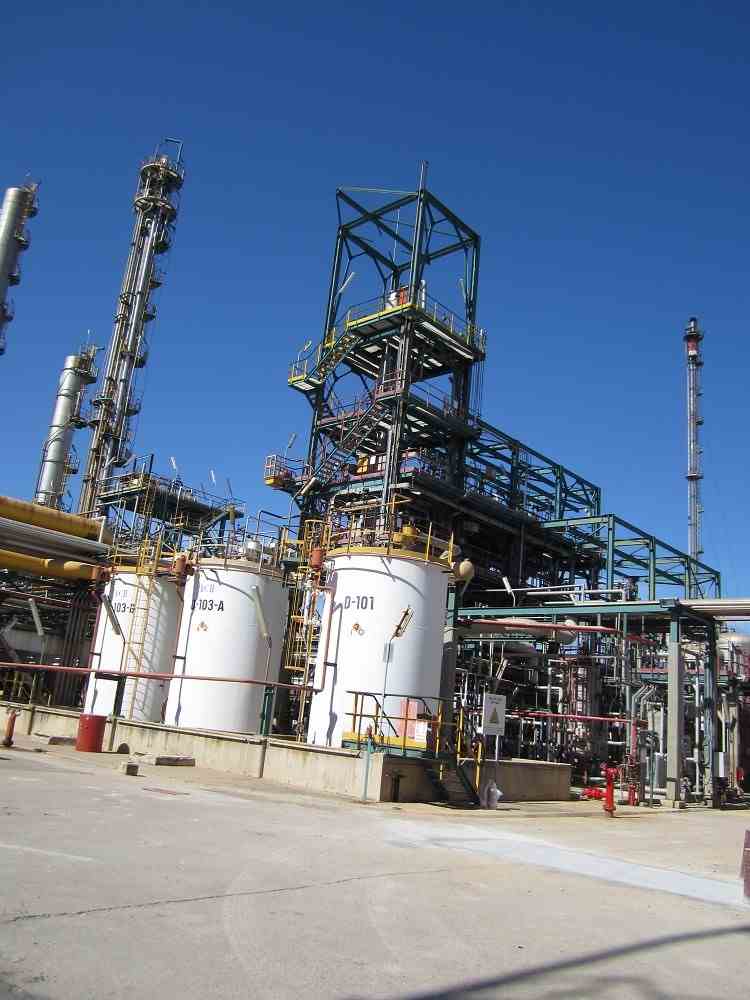

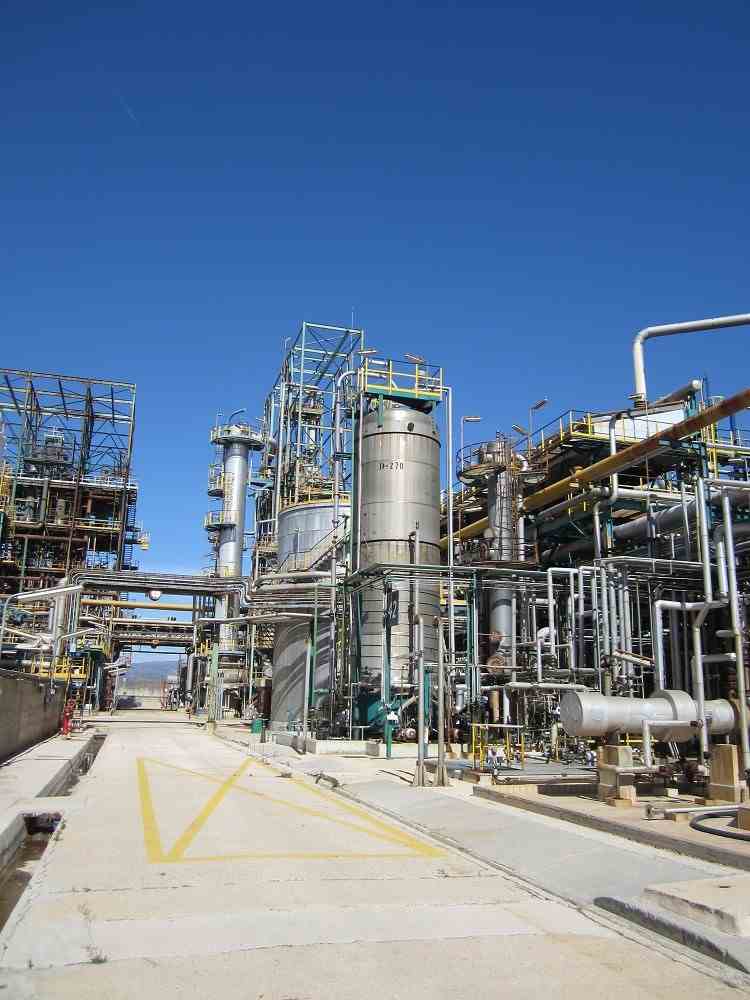

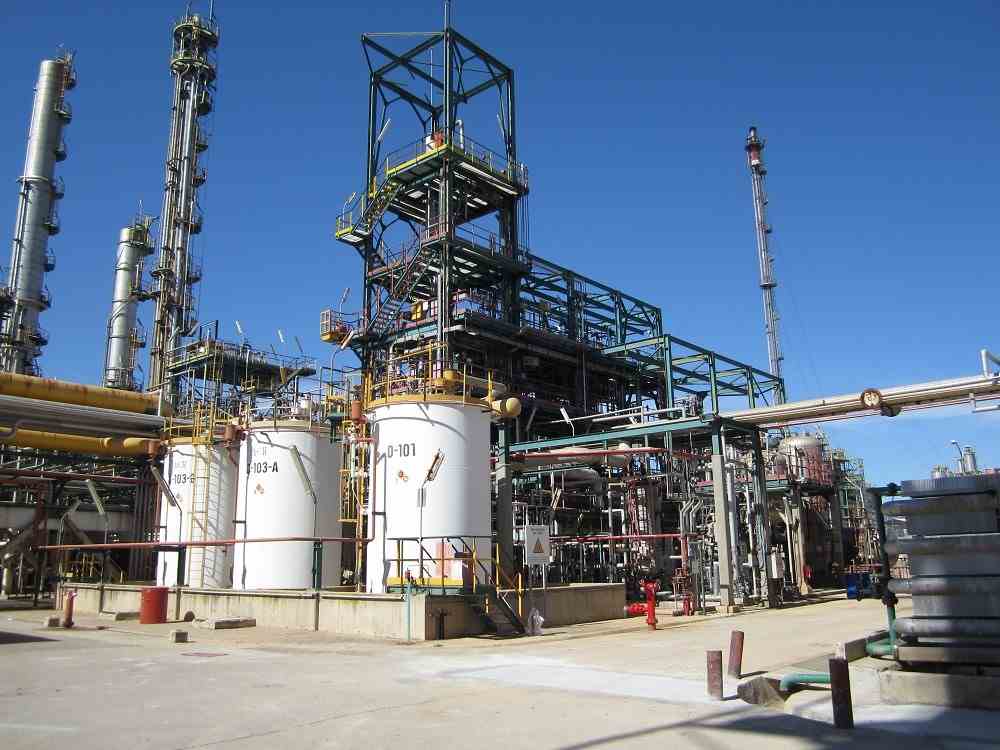

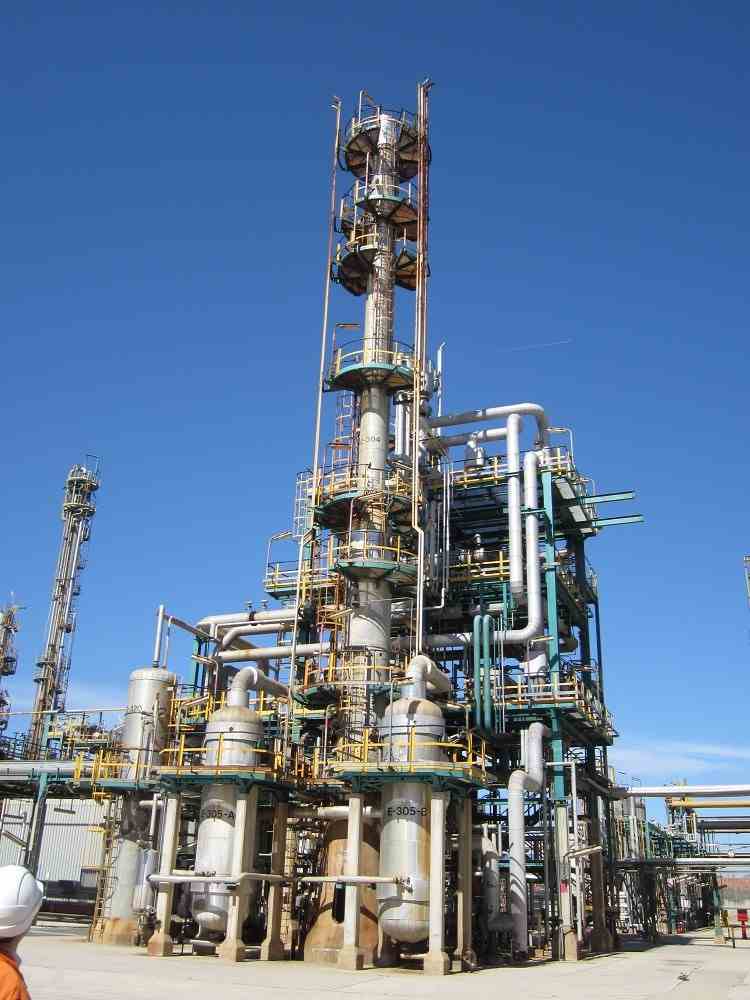

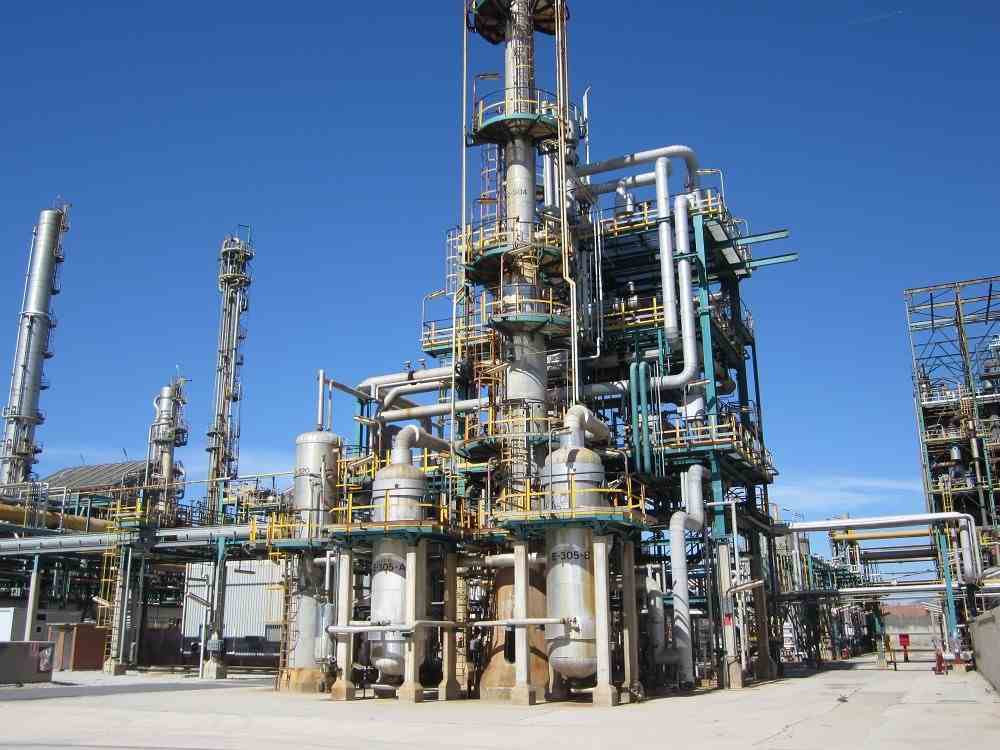

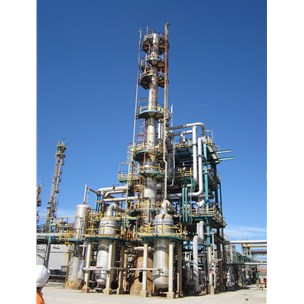

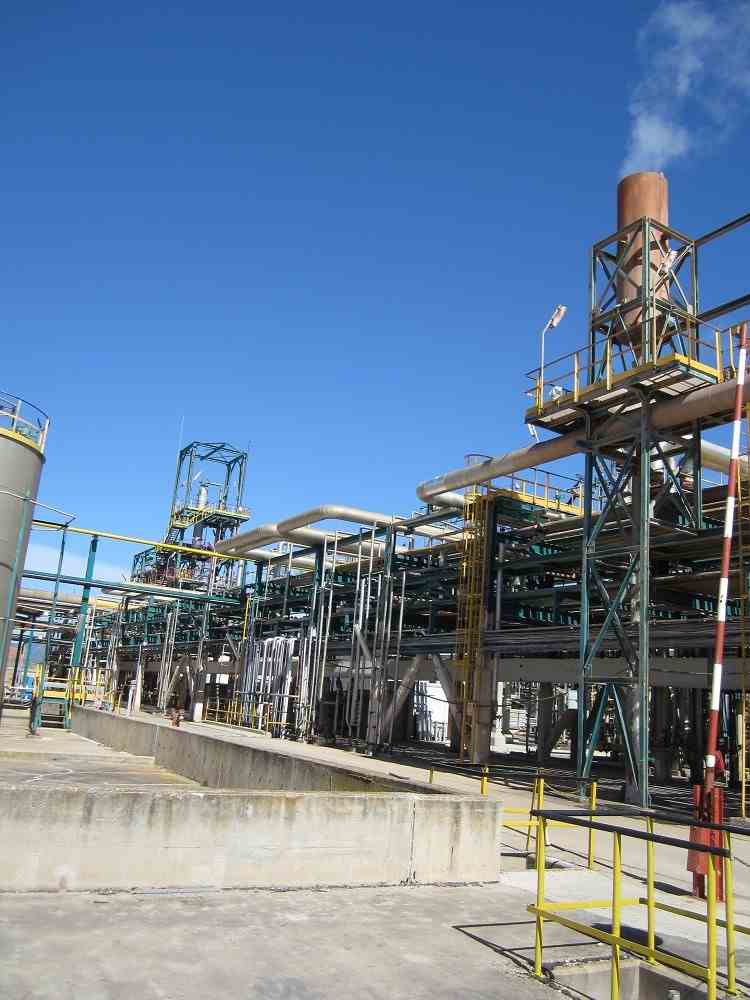

Other Views - click image for larger view
Methyl Methacrylate (MMA) Plant - 46,000 TPY Methyl Methacrylate (MMA) Plant - 46,000 TPY Methyl Methacrylate (MMA) Plant - 46,000 TPY Methyl Methacrylate (MMA) Plant - 46,000 TPY Methyl Methacrylate (MMA) Plant - 46,000 TPY
Description

Used 46,000 TPY Methyl Methacrylate (MMA) Plant. The process uses propylene, ammonia and sulphuric acid to produce 125,000 TPY acrylonitrile (ACN) and 110,000 TPY ammonium sulphate. Then, the ACN reacts with acetone to generate 47,000 TPY acetoncyanhydrine (ACH). The ACH reacts with hydrocyanic acid (HCN) and methanol to produce final product Methyl Methacrylate (MMA).

Major Equipment
Reactors
Esterification Unit
Stripper
Neitralizer
Crystallizer
Extraction Unit
Distillation Column
Condenser
Products

Methyl Methacrylate (MMA)
