Hydrocarbon Dew Point Control Plant for Sale

Now available for immediate purchase: the Refrigeration Hydrocarbon Dew Point Control Plant (Stock #539). This Toromont-designed unit was built in 2007 and has been used but extremely well maintained. It is composed of 2 identical trains, each with the capacity to treat 414 MMSCFD of natural gas feedstock. Original design data and documentation is available upon request. The entire plant or individual components are available and ready for relocation.

Hydrocarbon Dew Point Control Plant for Sale Featured Item(s):

MI, USA
View Brochure

29 Hydrocarbon Dew Point Control Plant for Sale
1-29 of 29
SHOW

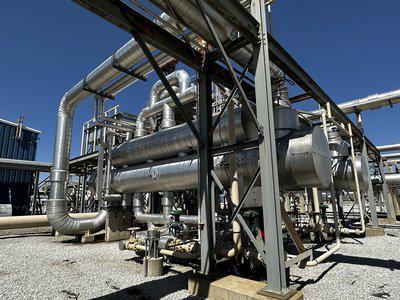

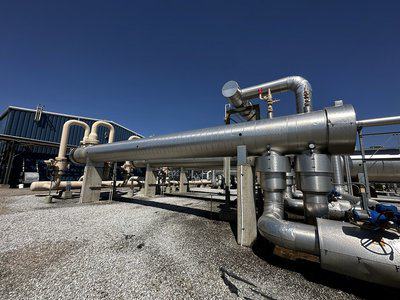

20925 Sq Ft Steeltek Carbon Steel Shell & Tube Heat Exchange..
Stock # 19950

Used 20925 sq ft horizontal carbon steel shell and tube heat exchanger. Manufactured by Steeltek. Carbon steel sheel and (1057) 0.75"OD Carbon steel tubes MAWP 850PSI@150F. Serial #06S-2167 A. National Board #1676. Built 2007. Previous use, Dew Point Control Plant, Gas Cooler.

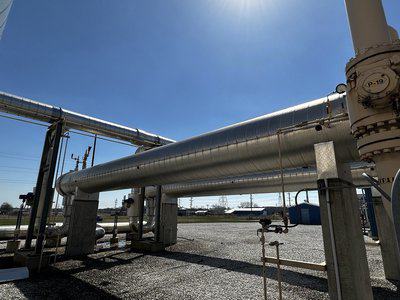

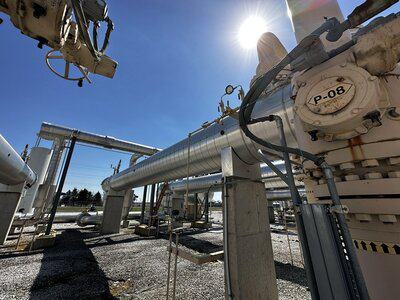

20,925 Sq Ft Carbon Steel Shell & Tube Heat Exchanger - Stee..
Stock # 19951

Used 20925 sq ft horizontal carbon steel shell and tube heat exchanger. Manufactured by Steeltek. Carbon steel shell and (1057) 0.75"OD Carbon steel tubes. MAWP 850PSI@150F. Serial #06S-2167B. National Board #1675. Built 2007. Previous use in dew point control plant as gas cooler.

20925 Sq Ft Steeltek Carbon Steel Shell & Tube Heat Exchange..
Stock # 19952

Used 20925 sq ft horizontal carbon steel shell and tube heat exchanger. Manufactured by Steeltek. Carbon steel shell and (1057) .75"OD Carbon steel tubes MAWP 850PSI @150F. Serial #06S-2167C. National Board #1681. Built 2007. Previous use: Hydrocarbon dew point control plant, gas cooler.

20925 Sq Feet Steeltek Carbon Steel Shell & Tube Heat Exchan..
Stock # 19953

Used 20925 sq ft horizontal carbon steel shell and tube heat exchanger. Manufactured by Steeltek. MAWP 850 psi @150F. (1057) Carbon steel straight tubes, .750" diameter x 40' length. Serial #06S-2167D. National Board #1683. Built 2007. Previous use, hydrocarbon dew point control plant, gas cooler.

20925 Square Ft Carbon Steel Shell & Tube Heat Exchanger - S..
Stock # 19954

Used 20925 sq ft horizontal carbon steel shell and tube heat exchanger. Manufactured by Steeltek. Carbon steel sheel and (1057) .75"OD Carbon steel tubes MAWP 850PSI@150F. Serial #06S-2167 E. National Board #1691. Built 2007. Previous use: hydrocarbon dew point control plant, gas cooler.

20925 Square Ft Steeltek Shell and Tube Heat Exchanger - Car..
Stock # 19955

Used 20925 sq ft horizontal carbon steel shell and tube heat exchanger. Manufactured by Steeltek. MAWP 850 psi @150F. (1057) Carbon steel straight tubes, .750" diameter x 40' length. Serial #06S-2167F. National Board #1692. Built 2007. Previous use: hydrocarbon dew point control plant, gas cooler.

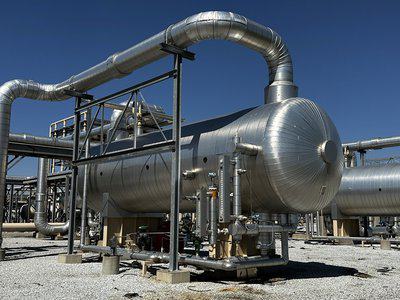

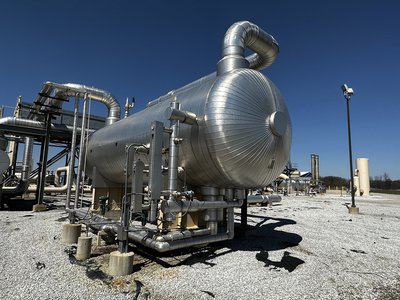

16800 Gal Eaton Metal Products Horizontal Carbon Steel Press..
Stock # 19956

Used 16800 gallon horizontal carbon steel pressure vessel. Manufactured by Eaton Metal Products. Rated 850 psi@250F. 9' diameter x 32' length. 155000 lbs. Serial #129. National board #118. Built 2007. Previous use dew point control plant, LTS.

16800 Gallon Horizontal Carbon Steel Pressure Vessel - Eaton..
Stock # 19957

Used 16800 gallon horizontal carbon steel pressure vessel. Manufactured by Eaton Metal Products. Rated 850 psi@250F. 9' diameter x 32' length. 155000 lbs. Serial #128. National board #120. Built 2007. Previous use in hydrocarbon dew point control plant, LTS.

8136 Sq Ft Steeltek Carbon Steel Shell & Tube Heat Exchanger
Stock # 19958

Used 8136 sq ft horizontal carbon steel shell and tube heat exchanger. Manufactured by Steeltek. Tube rated 850 psi @150F. (1897) Carbon steel straigt tubes. .6250" diameter x 40" length. Shell rated 250 psi @150F. Shell is equipped with a 42" carbon steel Surge Drum attached on top of shell with (4) 18" risers, Serial #06S-2168A, National board #1671. Built 2007. Previous use in dew point control plant, gas chiller.

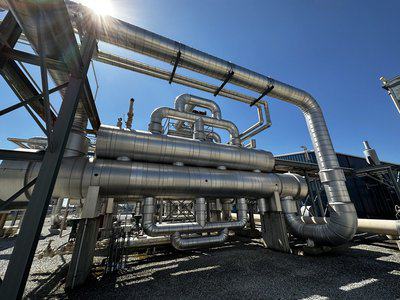

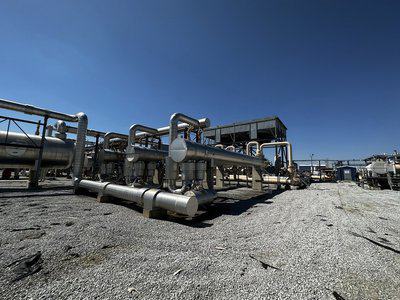

8136 Sq Ft Steeltek Shell and Tube Heat Exchanger - Carbon S..
Stock # 19959

Used 8136 sq ft horizontal carbon steel shell and tube heat exchanger. Manufactured by Steeltek. Tube rated 850 psi @150F. (1897) Carbon steel straigt tubes. .6250" diameter x 40" length. Shell rated 250 psi @150F. Shell is equipped with a 42" carbon steel Surge Drum attached on top of shell with (4) 18" risers, Serial #06S-2168B, National board #1672. Built 2007. Previous use: Hydrocarbon dew point control plant, gas chiller.

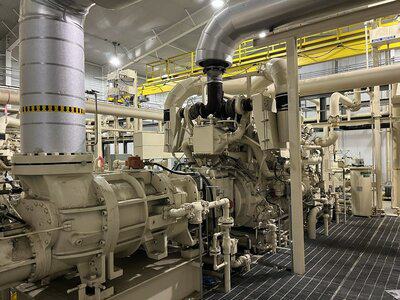

12850 SCFH Frick Propane Refrigeration Screw Compressor
Stock # 19960

Used 12850 SCFH Propane Refrigeration Screw Compressor Package - Frick Model SGC 3519 compressor driven by Waukesha L7042 GL Natural Gas Engine. Compressor - 3344 RPM Operating Speed. Oil temp 160F. Max Pressure 375 PSI. Serial #SGCH35190008Z. Includes Compressor suction scrubber. 66"ID x 120 S/S. MAWP 250 PSIG@150F. TPS Allen Bradley Compact Logix Control. Oil Filter, separator, flatplate Oil Cooler. Pacific Rim Speed Increaser. Model EMPB 0800B 001. Ratio 1:2.787. Ingersoll Rand Engine Pre-Lub pump. 1478 HP Waukesa L7042 GL Natural Gas Engine. Bore 9.375". Stroke: 8.5" Displacement 7040 cu in. Speed: 1200 RPM. Compression Ratio: 10.5:1. Fuel Gas Consumption 12850 SCFH @1478 HP. Start Gas Consumption 854 SCFM@60 PSIG / 1208 SCFM @90PSIG. Kim Hot Start Oil/coolant Heater. model Coler 3180/0604-0881. .75HP Coolant motor. 1HP Heater motor. Warren Rupp 50/50 Gylcol 5GPM @ 2PSIG Transfer Pump. Ace Gycol Cooler. Model E-102-15. MAWP 150PSI@300F. 20 HP Moore Series fan. Built 2006. Skid Dimensions: 453"L x 240"W x 168"H. 122720 lbs. Past use: Propane Refrigeration Compressor Package in Dew Point Control Plant.

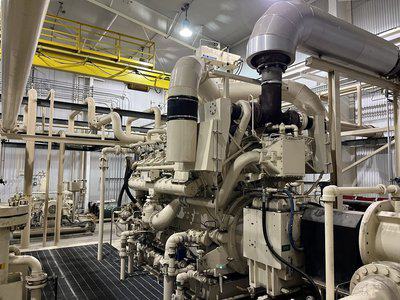

215 CFM Hydrocarbon Dew Point Control Compressor Package
Stock # 19961

Used 215 CFM Propane Refrigeration Screw Compressor Package - Frick Model SGC 3519 compressor driven by Waukesha L7042 GL Natural Gas Engine. Compressor - 3344 RPM Operating Speed. Oil temp 160F. Max Pressure 375 PSI. Serial #SGCH35190009Z. Includes Compressor suction scrubber. 66"ID x 120 S/S. MAWP 250 PSIG@150F. 1478 HP Waukesa L7042 GL Natural Gas Engine. Bore 9.375". Stroke: 8.5" Displacement 7040 cu in. Speed: 1200 RPM. Compression Ratio: 10.5:1. Fuel Gas Consumption 12850 SCFH @1478 HP. Start Gas Consumption 854 SCFM@60 PSIG / 1208 SCFM @90PSIG. TPS Allen Bradley Compact Logix Control. Oil Filter, separator, flatplate Oil Cooler. Pacific Rim Speed Increaser. Model EMPB 0800B 001. Ratio 1:2.787. Ingersoll Rand Engine Pre-Lub pump. Kim Hot Start Oil/coolant Heater. model Coler 3180/0604-0881. .75HP Coolant motor. 1HP Heater motor. Warren Rupp 50/50 Gylcol 5GPM @ 2PSIG Transfer Pump. Ace Gycol Cooler. Model E-102-15. MAWP 150PSI@300F. 20 HP Moore Series fan. Skid Dimensions: 453"L x 240"W x 168"H. 122720 lbs. Built 2006. Past use: Hydrocarbon Dew Point Control Plant, propane refrigeration compressor package.

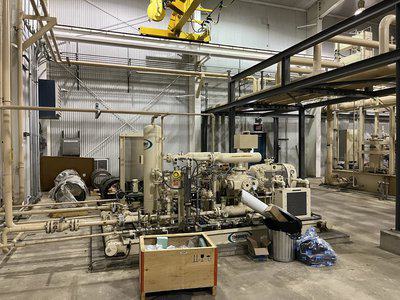

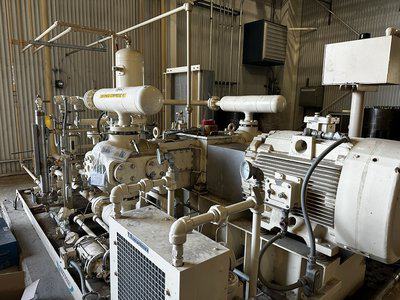

Overhead Compressor Skid
Stock # 19962

Used overhead compressor skid consisting of (2) Ariel JGQ/2 Compressors. MAWP 1270 PSIG. Size 4.125" Bore x 3" stroke. GE Gemin 125HP TEFC motor Frame 444. Skid includes Tesi Scrubber with Mist Pad. Size 12.75" OD x 72" S/S. MAWP 645PSIG @200F. Ace E24-2.5 375 Sq Ft 6-pass Aftercooler. MAWP 1287PSIG@350F. Air Cooled Exchangers Forced Draft Model E24-2.5 Heat Exchanger. 5027 SFCM. 1HP fan. Lube oil cooler motor, filter, pump. Built 2007. Skid dimensions 149 5/16" x 90" x 80 13/16". Empty weight 19500 lbs. Past use: Dew Point Control Plant, Overhead compressor.

6844 Gal Toromont Carbon Steel Tank
Stock # 19963

Used 6844 gallon carbon steel propane receiver tank. Manufactured by Toromont Energy Systems Inc. MAWP 300/FV psi @250F. 72" Diameter x 356"T/T. Dished ends. (2) saddle mounted. Serial #23027-401. National Board #1425. Built 2007. Previous use in hydrocarbon dew point control plant, propane receiver.

2426 Sq Ft Harsco Fin Fan Heat Exchanger
Stock # 19964

Used 2426 sq. ft. Fin Fan Heat Exchanger. Manufactured by Air X-Changers - Harsco. Model #192-2Z. SA214 welded carbon steel tubes. (266) .625" OD carbon steel tubes rated 300PSI/250F. L-Tension/wheel aluminum fins. 2426 sq ft (Bare). 38581 sq ft (extended). (2) 6-blade 192"Dia Moore Model CL10K fans with 40HP motors. Overall dimensions 17'W x 57'L x 12'H. 55500 lbs. Serial #062704.1A. NB #57571. Built 2007.

2426 Sq Ft Harsco Industrial Air-X-Changer Fin Fan Heat Exch..
Stock # 19965

Used 2426 sq. ft. Fin Fan Heat Exchanger. Manufactured by Air X-Changers - Harsco. Model #192-2Z. SA214 welded carbon steel tubes. (266) .625" OD carbon steel tubes rated 300PSI/250F. L-Tension/wheel aluminum fins. 2426 sq ft (Bare). 38581 sq ft (extended). (2) 6-blade 192"Dia Moore Model CL10K fans with 40HP motors. Overall dimensions 17'W x 57'L x 12'H. 55500 lbs. Serial #062704.2A. NB #57572. Built 2007. Previous use: Dew Point Control Plant, propane condenser.

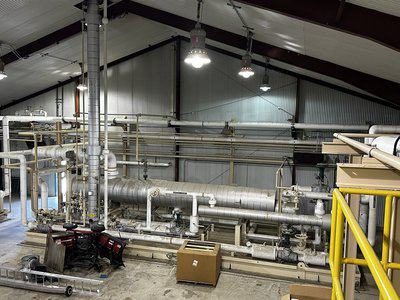

Toromont Stabilizer Skid
Stock # 19966

Used Stabilizer System Skid. Main components: 74 sq ft Cimco shell and tube heat exchanger, 250 PSIG MAWP @500F. 8 5/8" OD x 144" L, Naitonal Board #3222, serial #8006654 (E-102). 761 Sq ft Cimbo reboiler, 250 psig MAWP @500F, 32" OD x 329" L, National #3218, serial #8006653. (E-103). Basic Systems Inc. stabilizer column, 30" OD x 427" Tall. National board #1426, serial #23027-402. Overall skid dimensions 420"L x 144"W x 488" H. Shipping weight 39,215 lbs. Built 2007. Previous use: Part of Hydrocarbon Dew Point Control Unit - Plant #539

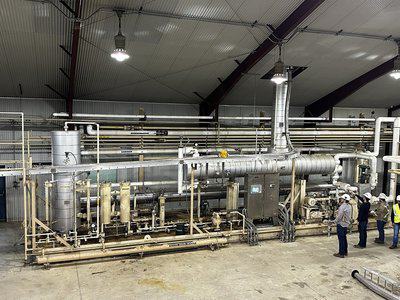

Toromont Gas Processing System / Skid
Stock # 19967

Used Ethylene Glycol (EG) Regeneration System Skid, designed by Toromont. Main components are 18" OD x 180" L Stripper Column (T-104) at 150 psi @ 500F; 121 Sq Ft Reboiler (E-104) at 150 psi @ 500F on shell and tubes; 1,805 Sq Ft Lean/Rich Heat Exchanger (E-105) at 150 psi @ 500F. Slso includes pumps, filters and flash tank. Dimensions: 510"L x 120" W x 310" H. Shipping weight 42,570 lbs. Built 2007. Previous use: Part of Hydrocarbon Dew Point Control Unit - Plant #539

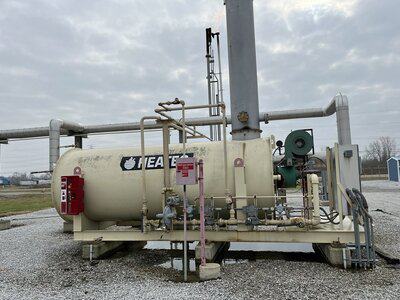

Heatec Thermal Fluid Heater - 5.2MM BTU
Stock # 19968

Used 5.2MM BTU/Hr Thermal Fluid heater. Manufactured by Heatec. Model HCI-4010-40-G. Input 6.96MM BTU/hr. Output 5.2MM BTU/Hr. Transfer media: Therminol 59. 300PSIG@650F. 7.5HP heater blower. Eclipse RM-100 burner. 500 gallon Expansion Tank 50SPIG@600F. (2) 20HP Pumps and stack. Natural Gas train. Control panel. (2) Skid Mounted. Job HI07-043. Built 2007. Previous use: Hydrocarbon dew point control plant, HMO system.

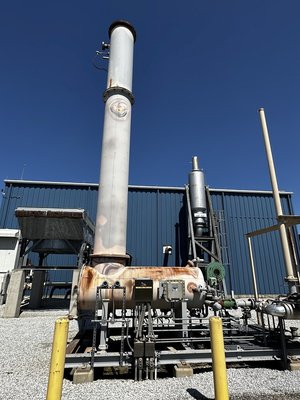

1.5 BTU/MM Flare Industries Thermal Oxidizer
Stock # 19969

Used thermal oxidizer. Manufactured by Flare Industries. Consisting of: 34000 SCFH Combustion air blower with 1HP/460V/60hz motor, 21000 SCFH process blower with 10HP/460V/60hz motor, 1.5 MMBTU burner. 36" thermal oxidizer chamber with 30" dia x 15' tall cooling tower. Overall skid dimensions: 7' W x 16' L x 30' H. Weight 8060 lbs. Built 2008. Previous use: Hydrocarbon dew point control plant, Thermal Oxidizer.

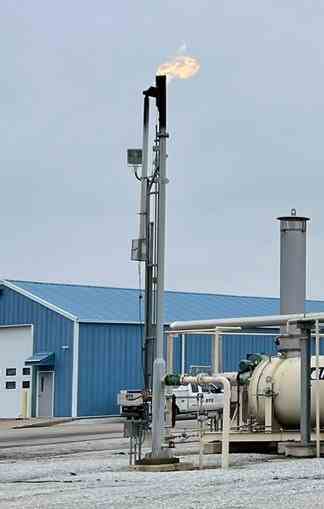

Propane Flare - 72000 SCFH
Stock # 19970

Used propane flare with model 100 ignition system. Manufactured by Flare Industries. 72000 SCFH max inlet flow @150F. 30 psig max inlet pressure. 25' tall, 800 lbs weight. Built 2008. Previous use in hydrocarbon dew point control plant.

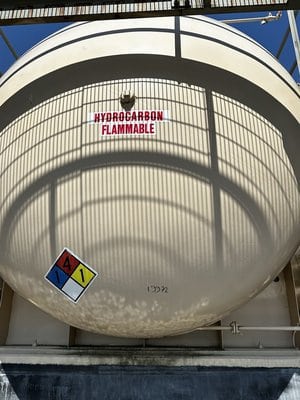

30000 Gal Highland Tank Horizontal Carbon Steel Pressure Ves..
Stock # 19971

Used 30000 gallon Carbon Steel Pressure Vessel. Manufactured by Highland Tank.  MAWP 50 PSI @150F. Polyurethane interior coating. (2) 20" side Manway on Davit. Nozzle sizes (4) 1". (1) 1.5", (3) 2", 3" Coupling, (3) 6". (2) Saddle mounted. 132" Dia x 39'L. Built 2007. Previous use natural gas storage.

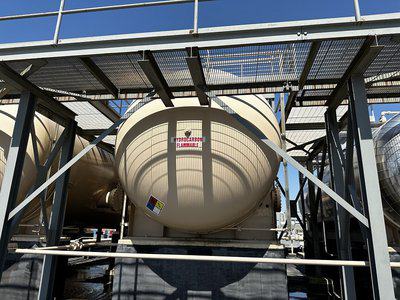

30000 Gallon Horizontal Carbon Steel Pressure Vessel - Highl..
Stock # 19972

Used 30000 gallon Carbon Steel Pressure Vessel. Manufactured by Highland Tank.  MAWP 50 PSI @150F. Polyurethane interior coating. (2) 20" side Manway on Davit. Nozzle sizes (4) 1". (1) 1.5", (3) 2", 3" Coupling, (3) 6". (2) Saddle mounted. 132" Dia x 39'L. Built 2007. Previous use natural gas storage.

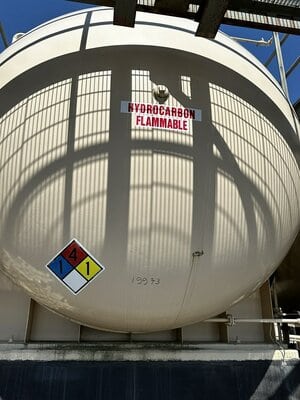

30000 Gal Horizontal Natural Gas Storage Tank - Carbon Steel
Stock # 19973

Used 30000 gallon Carbon Steel Pressure Vessel. Manufactured by Highland Tank.  MAWP 50 PSI @150F. Polyurethane interior coating. (2) 20" side Manway on Davit. Nozzle sizes (4) 1". (1) 1.5", (3) 2", 3" Coupling, (3) 6". (2) Saddle mounted. 132" Dia x 39'L. Built 2007. Previous use natural gas storage.

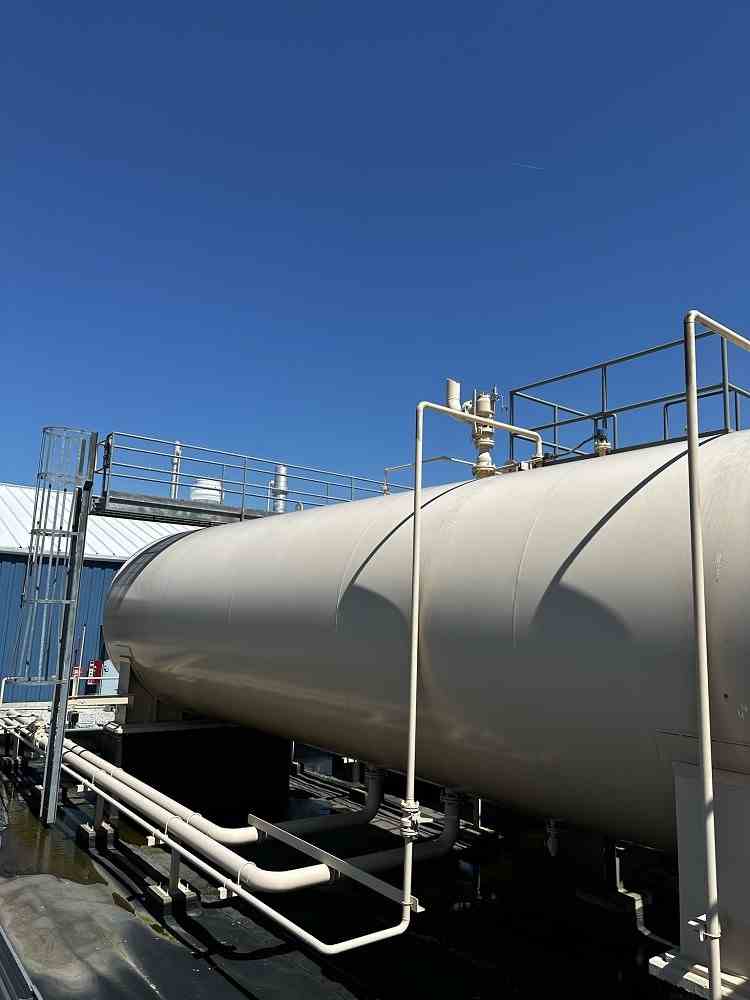

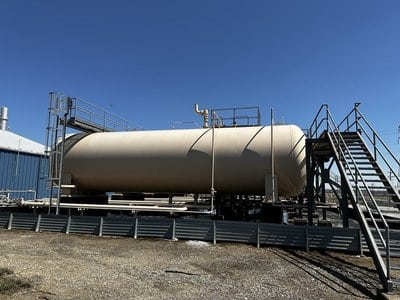

30000 Gal Horizontal Pressure Vessel - Carbon Steel
Stock # 19974

Used 30000 gallon Carbon Steel Pressure Vessel. Manufactured by Highland Tank.  MAWP 50 PSI @150F. Polyurethane interior coating. (2) 20" side Manway on Davit. Nozzle sizes (4) 1". (1) 1.5", (3) 2", 3" Coupling, (3) 6". (2) Saddle mounted. 132" Dia x 39'L. Built 2007. Previous use natural gas storage.

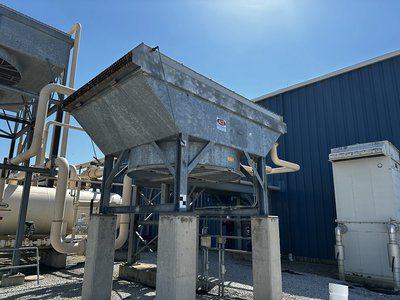

409 Sq Ft ACE Fin Fan Heat Exchanger
Stock # 19975

Used 409 sq ft Fin Fan heat exchanger. Manufactured by ACE Inc. Model E102-15. Belt drive fan with 20 HP, 460V/3Phase/60Hz motor. 150 psig design pressure @350F max temperature. Serial #0704601. Built 2007. Part of Stock #19960 - Compressor skid.

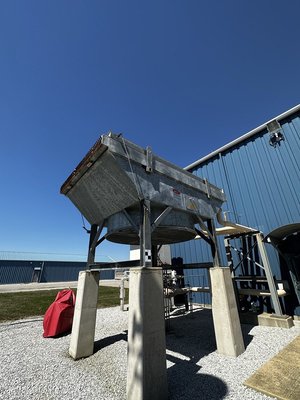

409 Sq Ft Fin Fan Heat Exchanger - ACE
Stock # 19976

Used 409 sq ft Fin Fan heat exchanger. Manufactured by ACE Inc. Model E102-15. Belt drive fan with 20 HP, 460V/3Phase/60Hz motor. 150 psig design pressure @350F max temperature. Serial #0704602. Built 2007. Part of Stock #19961 - Compressor package.

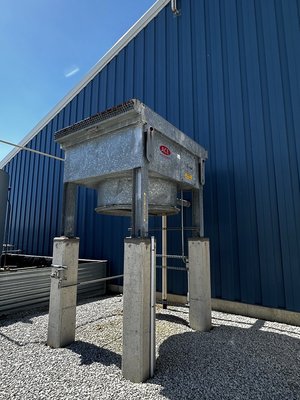

201 Sq Ft ACE Fin Fan Heat Exchanger
Stock # 19977

Used 201 sq ft Fin Fan heat exchanger. Manufactured by ACE Inc. Model E54-7. Moore series 24 condensate cooler. 7.5 HP electric drive suitable for Class 1, Div. 1 Explosion Proof motor. 250 psig design pressure @500F max temperature. Serial #0708301. Built 2007. Part of Stock #19967 - Glycol Regeneration System Skid.

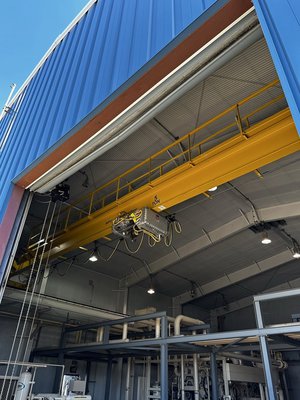

Proserv A6728 Overhead Crane - 5 Ton
Stock # 19978

Used 5 ton overhead crane. Manufactured by Proserv Anchor.
