unused 1000 gallon lube oil system

Stock # 23247
Capacity Unknown

Overview

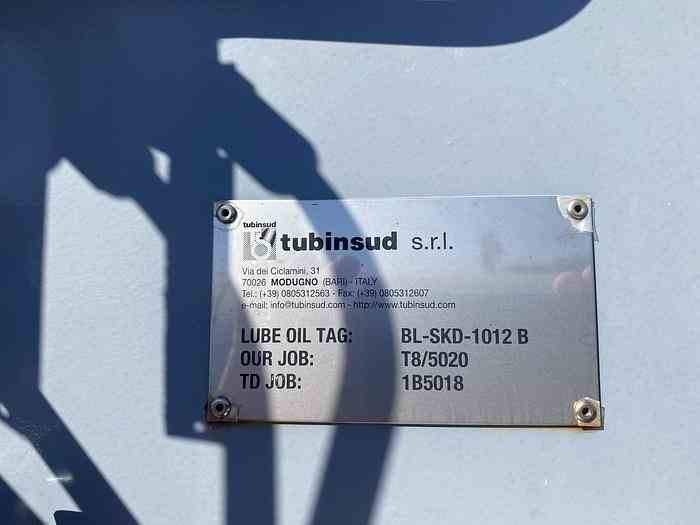

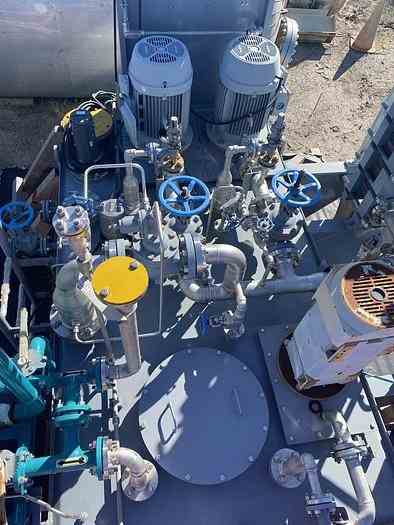

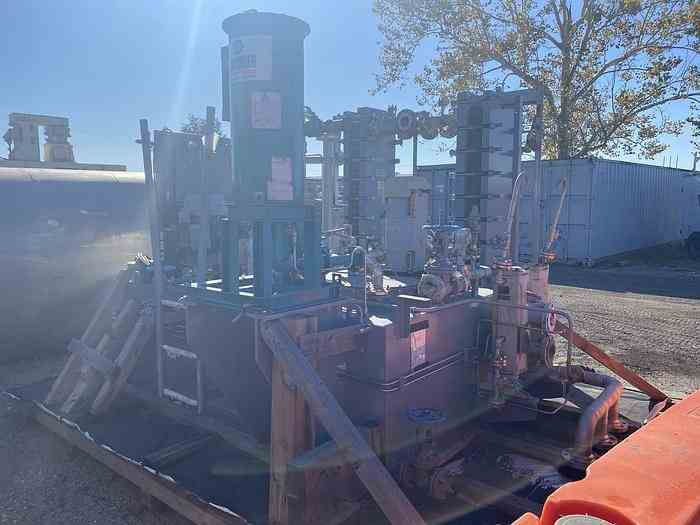

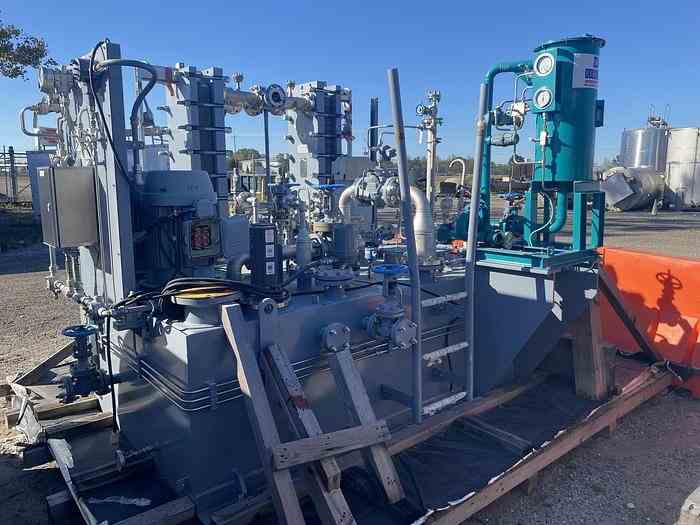

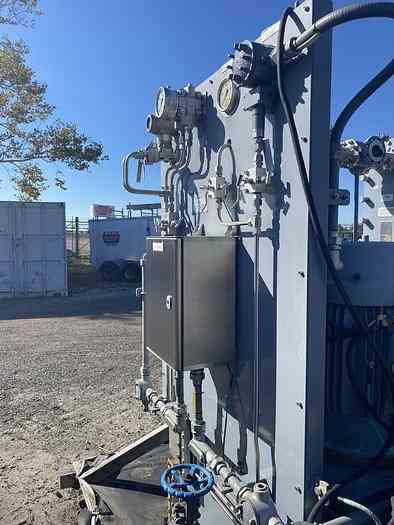

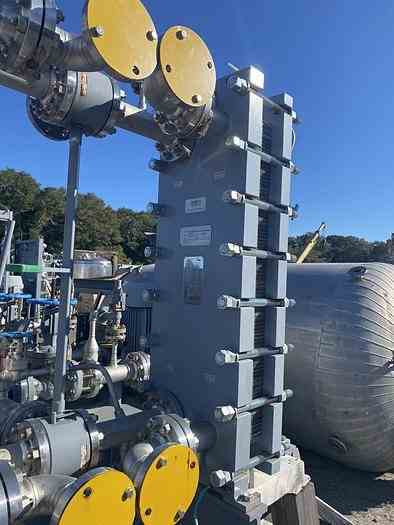

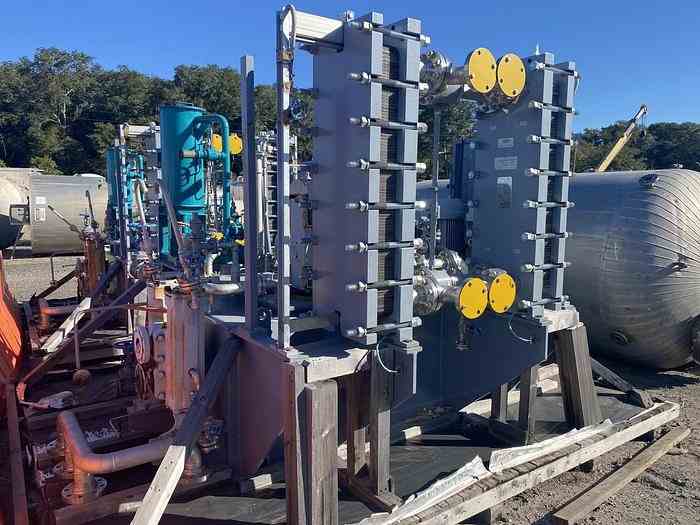

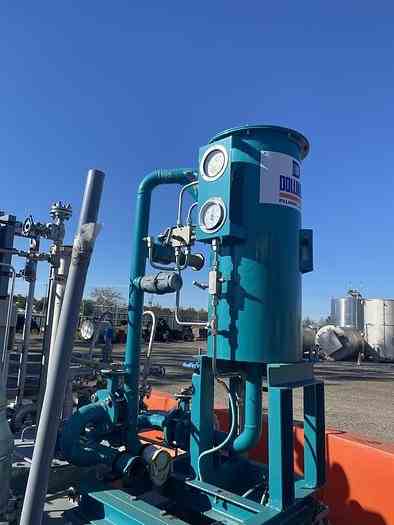

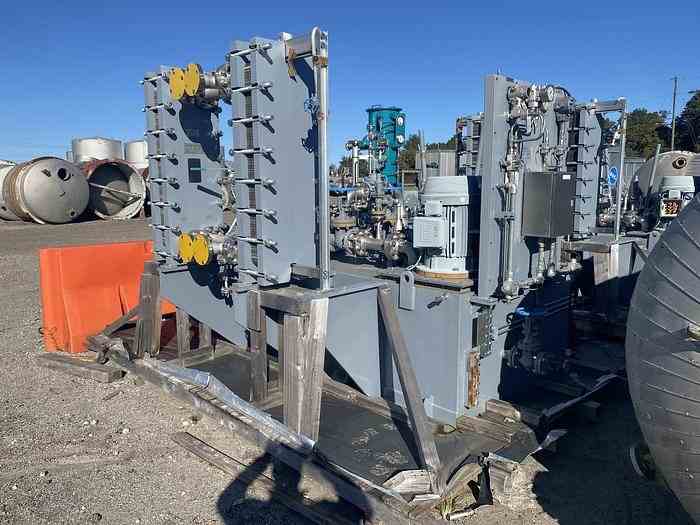

Unused 1000 gallon lube oil system. Manufactured by Tubinsud SRL. (1) 1000 gallon reservoir with (2) 3" Screw Volumetric Pumps powered by 40HP 3/60/460 volt motor. (1) 2" Screw Volumetric Pump powered by 5HP 3/60/240 volt motor. (2) Funke Type FP-40-47-1-NH-1 stainless steel plate and frame heat exchangers. Rated same for the "WARM" and "COLD" sides 276 PSI @ 9 to 176 F. Volume 23.9 liters flow F2> F3, F1>F4. Skid mounted. Built 2008. (1) Caloritech Part# BL-HT-1015 10 kW 3/460 volt heater, (1) Dollinger model OE-158B-125 SP filter with (1) filter element 79-1288 rated for 120 C, (1) Boll and Kirch Filterbau GMBH Model BFD 180 580 3" 08 dual filter chamber. Rated 275 PSI @ 32-176 F, 10 uM. Built 2008. Weight 20,944#.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Tubinsud SRL
Model
NA
Material
Unknown
Capacity
Unknown
Subcategory
