100 Cu Ft American Process 304 SS Ribbon Blender
Other Views - click image for larger view
100 Cu Ft American Process 304 SS Ribbon Blender 100 Cu Ft American Process 304 SS Ribbon Blender 100 Cu Ft American Process 304 SS Ribbon Blender 100 Cu Ft American Process 304 SS Ribbon Blender

100 cu ft american process 304 ss ribbon blender

Stock # 14742
Sold
Capacity 100 Cu Ft

Overview

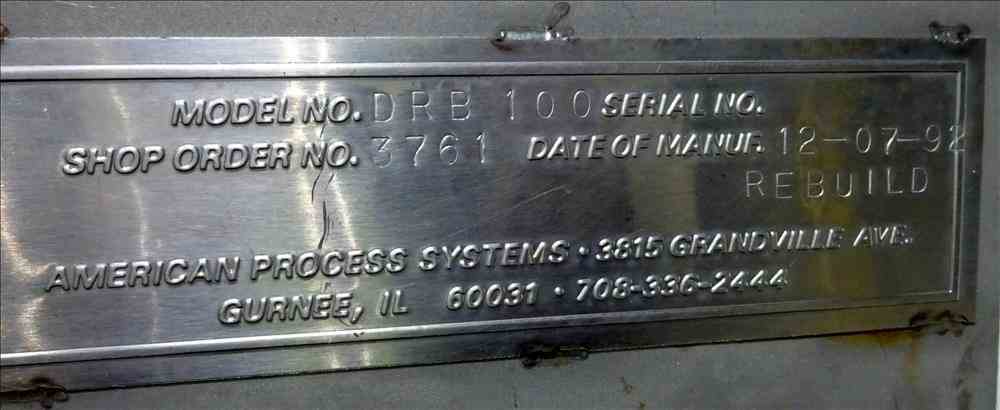

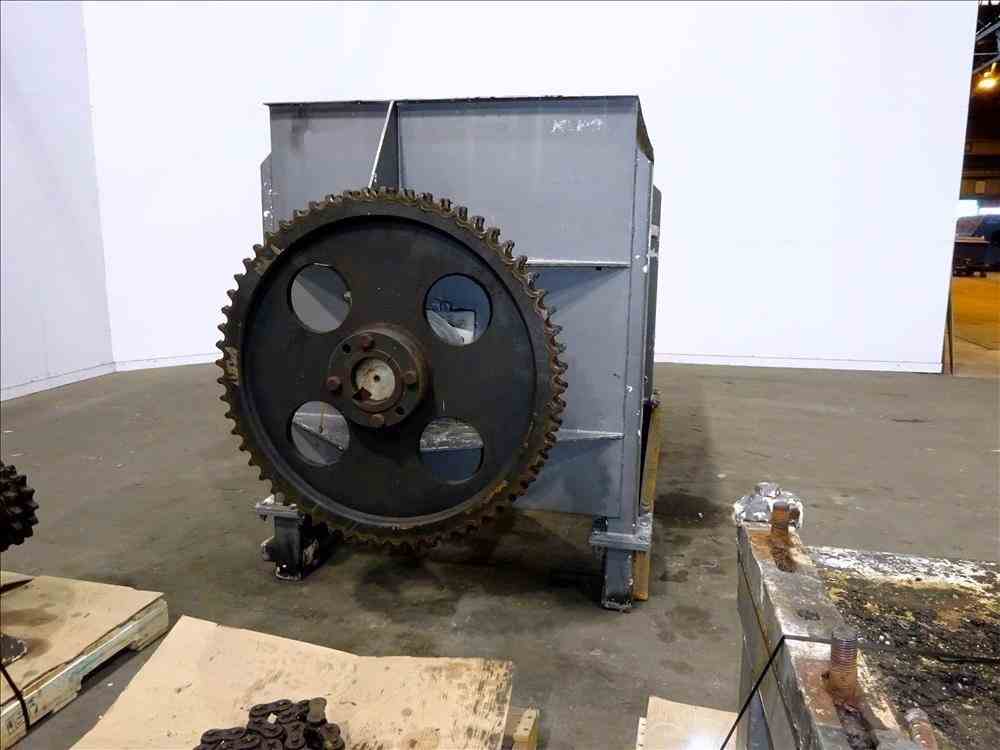

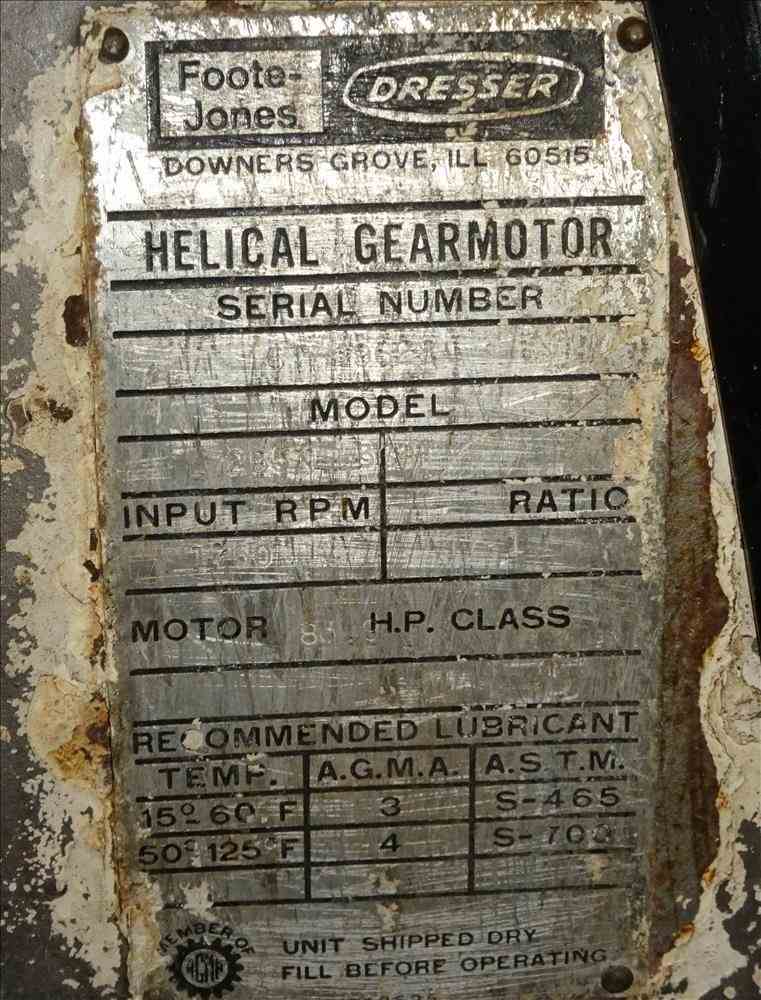

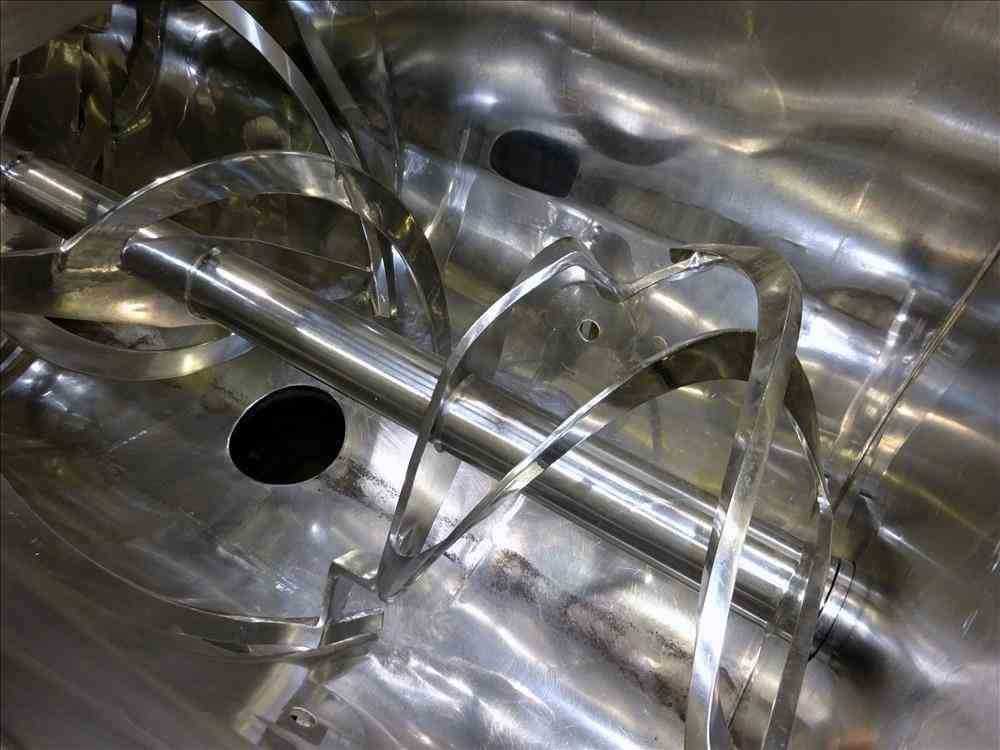

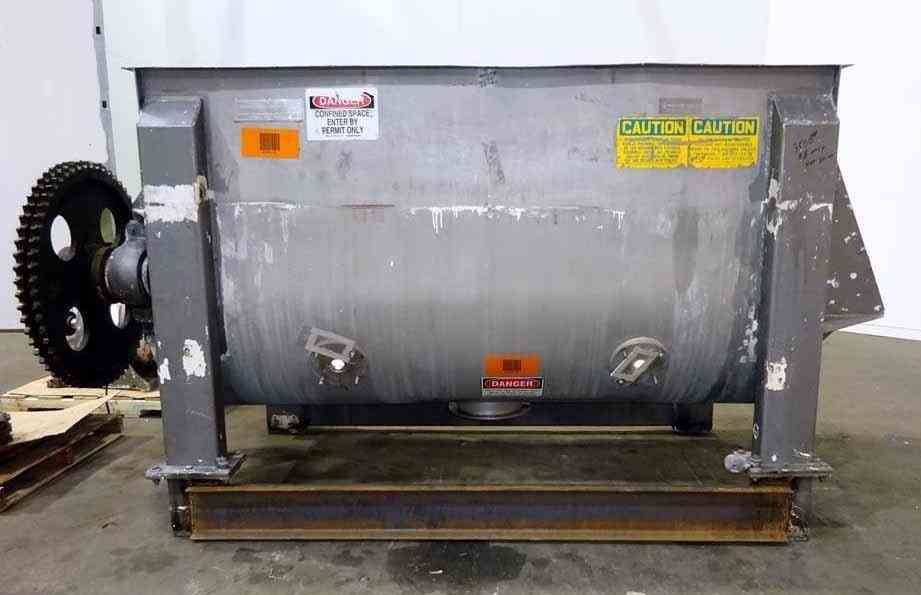

Used American Process System Double Spiral Ribbon Blender, Model DRB 100, 304 Stainless Steel, 100 Cubic Feet Working Capacity. Non-jacketed trough approximate 96" long x 45" wide x 54" deep. Inner ribbon 5/16" thick x 3" wide, outer ribbon 7/8" thick x 1-3/4" welded to 5-1/2" diameter shaft. Driven by a motor an approximate 60 hp(no motor tag) with gearbox 17.1:1 ratio. Approximate 12" center bottom outlet. Mounted on (4) legs. Serial# 3761. Rebuilt 1992.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
American Process
Model
DRB-100
Material
304 SS
Capacity
100 Cu Ft
Category
Subcategory
