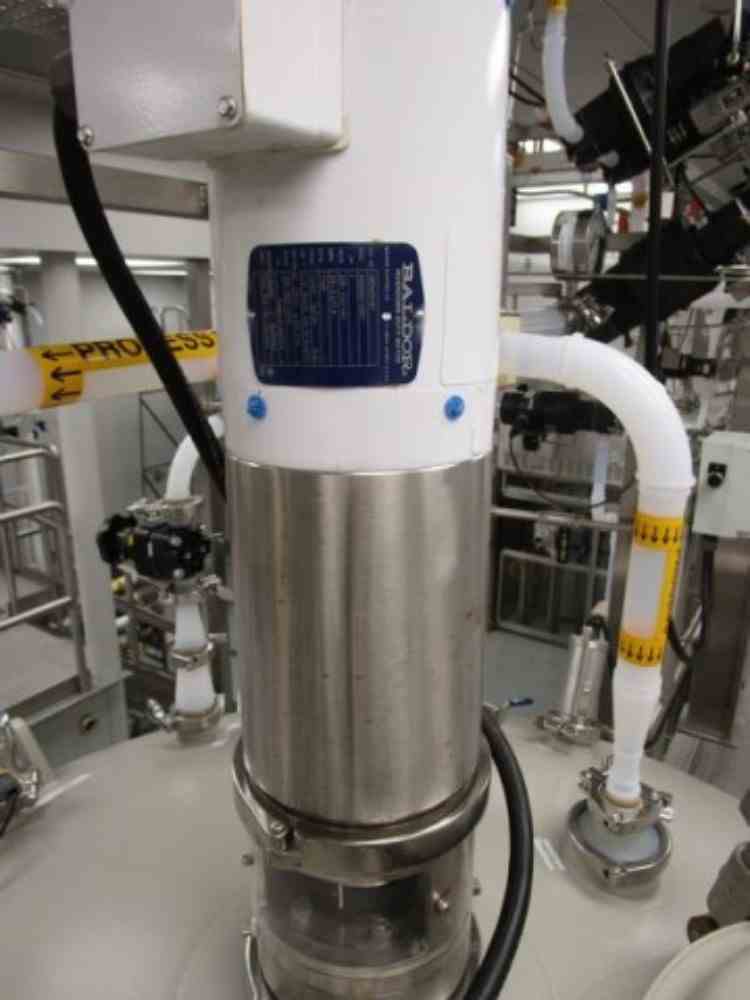

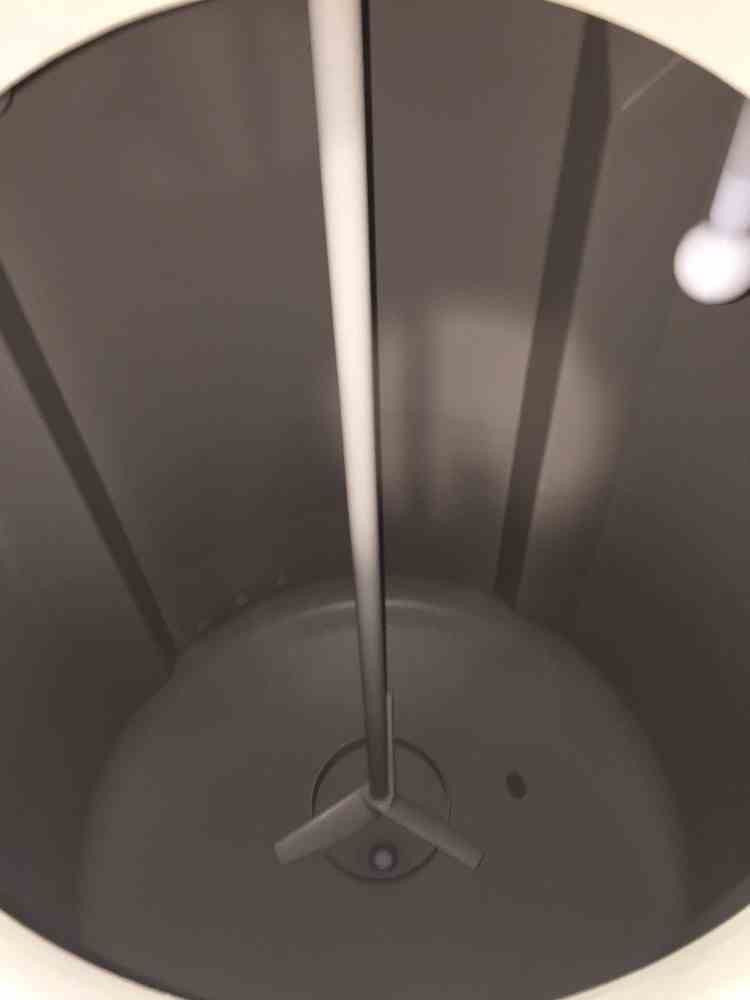

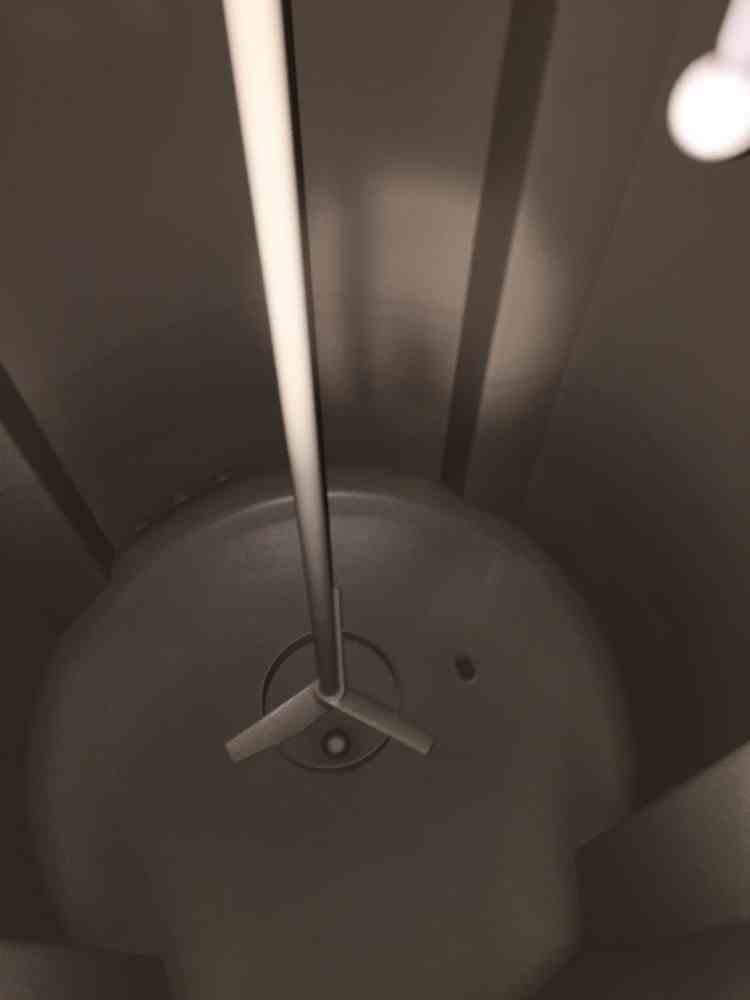

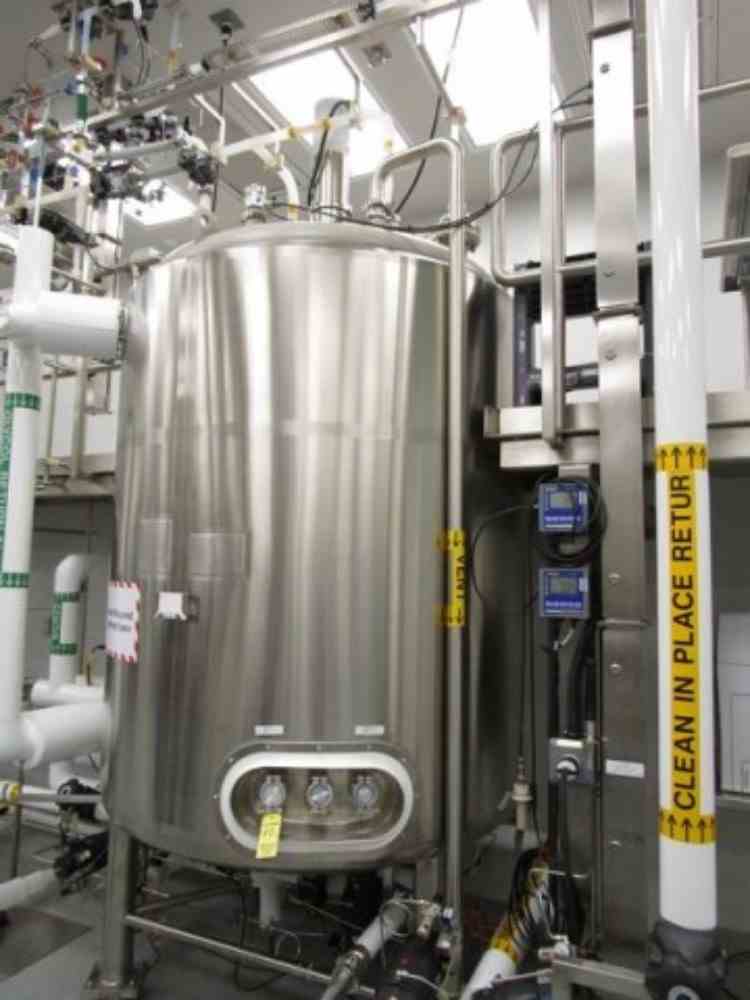

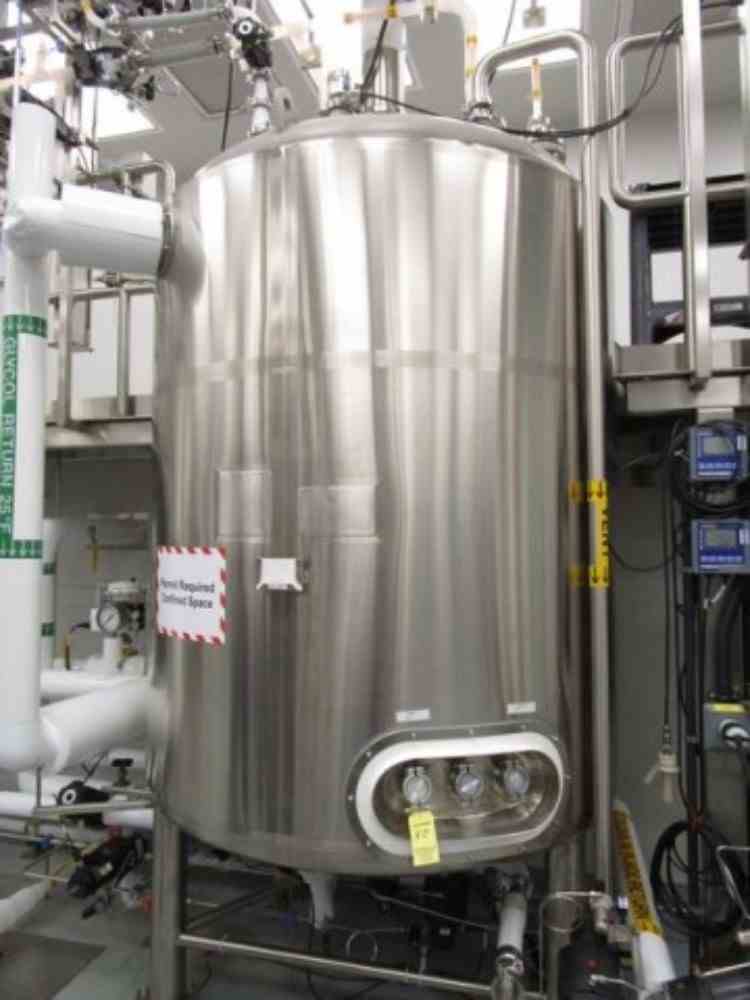

Used DCI 2,770 Liter Stainless Steel Reactor with Load cells with Mettler DROU. 304L stainless steel construction. Approximately 58" diameter x 70" straight side, Dish top and bottom. Rated 45 psi and full vacuum at 350°F internal. Jacketed for 175 psi and full vacuum at 375°F. Approximately 1 HP Lightnin agitator drive, Model SSV08S100 with shaft and blade.

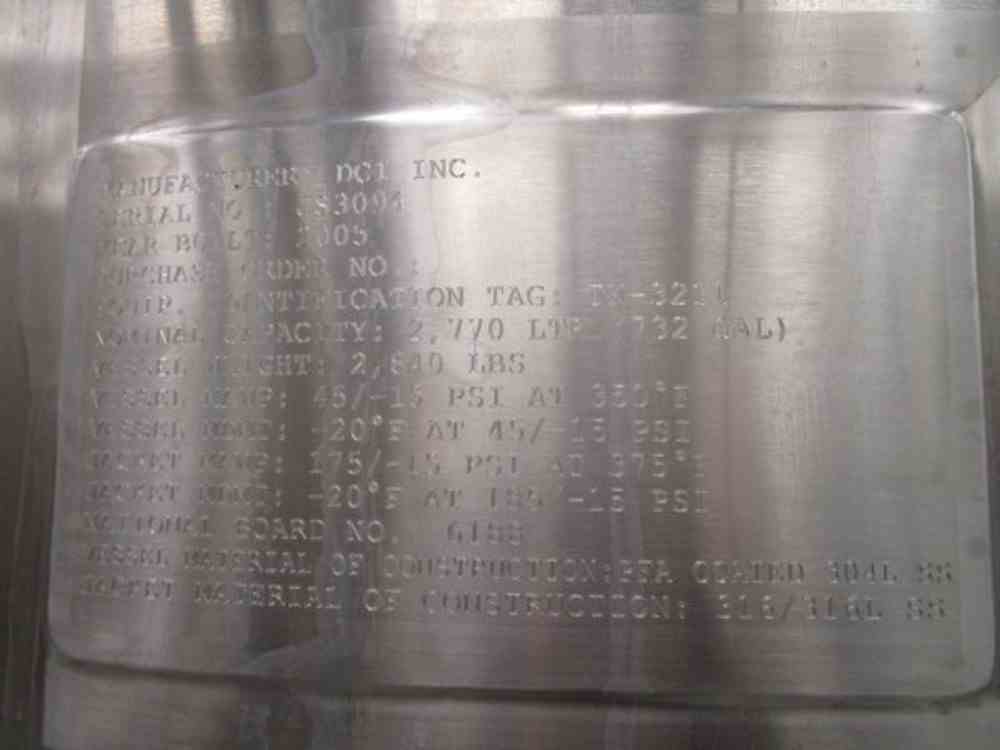

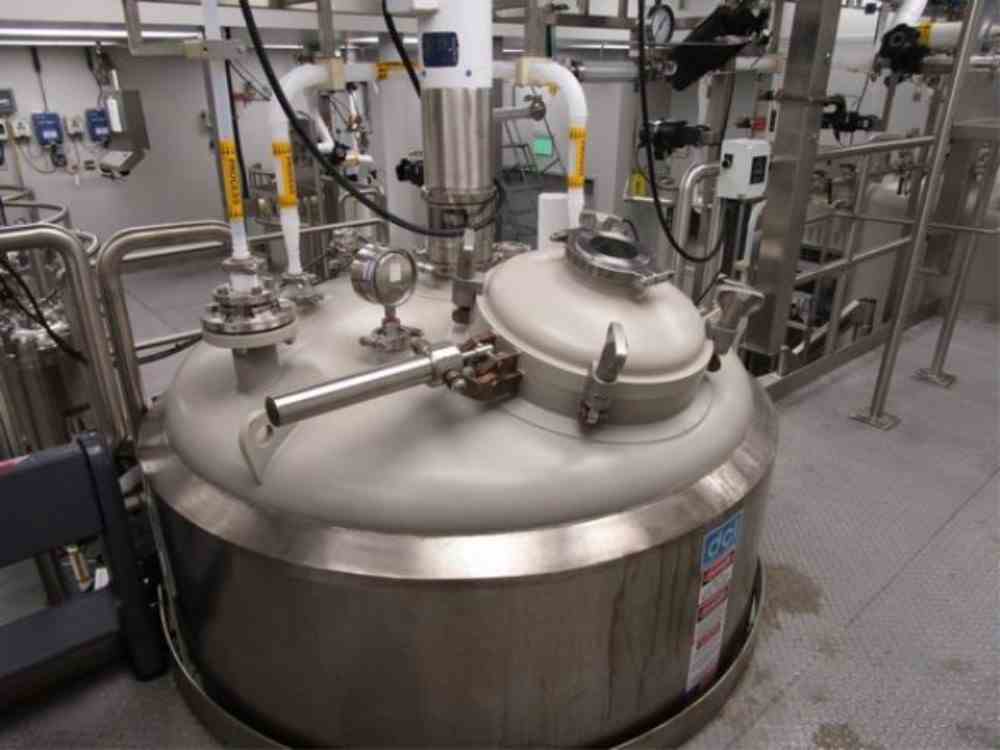

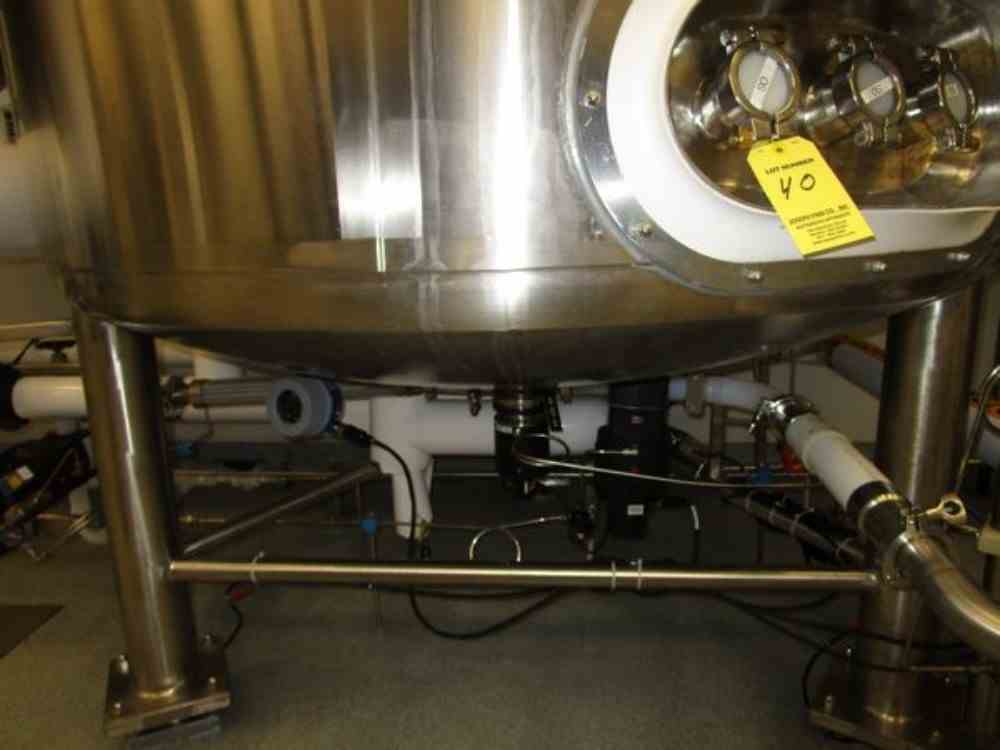

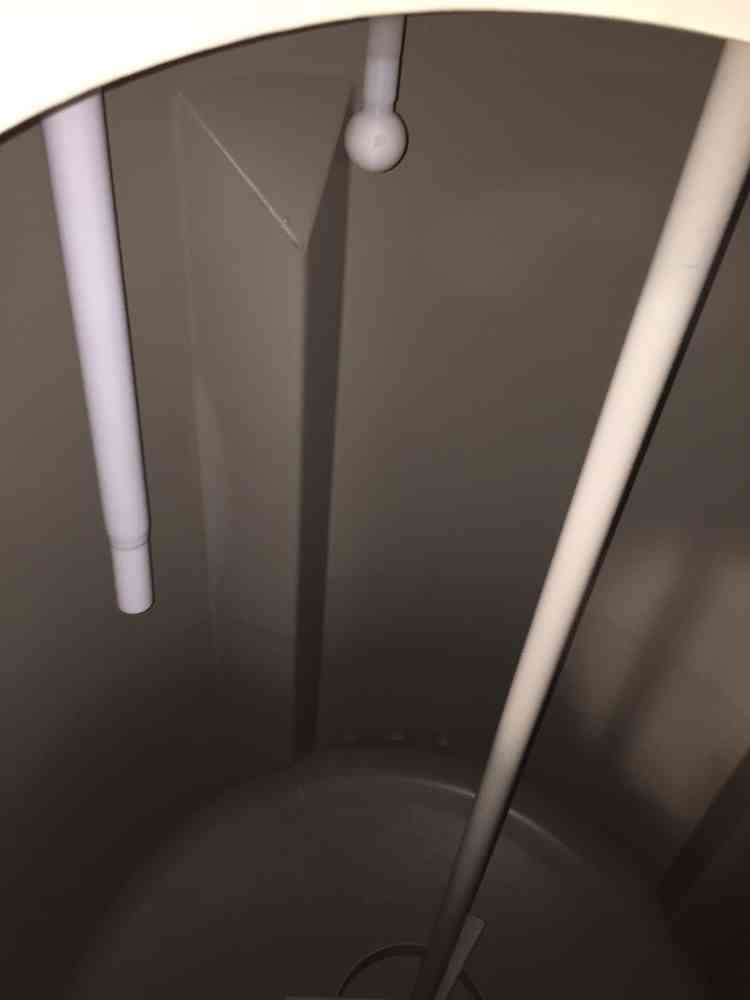

(4) side wall baffles. Top head and manway cover coated with PFE (perfluroalkoxy). Top nozzles: 18" manway, (4) 3", (3) 3", (5) 1.5". 2" center bottom outlet. On 4 stainless steel legs. Serial #: JS3094
National Board #: 6188, Built 2005.
