155 Sq Ft Carbone Graphite Block Type Heat Exchanger

155 Sq Ft Carbone Graphite Block Type Heat Exchanger
Other Views - click image for larger view
155 Sq Ft Carbone Graphite Block Type Heat Exchanger 155 Sq Ft Carbone Graphite Block Type Heat Exchanger 155 Sq Ft Carbone Graphite Block Type Heat Exchanger 155 Sq Ft Carbone Graphite Block Type Heat Exchanger 155 Sq Ft Carbone Graphite Block Type Heat Exchanger 155 Sq Ft Carbone Graphite Block Type Heat Exchanger

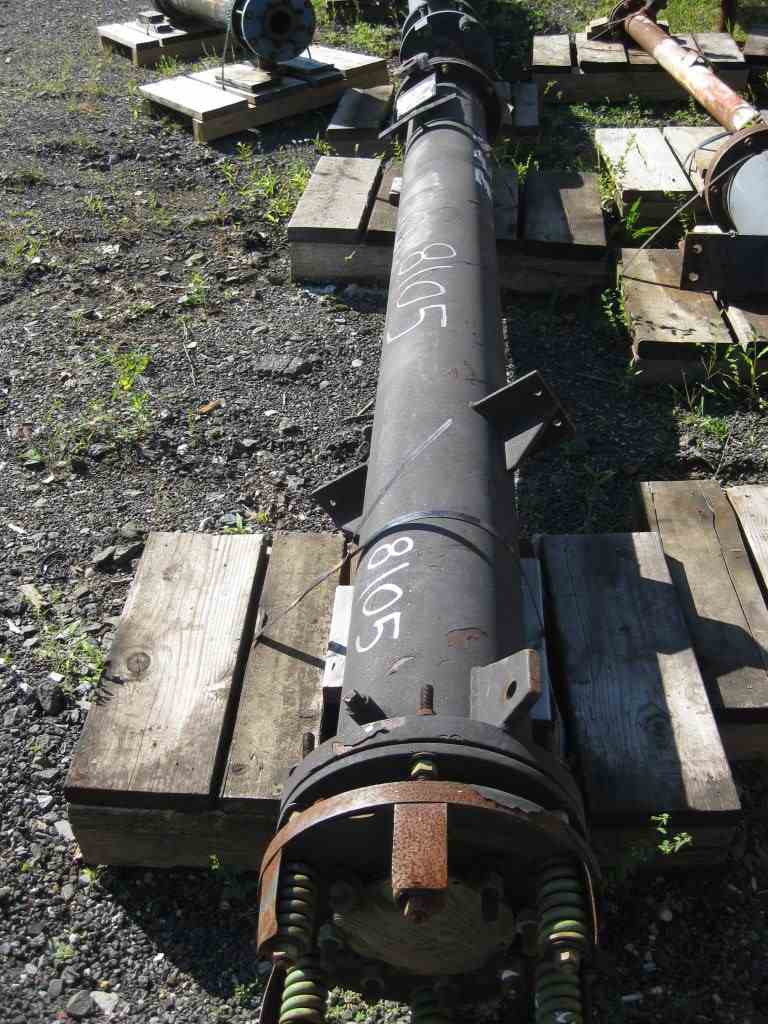

STOCK# 8105
Capacity 155 Sq Ft
Description

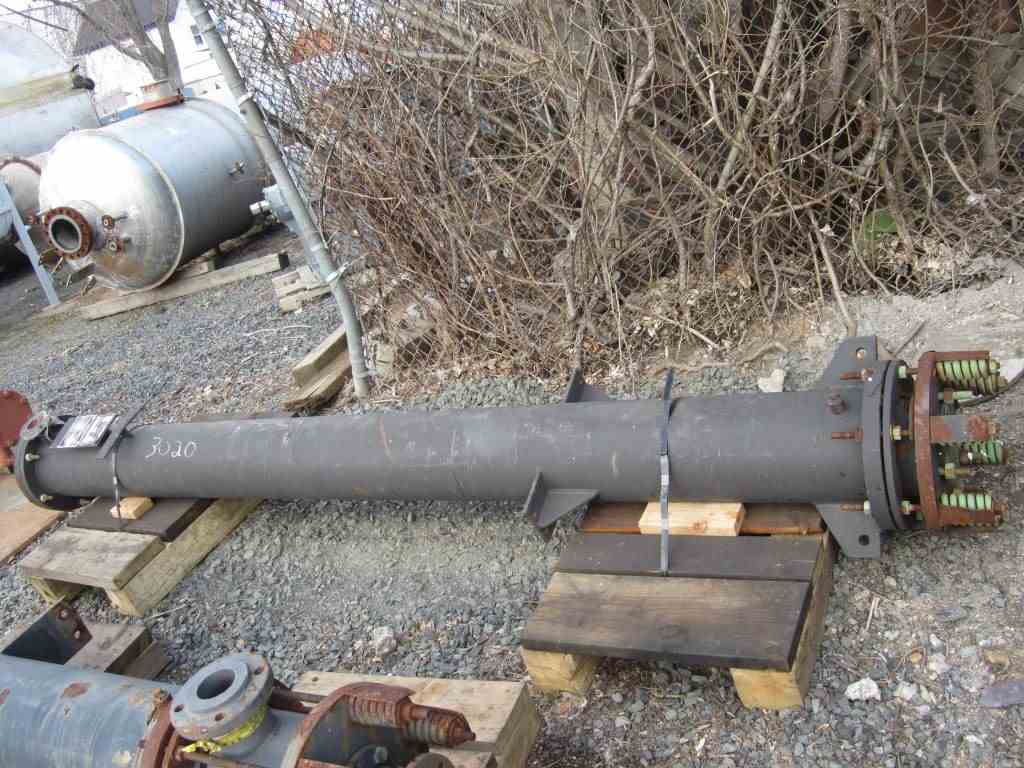

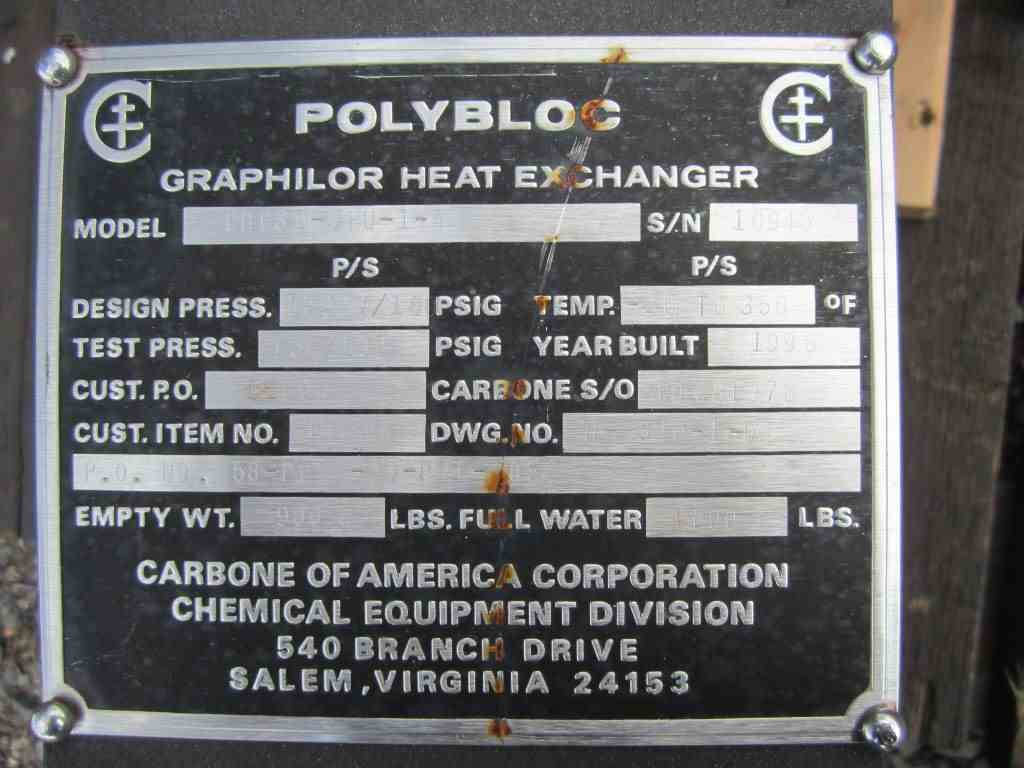

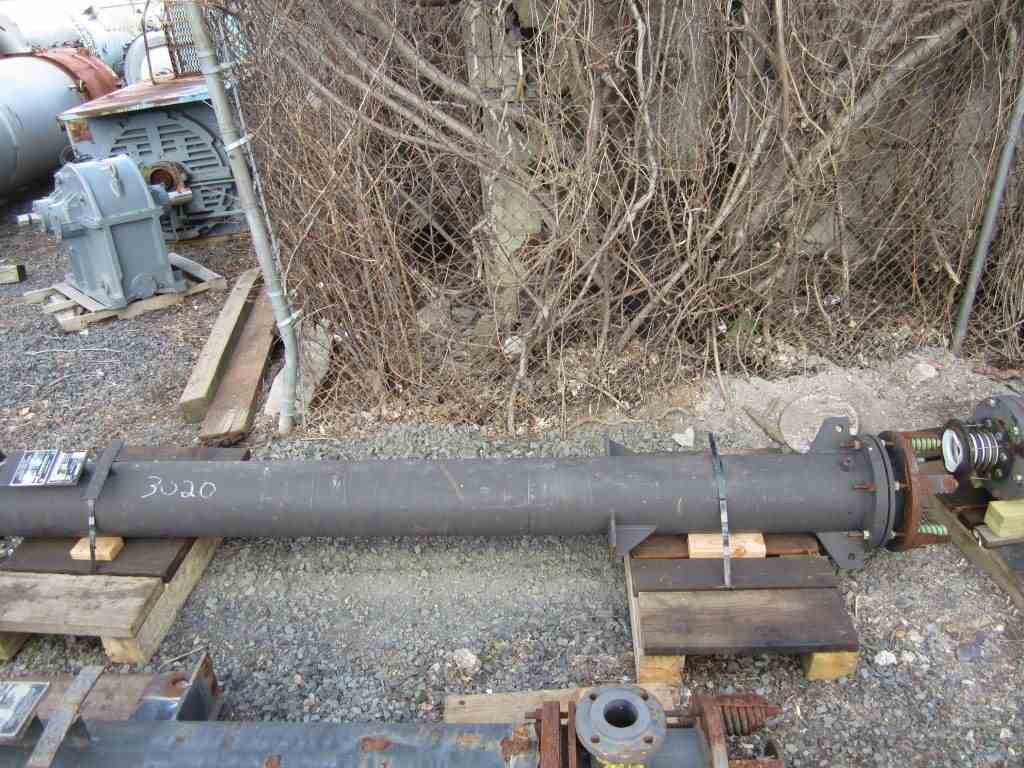

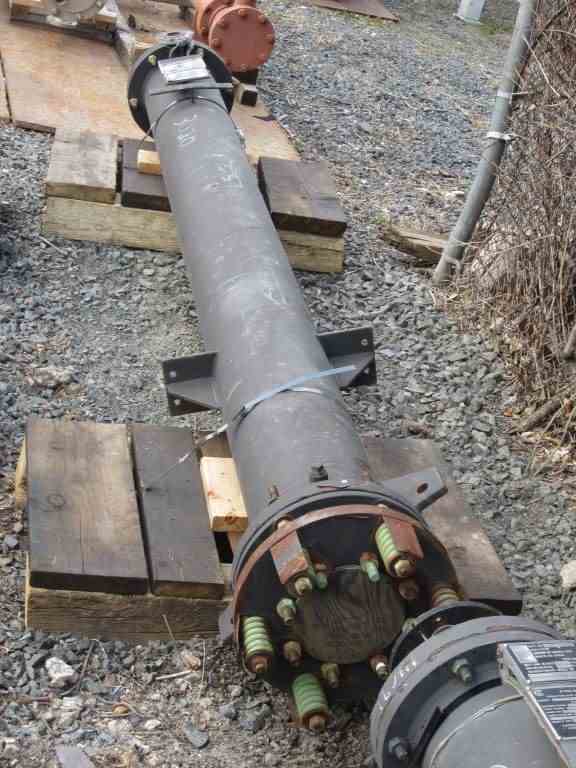

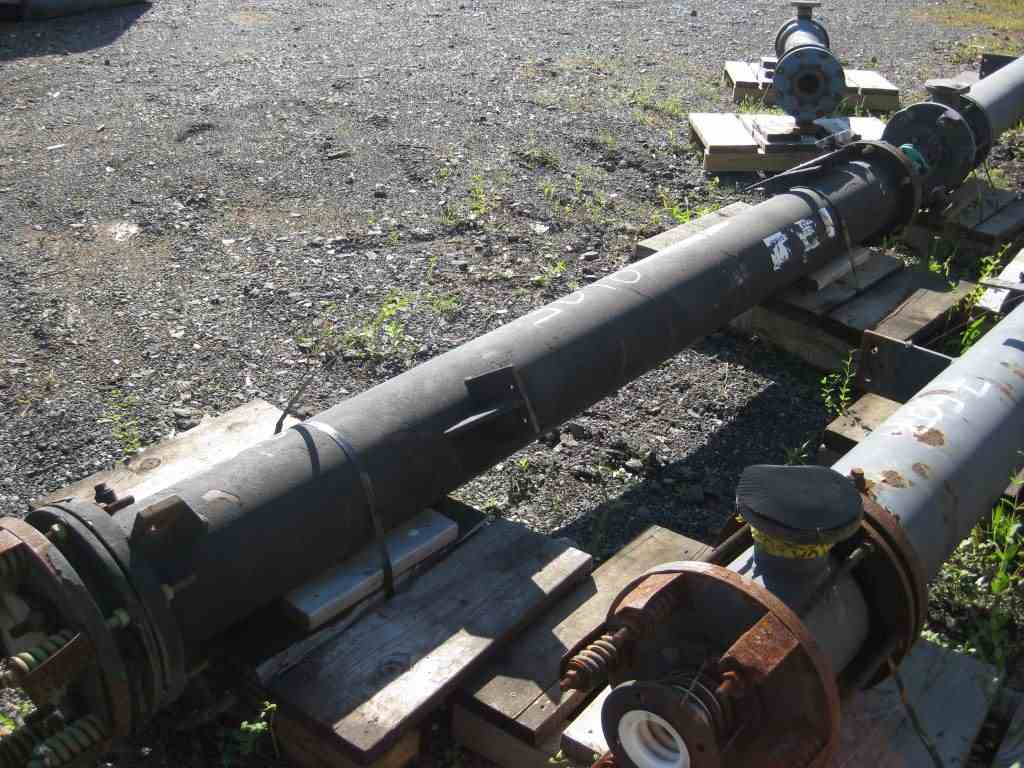

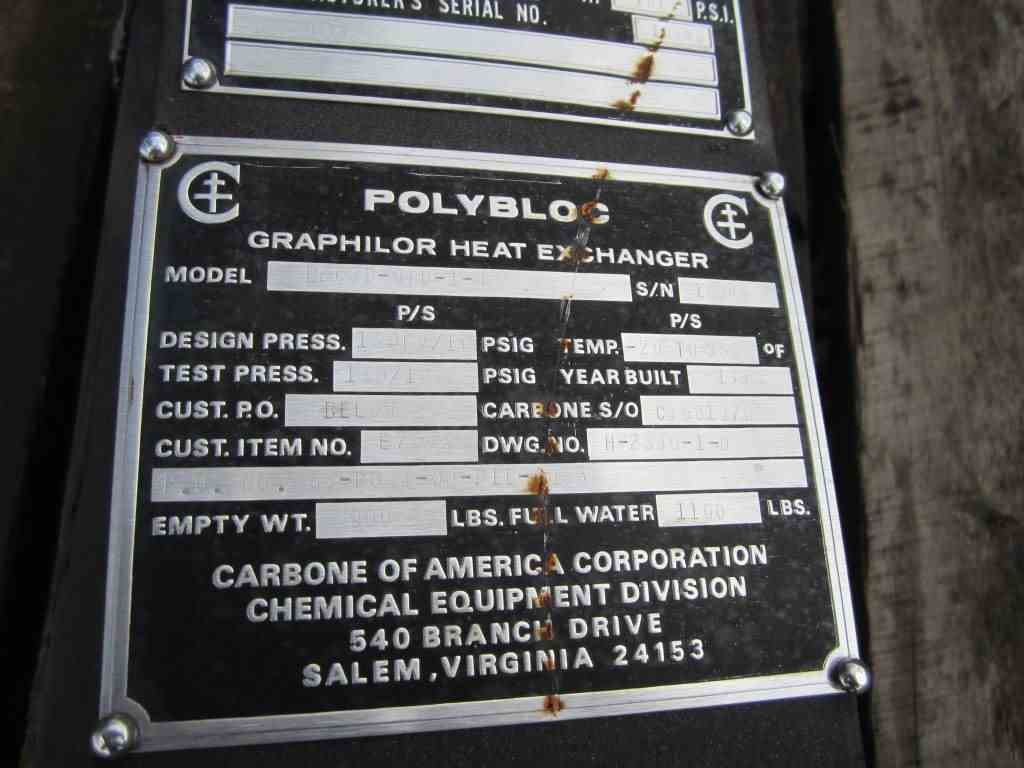

Used 155 square feet vertical Graphilor Polyblock heat exchanger. MFD by Carbone, model PBC8D-9PU-1-4, Serial # 10945, built 1997. ASME code stamped for 161 psi @ 350 deg. F, -20 deg. F , shell side; 100 psi & FV @ 350 deg. F, -20 deg F on tube side. Single pass axial, 4 pass radial. Shell 10.75" OD x 128" long. Openings: Process side (2) 6", Service side (2) 1-1/2", (2) 3/4" drain. NB# 1169.

Specifications
Manufacturer Carbone
Model# PBC8D-9PU-1-4
Material Graphite
Capacity 155 Sq Ft
SubCategory Block
