20 Cu Ft Andritz Paddle Dryer, Model GPD-5W18

20 Cu Ft Andritz Paddle Dryer, Model GPD-5W18
Other Views - click image for larger view
20 Cu Ft Andritz Paddle Dryer, Model GPD-5W18 20 Cu Ft Andritz Paddle Dryer, Model GPD-5W18 20 Cu Ft Andritz Paddle Dryer, Model GPD-5W18 20 Cu Ft Andritz Paddle Dryer, Model GPD-5W18 20 Cu Ft Andritz Paddle Dryer, Model GPD-5W18 20 Cu Ft Andritz Paddle Dryer, Model GPD-5W18 20 Cu Ft Andritz Paddle Dryer, Model GPD-5W18 20 Cu Ft Andritz Paddle Dryer, Model GPD-5W18 20 Cu Ft Andritz Paddle Dryer, Model GPD-5W18 20 Cu Ft Andritz Paddle Dryer, Model GPD-5W18 20 Cu Ft Andritz Paddle Dryer, Model GPD-5W18 20 Cu Ft Andritz Paddle Dryer, Model GPD-5W18 20 Cu Ft Andritz Paddle Dryer, Model GPD-5W18 20 Cu Ft Andritz Paddle Dryer, Model GPD-5W18
STOCK# 19440
Capacity 20 Cu Ft
Description

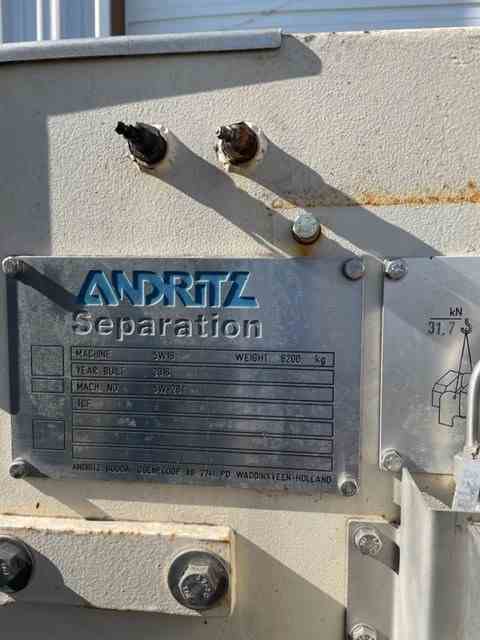

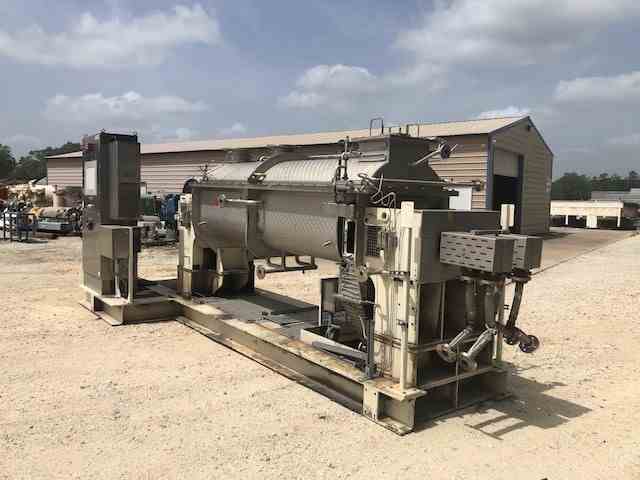

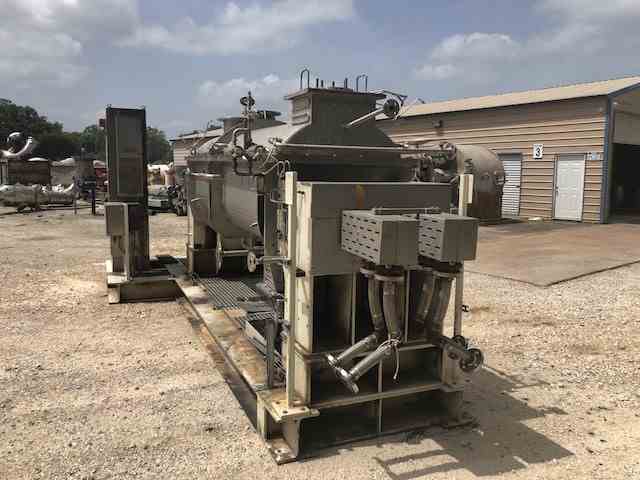

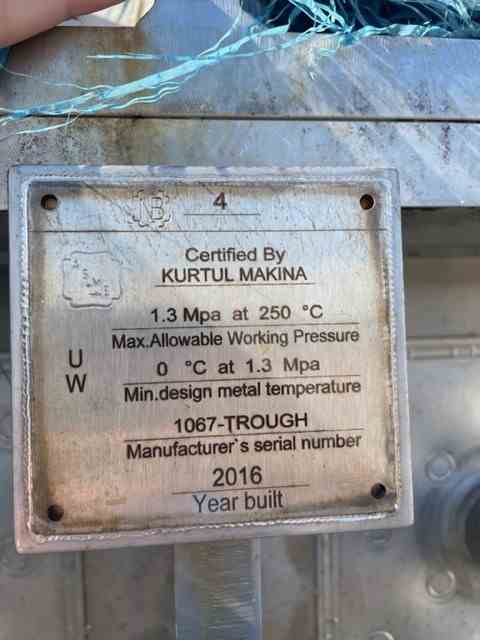

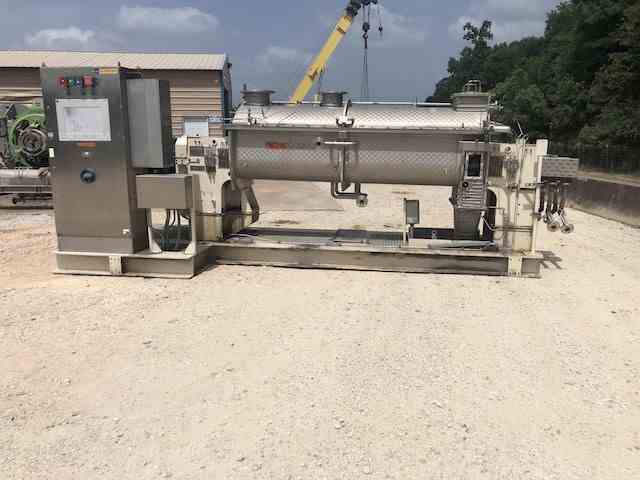

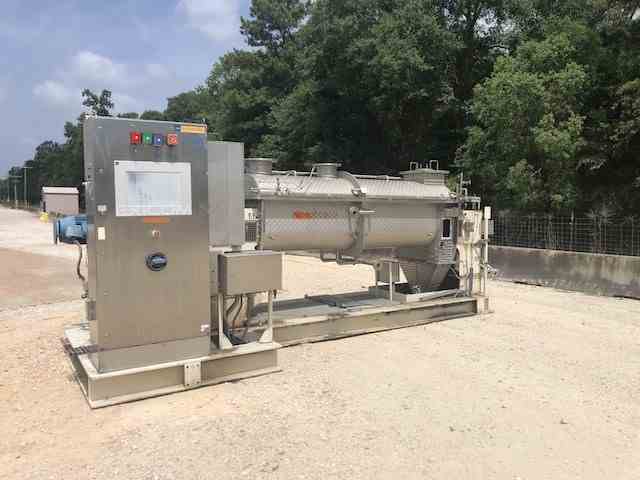

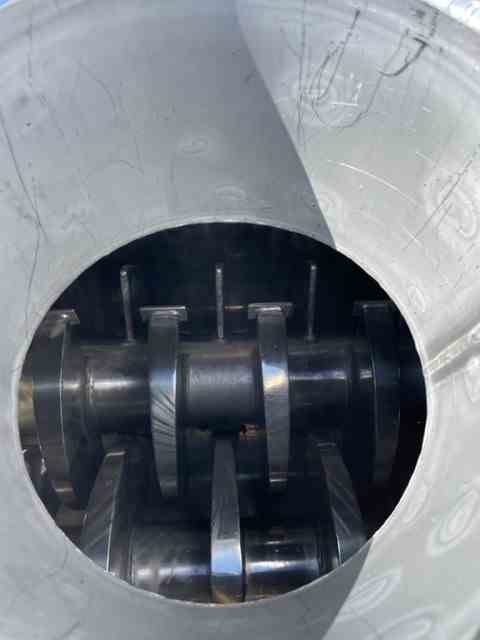

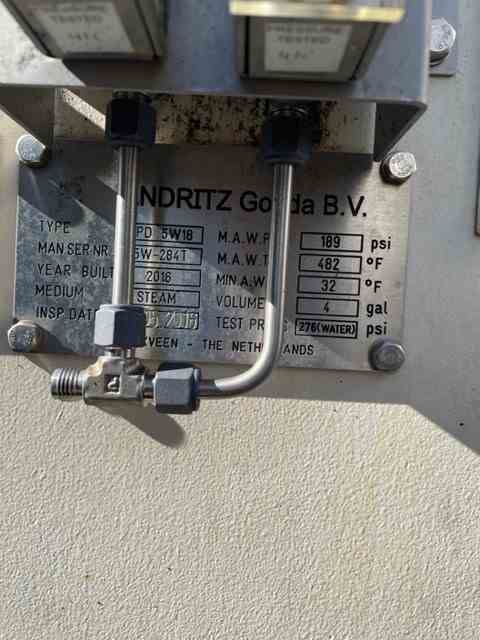

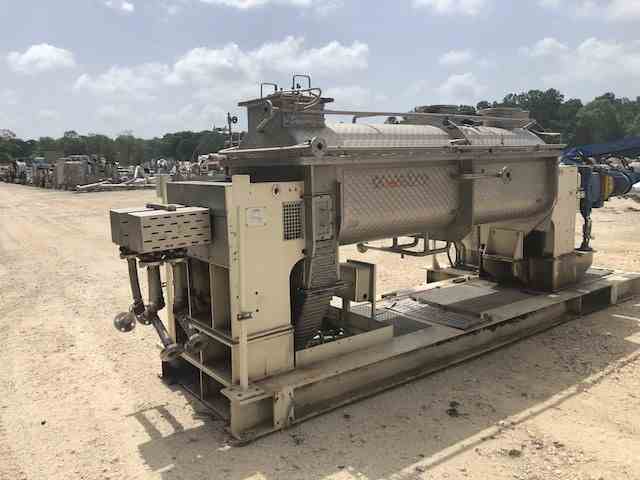

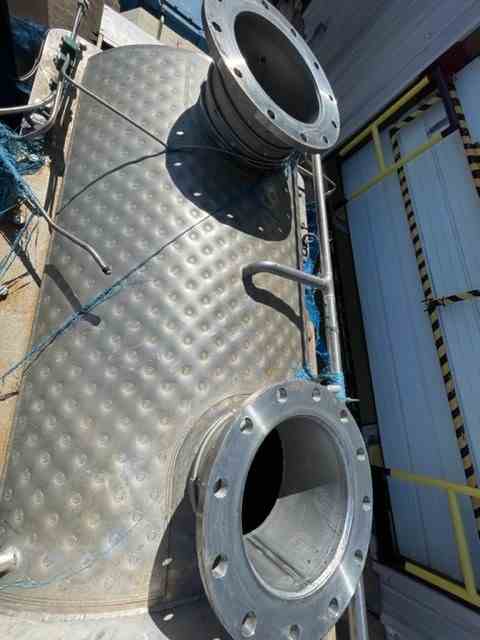

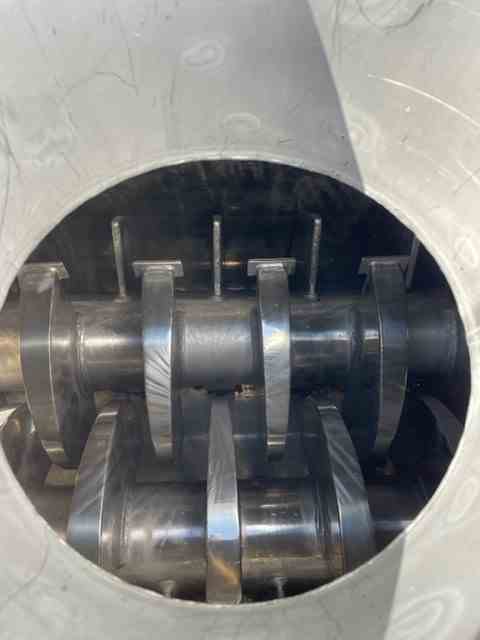

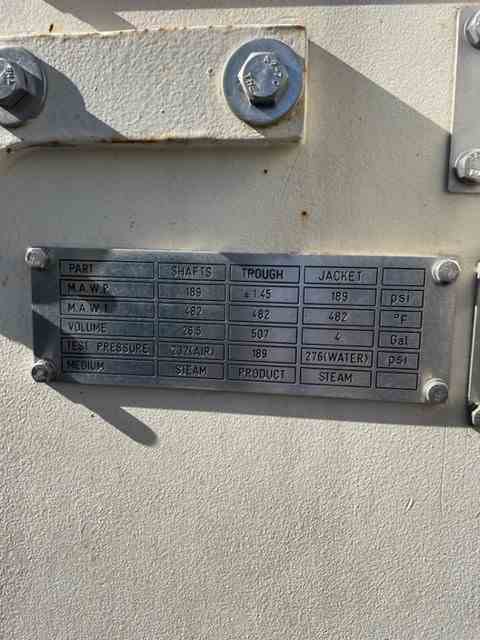

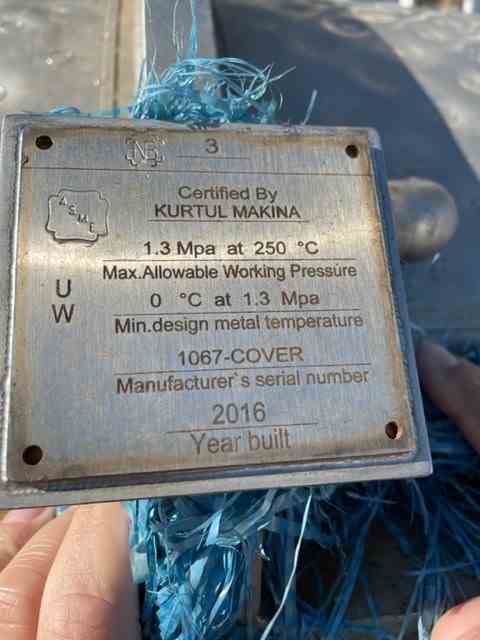

Used approx 20 cu ft Twin Shaft Stainless Steel Paddle Dryer. Manufactured by Andritz Gouda. Model GPD-5W18. Dimple type Jacket on Trough and Cover. Jacket rated 189 psi @ 482F. Shafts rated 189 psi @ 482F. Trough rated 1.45 psi @ 482F. 3'0" diameter x 10'6" Length. Heated Area 18.1 m2. Effective Product Volume 1.06 m2. Paddle Shaft Speed 14 rpm. (2) Kurtil Makina Steam Heated Shafts. Shaft Serial #1067-Shaft A and 1067-Shaft B. Unit Serial #5W-284A and 5W-284B. Built 2016.

Specifications
Manufacturer Andritz
Model# GPD-5W18
Material Stainless Steel
Capacity 20 Cu Ft
Category Dryers
SubCategory Paddle
