11390 Sq Ft Engineers & Fibricators Inc.  Stainless Steel Shell & Tube Heat Exchanger
Other Views - click image for larger view
11390 Sq Ft Engineers & Fibricators Inc.  Stainless Steel Shell & Tube Heat Exchanger 11390 Sq Ft Engineers & Fibricators Inc.  Stainless Steel Shell & Tube Heat Exchanger 11390 Sq Ft Engineers & Fibricators Inc.  Stainless Steel Shell & Tube Heat Exchanger 11390 Sq Ft Engineers & Fibricators Inc.  Stainless Steel Shell & Tube Heat Exchanger 11390 Sq Ft Engineers & Fibricators Inc.  Stainless Steel Shell & Tube Heat Exchanger

11390 sq ft engineers & fibricators inc. stainless steel shell & tube heat exchanger

Stock # 16868
Sold
Capacity 11390 Sq Ft

Overview

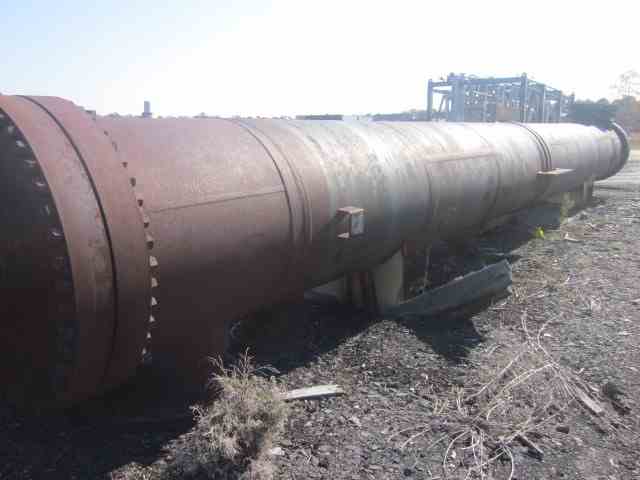

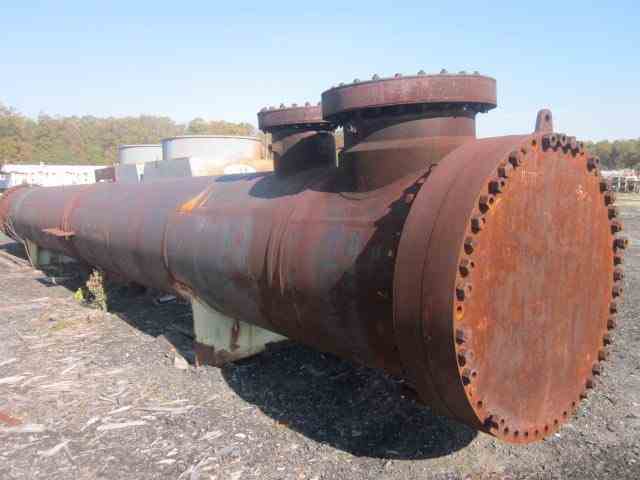

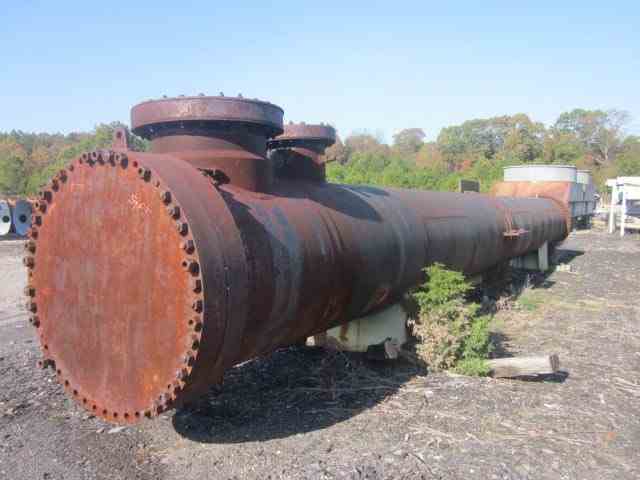

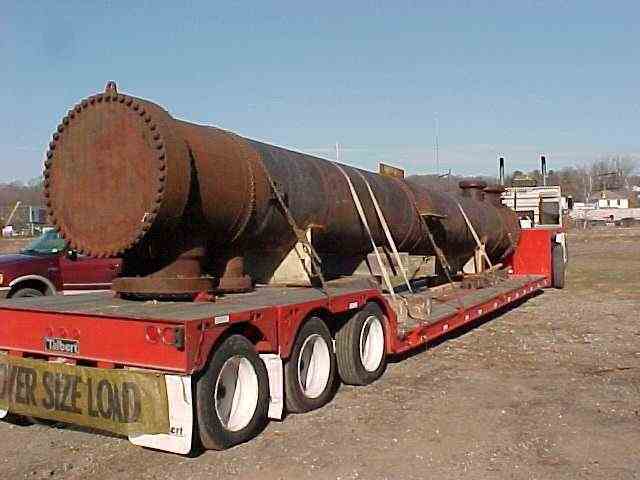

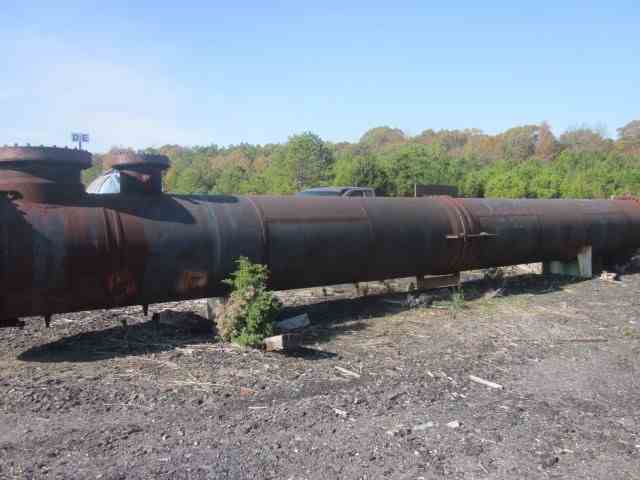

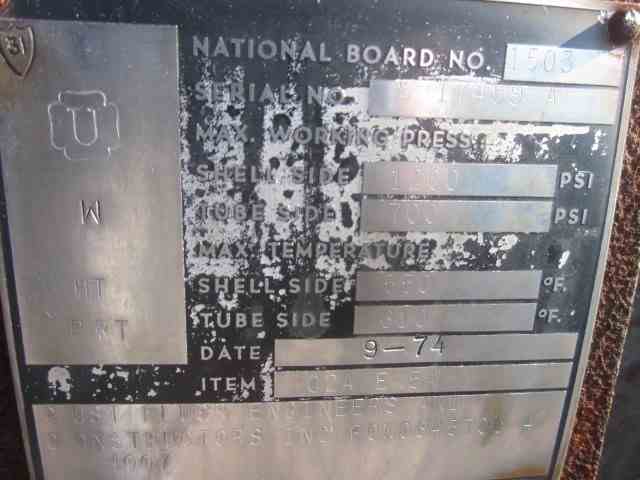

Used 11,390 Sq. Ft. Horizontal Heat Exchanger. CS Shell rated 1200 PSI @ 550 Deg F. 304-SS tubes rated 700 PSI @ 610 deg. F. Shell: 3'8" dia x 42'6" L. 1158 Tube Holes - .75" dia tubes X 34' L. 1 Pass Shell. 1 Pass Tubes. Shell Nozzles: (2) 12". Tube Nozzles (2)24". Bellows Type Expansion Joint. (2) Saddles welded to shell. Tema Type CEN. Built by Engineers and Fabricators Inc., MFG 1974. S/N: 16-17459-A. NB# 1503. Previous use: H.P. BFW Pre-Heater.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Engineers & Fabricators Inc.
Model
NA
Material
CS-SS
Capacity
11390 Sq Ft
