2063 Sq Ft Alfa Laval  Stainless Steel Compabloc Heat Exchanger
Other Views - click image for larger view
2063 Sq Ft Alfa Laval  Stainless Steel Compabloc Heat Exchanger 2063 Sq Ft Alfa Laval  Stainless Steel Compabloc Heat Exchanger 2063 Sq Ft Alfa Laval  Stainless Steel Compabloc Heat Exchanger

2063 sq ft alfa laval stainless steel compabloc heat exchanger

Stock # 15377
Capacity 2063 Sq Ft

Overview

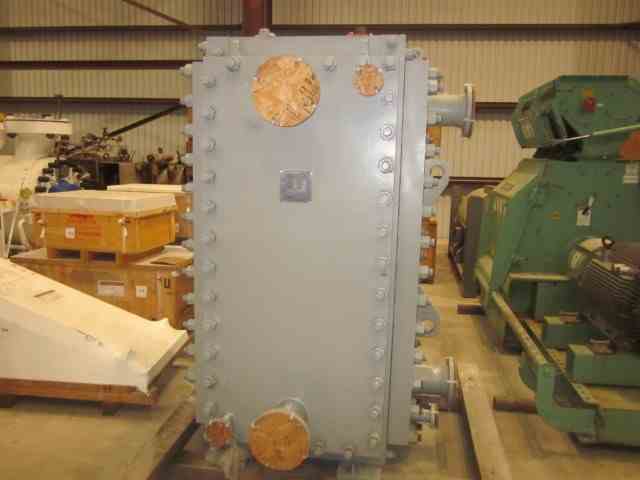

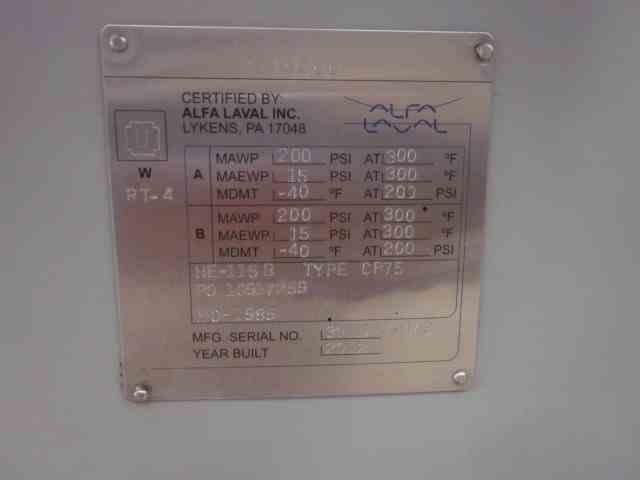

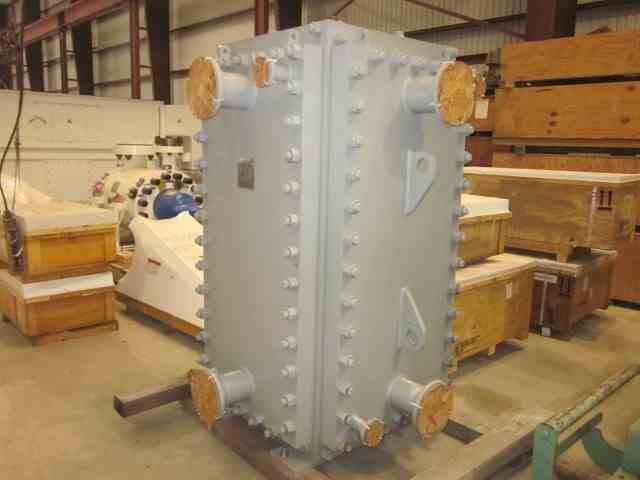

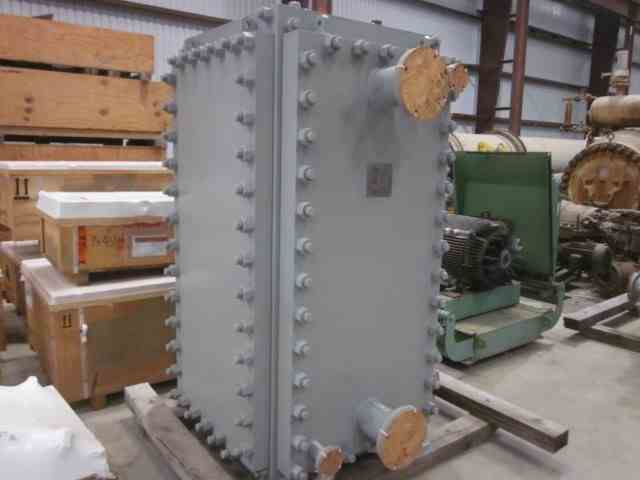

UNUSED PLATE HEAT EXCHANGER. CARBON STEEL FRAME, 316 STAINLESS STEEL PLATES. RATED FOR 200 PSIG/FV @ 300 F. (2) 6" TUBE NOZZLES, (2) 6" SHELL NOZZLES. MFG. BY ALFA LAVAL IN 2012. COMPABLOC SERIES, MODEL CPX75-V-300. 36"W X 36"L X 76"H.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Alfa Laval
Model
CPX75-V-300
Material
Unknown
Capacity
2063 Sq Ft
Subcategory
