9' Dia Feeco International Double Drum Dryer

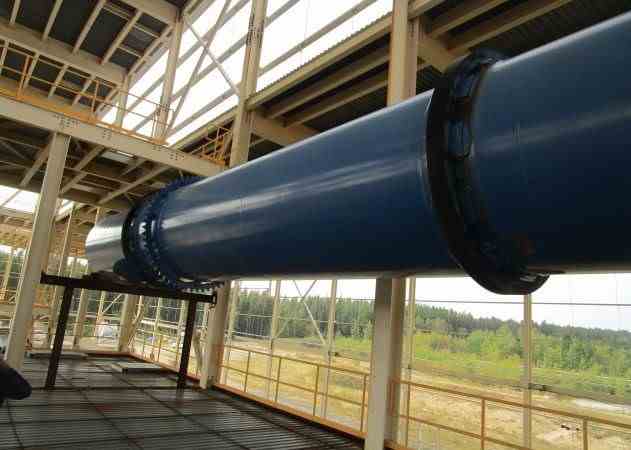

Unused 9’ Rotary Drum Dryer. Manufactured by Feeco International. Partially installed. 9'0" diameter x 60'0" Length. Carbon Steel Drum and Flights. 27,000 kg/hr @12% moisture content capacity. The drive rating 125 HP, 525 volts. Combustion Chamber: Specially designed Feeco right angle combustion chamber, maximum heat release of up to 15 milion BTU/HR. Using natural gas 15 million BTU/HR including burner, main gas valve train, pilot valve train, control panel with flame. Safety and 30 HP Combustion Air Blower Burner System. Rotary Drum: (1) FEECO International parallel flow, straight tube type rotary drum dryer, 9'0" (2743 mm) inside diameter by 60' (18288 mm) long of A36 plate construction. Complete with inlet end plate and the following: Internals: 10'0" (3048 mm) of advancing spirals, 5'0" (1524 mm) of radial tumbling flights, full curtain formed steel flighting. A36 steel plate. Flights are bolted to gusseted angle support welded to drum shell. 5'0" (1524 mm) bare shell section at discharge end, allows for particulate settling. Tires: Seamless, machined-face, 4140 forged steel, 230-270 BHN. Free-floating design for thermal expansion, travel over machined pads. Wheels: Machined face, high carbon AISI 4340 steel, 280-320 BHN. Wheel Bearings: (8) anti-friction pillow block bearings. Wheel Shaft: Machined from cold rolled steel to be compatible with bearing design. Gear & Pinion: Driven pinion on a jackshaft with bearings. Machined forging, reversible and split girth gear. 1.0 DP gear and pinion, safety design factor of 2. Gear Lubrication: (1) automatic gear lubrication system. Thrust Rollers: Machined-face, high carbon steel, complete with special double roller bearings for longitudinal control of dryer. Take-Ups: Complete heavy bi-directional adjusting screws, provided for aligning all wheels, drives, and thrust roller assembly. Inlet Breeching: A36 steel fabrication. Discharge Breeching: Oversized discharge hood, reduced dust losses to be fully enclosed. Includes flanged gas outlet and A36 steel. Seals: A FEECO double labyrinth seal. Guards: Four-wheel guards, 12-gauge carbon steel to guard nip points of trunnion wheels, one pinion guard, full girth guard. Wheel & Tire Lubrication: Graphite block lubricators to prevent excessive wear to wheels and steel tires. Trunnion, Pinion, & Drive Unit Base: Bases of heavy structural steel. Built in 2014, Model # 9X60. Serial #D20134444.
