2500 KW Siemens Steam Turbine Generator

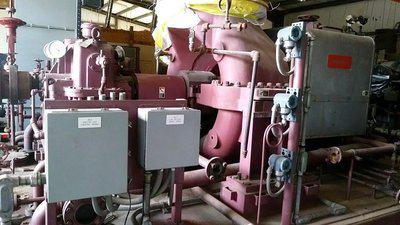

Used 2500kW Siemens (Dresser-Rand) frame S-6 single valve multi stage condensing steam turbine. 6000 rpm, inlet steam 200 psig, 500 deg f, exhaust 2”hga, CW rotation looking from governor end, 1 curtis 6 rateau stages, 6” class 600 inlet size, 30” class 125 up exhaust. Hand valve for part load operation. Lube oil system, gland steam condenser. Serial number D-4060. Includes Gear Reducer Nuttall Gear 2500 Kw, Cat 8016-6L, service factor 1.3, output rpm: 1800. Generator: Ideal 2941 kva, 2500 kw, 4160 v, 3 phase, 60 hz. Air cooled with brushless exciter. 1800 rpm. Condenser: Graham surface condenser, 3271 sq. ft, 43,000 lbs/hr steam condensed. Package includes Steam turbine, gear reducer, generator, trip and throttle valve, lube oil system mounted on common skid Condenser, air ejector, condensate extraction pumps with motor, Generator terminal box with surge protection system, cts, pts, Local turbine gauge board, Neutral ground resister, Manuals and drawings, Lube oil system with lube oil tank, ac and dc lube oil pump, lube oil filter, lube oil cooler, Valtek governor actuator, Exhaust pipe Expansion joint, Lube oil piping supply and return from lube oil tank to turbine and generator, Gland steam condenser and piping, Drain piping near turbine, Generator terminal box with surge arrester and capacitor, Coupling with guard, Expansion joint with pipe from Turbine exhaust to Condenser.
