Phoenix Equipment has a large inventory of used, unused, and reconditioned equipment from Schenk. Phoenix Equipment offers a wide selection of categories from Schenk. If you can't find the exact Schenk equipment you are looking for, contact us and we can help you find it.

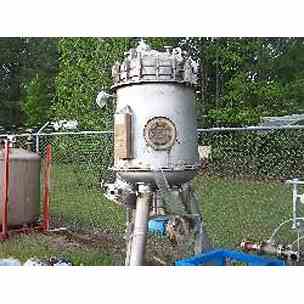

Used 265 gallon fill capacity Schenk centrifugal discharge filter type ZHF-SR 15/10 KLKB1. Pressure leaf design. Hastelloy C-22 wetted parts. 16 gallon capacity heated jacket. Internal rated 100/FV @ -20 - 150 deg C. Jacket rated 100/FV @ -20 - 150 deg C. Tapered vessel KLK design. Automatic cake discharge with scraper device. 10 sq. meter filtration area with upgrade capability to 15 sq. meter. (20) filter elements, (1) separation filter element, and (2) scavenge plates. Seals are dry running, double acting mechanical type. 12â€ diameter butterfly discharge. Built 1999. Driven by 20 HP 3/60/460 volt 1800 RPM motor. National Board #1480.

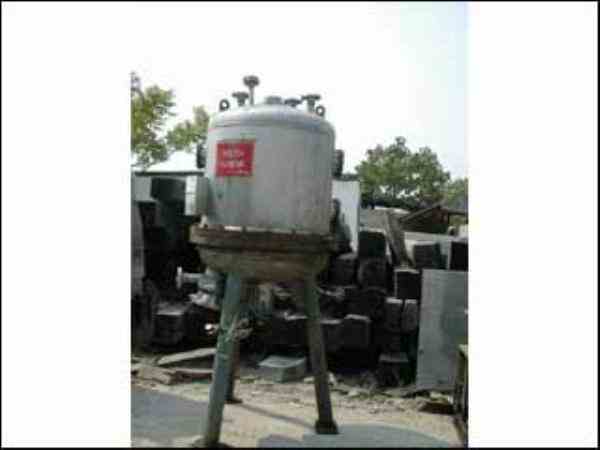

Schenk Centrifugal Discharge Pressure Filter, Model ZHF-SR-10-KL, stainless steel construction, 9.87 square meter surface area, .3 cu. liter cake capacity, rated 75 PSI at 212 degrees F internal, bolt on bottom head, 805 MM diameter plates with 30 MM spacing, on legs with approx. 10 H.P. motor drive, Chamber Serial #77-019-C, Schenk Serial #SF-57, National Board #5163.

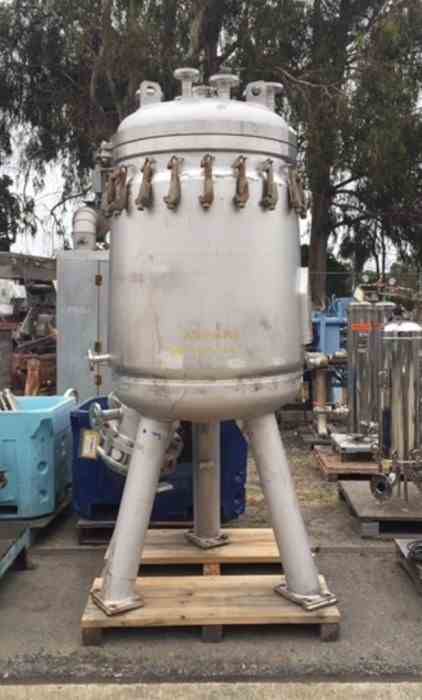

Used Centrifugal Pressure Leaf Filter, manufactured by Schenk, type ZHF-R15/10 KLK. Unit has twenty-three (23) plates measuring 32" diameter for a total cake capacity of approximately 120 square feet. Includes 265 gallon 316L stainless steel vessel rated for full vacuum and 100 PSI @ -4 deg. F. to 300 deg. F. Vessel is jacketed for 100 PSI @ - 4 deg. F. to 300 deg. F. Includes 12" diameter solids drain and 7-1/2" center-bottom liquids drain. Includes 6" diameter sight glass. Vessel number 3624, serial number 2121.
