Used Precision Stainless, Inc Process Equipment

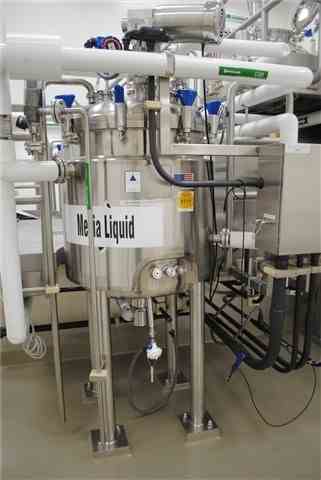

Unused 200 liter (Approx. 50 gallons) Working Volume Precision Stainless Stainless Steel Bioreactor Vessel. Internal rated 50PSI/FV @ 350 deg F. Jacket rated 100PSI/FV @ 350 deg F.Interior 12-15Ra, mirror; Exterior ground & polished; 4-baffles; Centered mixer port. (Vessel only - No Agitator)

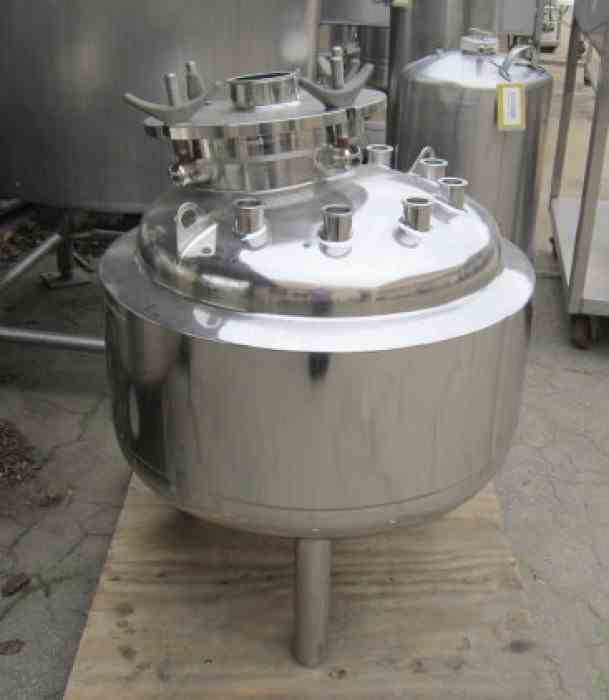

Used 18 gallon (70 liter), 316 stainless steel, Reactor Body/Tank manufactured by Precision Stainless. Internal rated 15 PSI/FV. Jacket rated 45 PSI at 392 deg. F. Unit has bolt on top with (5) 1-1/2" inlet; (1) 4" center inlet and (1) 4" side inlet. Unit has 1" inlet/outlet on jacket, and 1-1/2" center bottom discharge. Unit manufactured in 1997, national board 7209, serial number 5209-1.

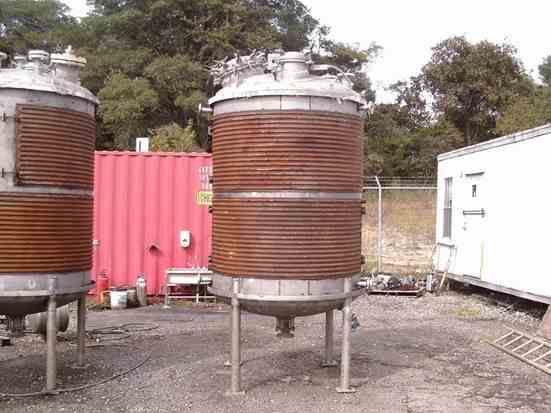

Used Precision Stainless Steel 900 gallon vertical 304 stainless steel insulated mix tank. 5’ diameter X 6’ 6” high straight side. Rated 75 PSIG @ 160 degrees F. Rated Vac 29.92” HG. Shell thickness .250”, Head thickness .312”. Equipped with carbon steel panel coil jacket on side wall. (No Pressure Rating) National Board# 2166, S/N 8568-5. Top Fittings: 18” manway, 12” manway, (1) 8”, (1) 4”, (1) 3”, (1) 2”. Equipped with Lightnin Model XJSS-174 dual flight 3 blade agitator, powered by 1.74 HP, 60HZ, 3 phase, 208-220/440 volt motor. (2) 1 1/2” side top inlets. 3” center bottom drain. Built 1988. (Qty - 2 available)

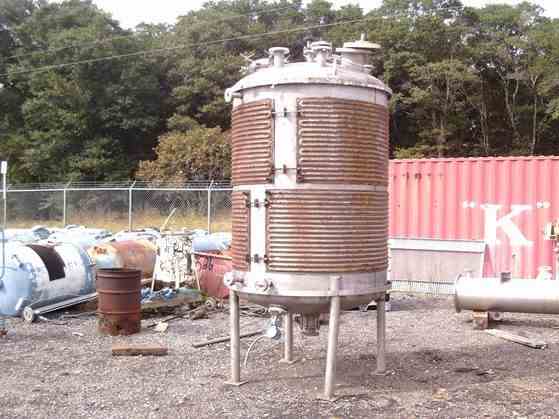

Used Precision Stainless Steel 900 gallon vertical 304 stainless steel insulated mix tank. 5’ diameter X 6’ 6” high straight side. Rated 75 PSIG @ 160 degrees F. Rated Vac 29.92” HG. Shell thickness .250”, Head thickness .312”.Equipped with carbon steel panel coil jacket on side wall. (No Pressure Rating). National Board# 2167, S/N 8568-6. Top Fittings: 18” manway, 12” manway, (1) 8”, (1) 4”, (1) 3”, (1) 2”. (2) 1 1/2” side top inlets. 3” center bottom drain. Built 1988.(Qty - 2 Available)

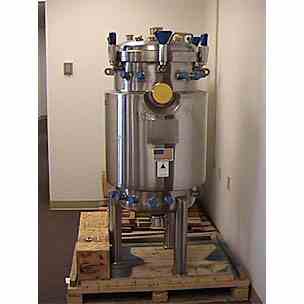

One used 400 Liter Precision Stainless, 316L Stainless Jacketed Tank. S/N 210636-12. Built in 2001. Vessel MAWP 50 PSI at 302 Degrees. Jacket Rated 100 PSI at 302 Degrees. With single propeller agitator, 0.5 HP motor. National Board 9446.
