Phoenix Equipment has a large inventory of used, unused, and reconditioned equipment from Krauss Maffei. Phoenix Equipment offers a wide selection of categories from Krauss Maffei. If you can't find the exact Krauss Maffei equipment you are looking for, contact us and we can help you find it.

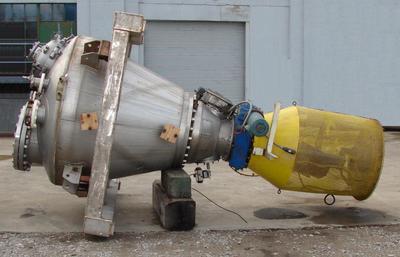

Used 1400L Vacuum Dryer. Manufactured by Krauss Maffei. Model MT 1/200.. Constructed of 316L stainless steel. Interior has polished surface. Conical vessel has a capacity of 49.43 cu ft with working volume of 35.3 cu ft. Dryer uses an 8" diameter inclined orbiting screw, driven by a 10 HP drive to gently agitate product while drying. Can dry particles up to 5 mm in size. Rated for Full Vacuum/150 psi @ 450f on jacket and internal. Drying temperature maximum is 302 f. The top has an 18" manway with 6" sight glass, 18" flanged fitting, 4" sight glass, (2) 3" flanged fittings, (2) 2" flanged fittings, 6" flanged fittings and (2) 1" threaded fitting for the top jacket. The side has (2) 2" flanged fittings for the body jacket. The bottom has a 10" flanged discharge fitting with pneumatically operated flush mount valve and (2) 1" threaded fittings for bottom jacket. Serial # 7098. National Board # 21424.

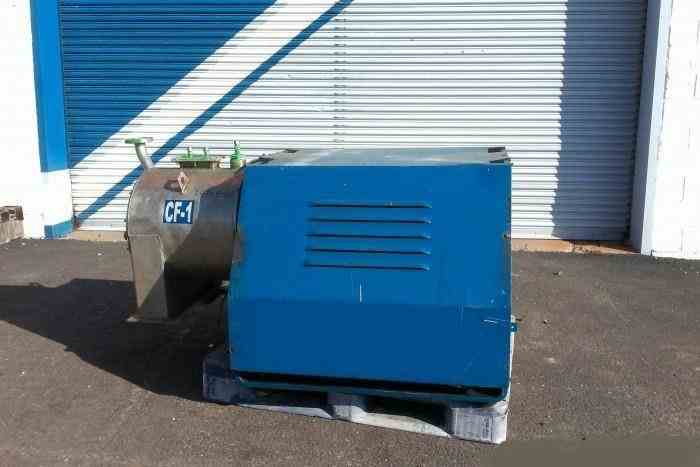

Used Krauss Maffei model SZ-21 T316 stainless steel pusher centrifuge. 250mm diameter single stage cylindrical basket. ADM speed 2900, ADM density kg/CBM 1700, ADM filling 10 KGS. Equipped with 7.5 HP motor, 230-460/3/60.

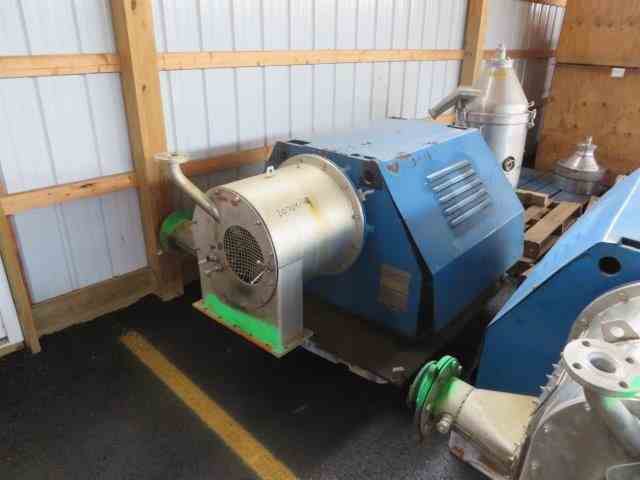

Used Krauss Maffei model SZ-21 T316 stainless steel pusher centrifuge. 250mm diameter single stage cylindrical basket. ADM density kg/CBM 1700, ADM load 9 kg. Equipped with 7.5 HP motor, 230-460/3/60. 2400 rpm.

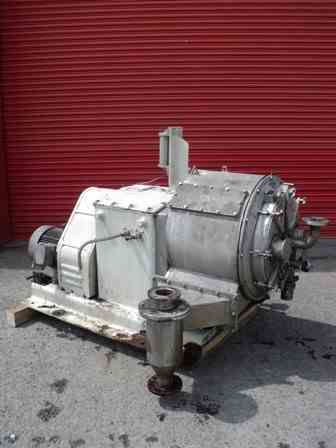

USED KRAUSS MAFFEI MODEL SZ50-1-B-L 316TI STAINLESS STEEL 2-STAGE PUSHER CENTRIFUGE. HAS 1.4581 CAST STAINLESS STEEL BASKET. FEED PIPE THROUGH FRONT DOOR. FIRST STAGE IS 431MM DIAMETER X 125MM LONG. SECOND STAGE IS 500MM DIAMETER X 224MM LONG. BASKET DRIVEN BY 22 KW 500 VOLT 3/50 1455 RPM MOTOR AT 1400 RPM. PUSHER DRIVEN BY 7.5 KW 500 VOLT 3/50 2930 RPM MOTOR. 1.4571 STAINLESS STEEL HOUSING. MAXIMUM FILLING CAPACITY 26KG WITH MAXIMUM PRODUCT DENISITY 1.3 KG/M3. MOUNTED ON BASE.

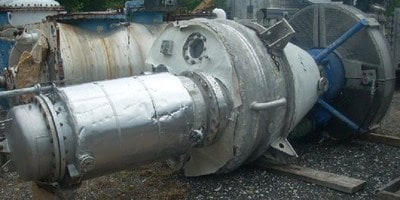

Used 35 cu ft (1 M3) Krauss Maffei Titus Nauta mixer/conical vacuum blender and dryer, conical dryer. Model TMT1/200. 316 TI Stainless steel vessel with 316L stainless steel screw. Rated -14.5 PSI/ 40 PSI @ 330 deg F (-1/3 bar g @ 165 deg C). Jacket and Screw rated 90 PSI @ 330 deg F (6 bar @ 165 deg C). Screw is 8" dia (200mm). Variable speed, rotational speed of screw blending/drying is 9.7 to 97 RPM. Discharging downward 9.7 to 18 RPM, discharging upward 9.7 to 27 RPM. Jacket capacity is 45 gallon (170 L), screw capacity is 3 gallon (12 L). Main drive is 15 HP, 460 V UL Class 1/2 group C/D. Discharge conveyor is 3 HP, 230/460 V. S/N: 10485-2.
