Phoenix Equipment has a large inventory of used, unused, and reconditioned equipment from A&B Process Systems. Phoenix Equipment offers a wide selection of categories from A&B Process Systems. If you can't find the exact A&B Process Systems equipment you are looking for, contact us and we can help you find it.

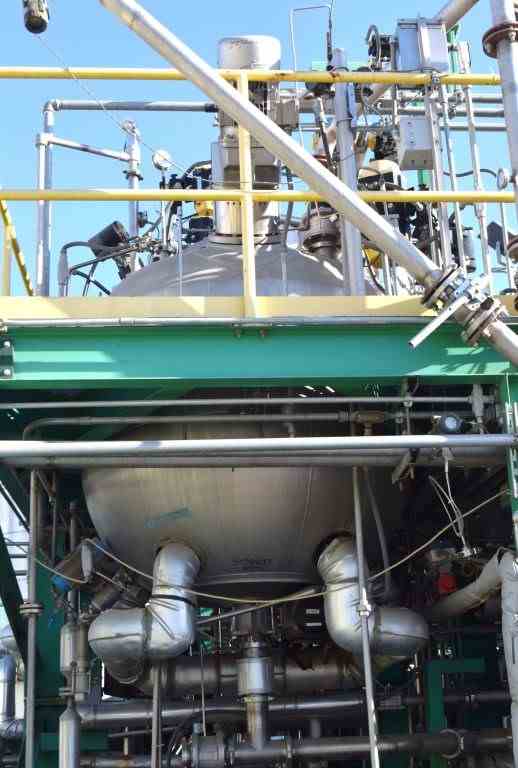

Used 400 Gallon A&B Process Systems 304L Stainless Steel Reactor. Vertical. 54" Diameter x 24" straight side, Dished top, jacketed hemispherical bottom. Internal rated 150 psi at -20 to 425 degrees F., 304L stainless steel jacket rated 150 psi at -20 to 425 degrees F. Off center top entering angled anchor agitator with scrapers, driven by a 10hp, 3/60/230/460 volt, 1770 rpm gear motor, ratio 40.80 to 1. Top 18" man way with davit arm cover, 4" center bottom outlet. Mounted on (3) side lugs. Serial# 1118160301B, National Board#1606, built 2012.

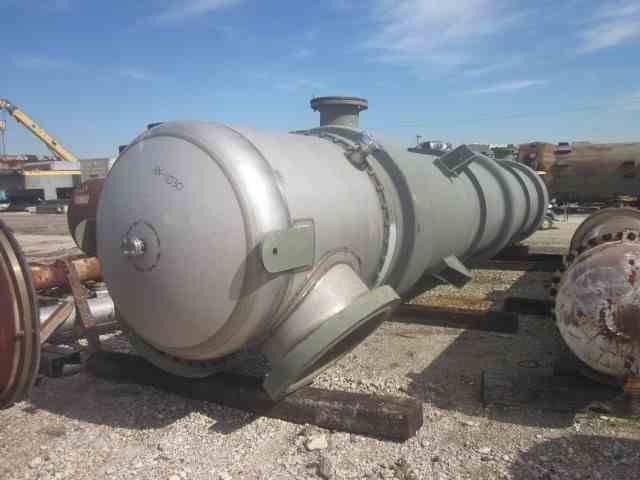

UNUSED 9760 Sq. Ft. Vertical Heat Exchanger. CS Shell rated 150 PSI @ 400 Deg F. 304-SS tubes rated 75 PSI @ 500 deg. F. 304L-SS Head. Shell: 4'6" dia x 24'L. OAL: 30'2". 1554 Tube Holes - 1" dia tubes X 24'L. 1 Pass Shell. 1 Pass Tubes. Shell Nozzles: 2-12",. Tube Nozzles 2-30". Built by A&B Process Systems, MFG 2009. S/N: 0909450607, NB# 839.

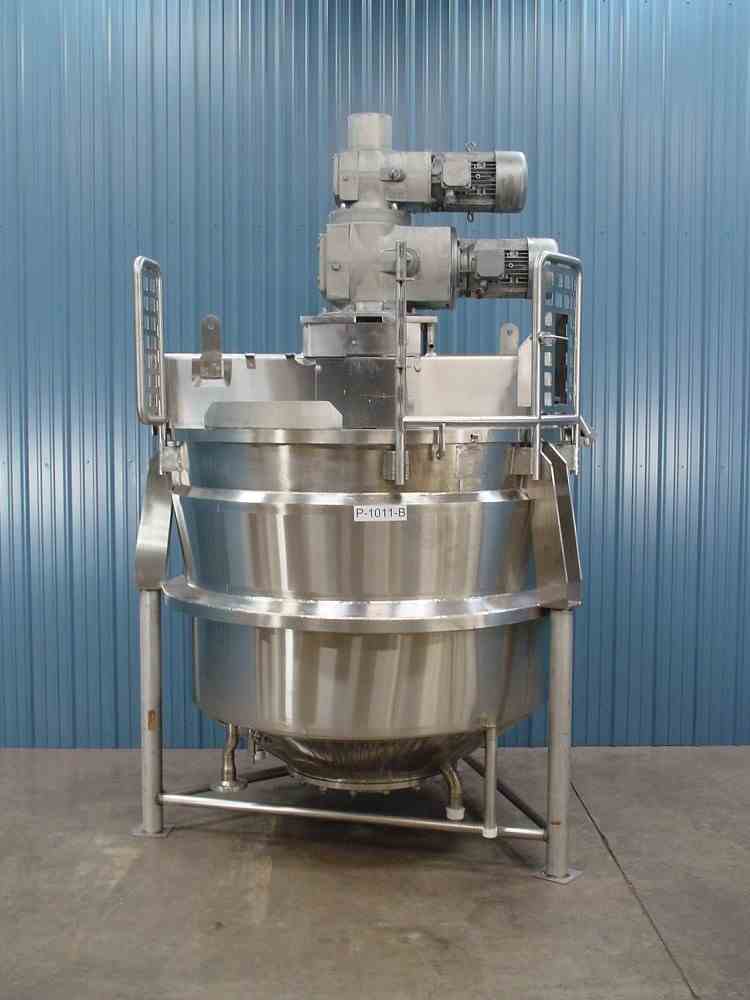

USED 600 GALLON DISHED BOTTOM JACKETED KETTLE. MFR A&B PROCESS. PRODUCT CONTACT SURFACES 316L STAINLESS STEEL. CENTER BRIDGE WITH SINGLE LIFT TOP COVER, OPPOSITE SIDE OPEN WITH SAFETY GUARDING. HEAVY DUTY DUAL MOTION 10 HP, 22 RPM WIDE AND SIDE SWEEP AGITATION WITH 7.5 HP, 37 RPM COUNTER ROTATING PROPELLERS. 4" FLANGE OUTLET WITH TWO AIR OPERATED BALL VALVES. 150 PSI ASME JACKET. DUPLEX 2205 STAINLESS STEEL HEAT TRANSFER SURFACE. INTERNAL STEAM SPARGER RING. (3) MOUNTING LUGS. SERIAL #1411190301A. NATIONAL BOARD #2284. BUILT 2014.

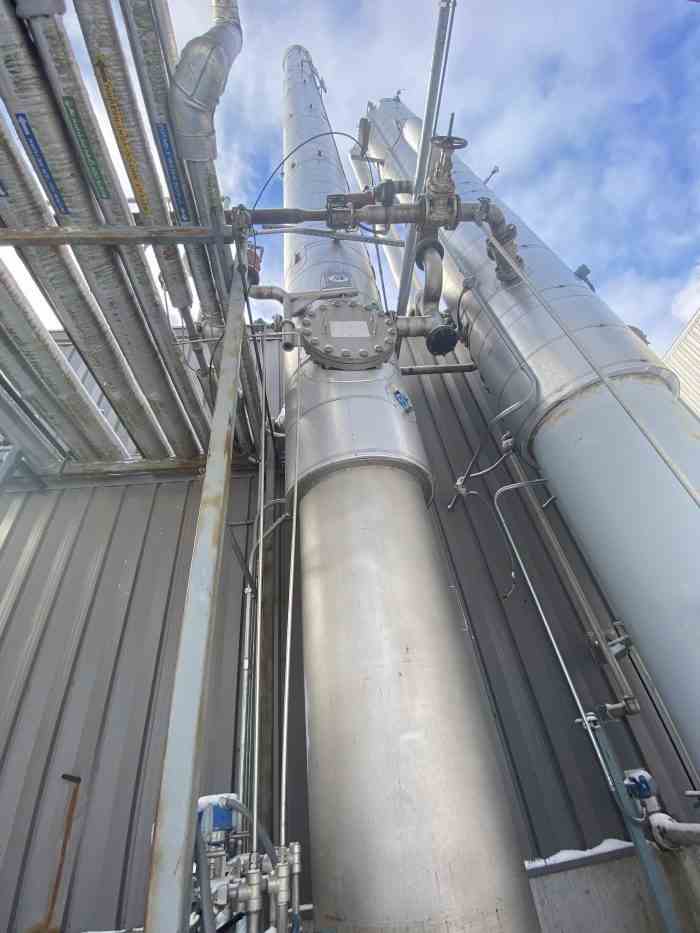

Used 30" Diameter x 60' Tall 316 Stainless Steel trayed Column. Manufactured by A&B Process Systems. (30) 316 Stainless Steel trays rated 50 PSIG@350F. Built 2011. last used as Rectifier/Stripper column.
