Phoenix Equipment has a large inventory of used, unused, and reconditioned equipment from Cogeim. Phoenix Equipment offers a wide selection of categories from Cogeim. If you can't find the exact Cogeim equipment you are looking for, contact us and we can help you find it.

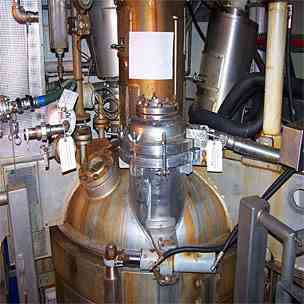

Cogeim hastelloy C-22 Pan Dryer Model EV1500. Volume 277 gallons working capacity. Shell rated 15/FV @ 350oF. Half pipe coil jacket rated 116 PSI @ 350oF. Movable bottom with bayonet ring. Heated agitator with dry mechanical seal hydraulic drive. Lumpbreaker with mechanical seal and hydraulic drive. Hydraulic power pack for discharge hatch, movable bottom and bayonet ring, gearbox and agitator. Modicon PLC package with complete programming and documentation. S/N (dryer 1242), (bag filter 1243). Built 1999 with electro-polished interior. Previously used in pharmaceutical service. National Board stamped.
Used 5 Square Meter 3V Cogeim Model FPP/XD500 316L Stainless Steel Nutsche Filter. Shell rated 75 psi/FV (5.2 bar/FV) at -4 F to 536 F (-20 C to 280 C). 304 Stainless Steel 1/2 pipe jacket rated 150psi/FV (10.34 bar/FV) at 536 F to -4 F (-20 C to 280 C). Capacity 13,100 liters. Shell dimensions: 8'6.362" x 6'3.354" vertical. Openings: manhole - 23.22", side discharge hatch - 18.50", product inlet -NPS4 and others. With hydraulic driven 40HP heated shaft. Mechanical seal. Serial # 1334, National Board # 301, Built 2000. Estimated weight - 34,254 lbs (15,570 KG).
Cogeim hastelloy pan dryer model D-571. Total Volume 377.29 gallons. Total surface area 73 Sq. ft./6.78 Sq. m. (Shell surface area 37.13 Sq ft/3.45 Sq. m.). Type EV1500. Contact parts hastelloy SB-575 N06022, High. Rated 22.00 PSI/Full Vacuum @ 350oF. Jacket rated 116 PSI @ 350oF. Half pipe coil jacket movable bottom with bayonet ring. Heated agitator, dry mechanical seal, lumpbreaker. Hydraulic power pack includes hydraulic motor, gearbox for discharge hatch, hydraulic cylinders for movable bottom and bayonet ring, hydraulic motors for agitation and lumpbreaker device. S/N 812. National Board # 80. Built 1994 with electro-polished interior.

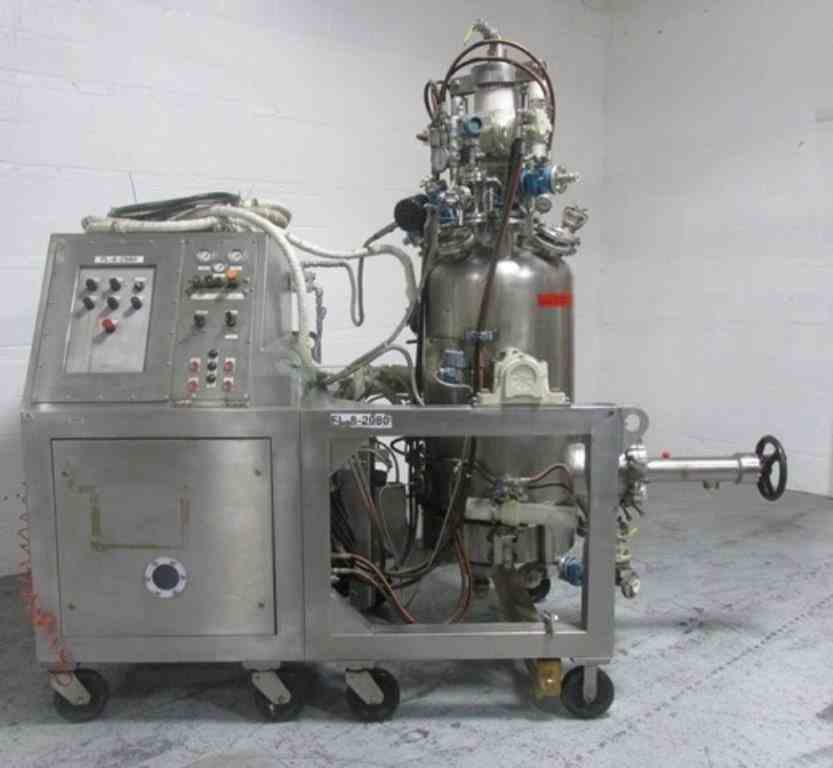

Used .2 sq meter Cogeim agitated Nutsche Filter, Model FPP050SD-FM, .2 sq meter surface area, Hastelloy C22 construction, rated 150 psi and full vacuum at 350 f internal, jacketed vessel and bottom plate for 150 psi and full vacuum at 350 f, removable bottom filter plate with hydraulically activated quick release clamp and plate lift/lower mechanism, side discharge with manually operated plug valve, hydraulically driven cored shaft with (2) wing agitator, mechanical seal, on portable stainless steel base with on board 10 HP, 460 volt hydraulic power pack and controls, Job# 931.022, Serial# 795, national board# 82, built 1994.
