Watertube boilers are sophisticated systems for high-pressure, high-temperature steam production, vital for industrial power generation, process heating, and steam supply. Unlike firetube boilers, which pass hot gases through water-immersed tubes, watertube boilers circulate water inside tubes surrounded by intense combustion heat. This fundamental design makes them indispensable for handling immense pressures and delivering steam rapidly.

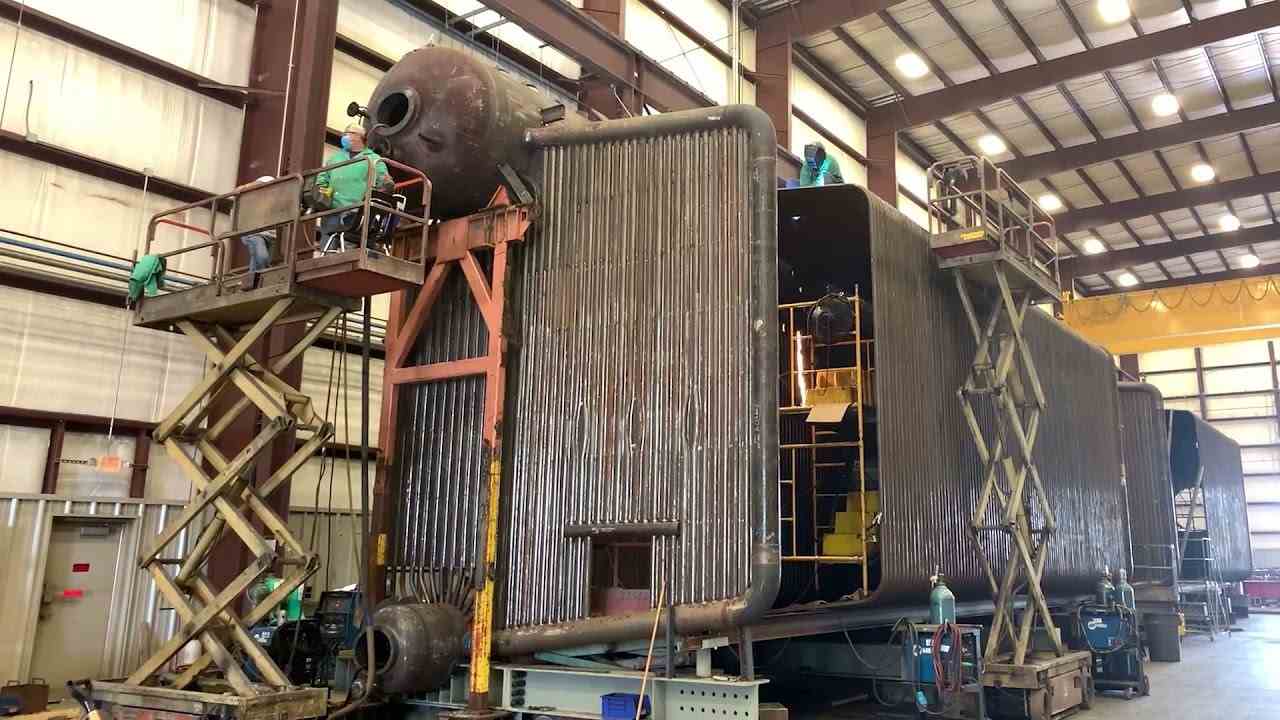

Design and Operational Principle
A watertube boiler operates on a continuous cycle of water and heat. Treated feedwater is pumped into the steam drum at the top, then descends through downcomers to lower headers or a mud drum. Water then flows into numerous smaller tubes, the primary heating surface, arranged within the furnace and exposed to radiant and convective heat from fuel combustion. As water heats, it boils into a lighter steam-water mixture, rising through riser tubes back to the steam drum. Internal separators efficiently separate pure, dry steam for use, while the separated hot water recirculates. This constant flow ensures uniform heating, prevents localized overheating, and contributes significantly to thermal efficiency. Modern designs often incorporate superheaters to elevate steam temperature, and economizers and air preheaters to scavenge waste heat, optimizing energy utilization.
Advantages of Watertube Boilers
Watertube boilers offer compelling advantages for large-scale industrial operations. Their unparalleled ability to produce exceptionally high-pressure, high-temperature steam is vital for driving massive power generation turbines efficiently. Safety is paramount; their design, distributing water into numerous small tubes, makes them inherently safer, with tube failures typically resulting in manageable steam leaks. They boast rapid startup times, crucial for flexible industrial operations, and their vast heating surface area contributes to high thermal efficiency. Modular construction simplifies transportation and assembly, while continuous water circulation minimizes thermal stresses, extending operational life and boosting reliability.
The Trade-offs: Understanding the Challenges
Despite their impressive capabilities, watertube boilers come with inherent trade-offs. Their complex design and multitude of intricately arranged tubes make them more expensive to manufacture, install, and maintain. Specialized cleaning is essential to prevent scale buildup, which impedes heat transfer and causes failure. Their most critical vulnerability lies in high sensitivity to feedwater quality; impurities can quickly lead to tube blockages, reduced efficiency, and potential ruptures, underscoring the non-negotiable importance of robust water treatment. Additionally, their large physical size and complex piping demand a significant footprint.
Maintenance and Best Practices for Optimal Performance
To ensure longevity, efficiency, and safe operation, diligent maintenance and best practices are critical. Regular inspections are paramount, including visual checks for leaks, corrosion, and wear. Water chemistry management cannot be overstated; continuous monitoring and precise control of feedwater quality are essential to prevent scale formation and mitigate corrosion. Scheduled preventative maintenance, including internal inspections during shutdowns, is vital for identifying potential issues. Tube cleaning is performed periodically to remove accumulated deposits. Boiler operators must be highly trained and vigilant, continuously monitoring operating parameters. A robust safety program, including regular safety audits and adherence to industry codes, is fundamental. Embracing predictive maintenance technologies can also help anticipate failures, minimizing unscheduled downtime.

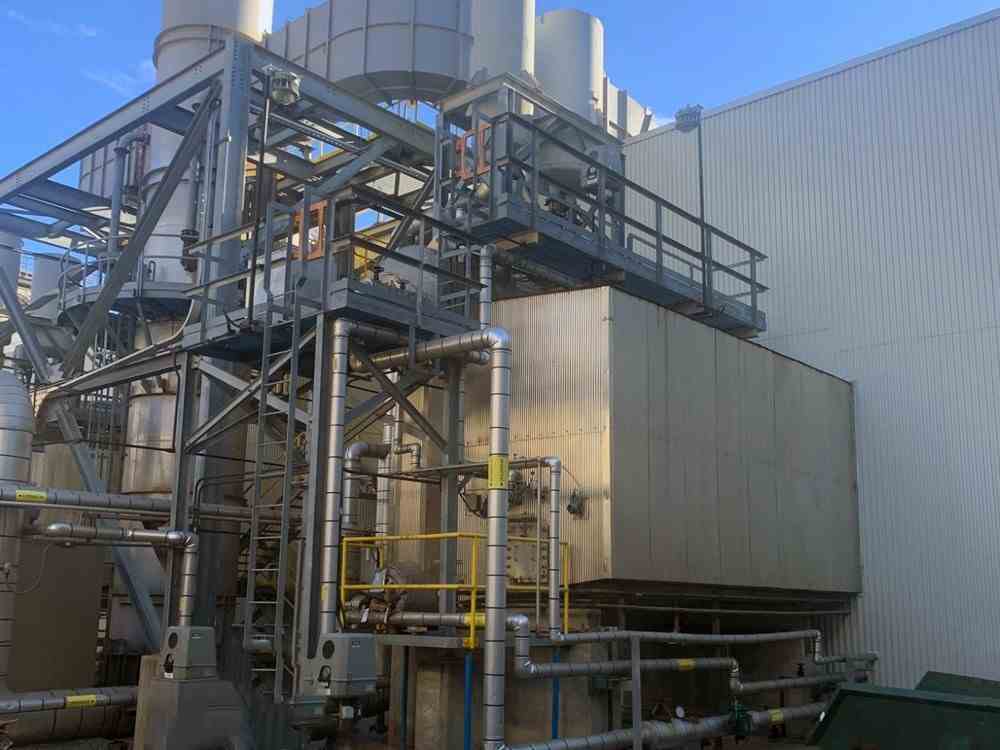

Major Applications
Watertube boilers are the preferred choice in industries where high-pressure steam, large volumes, and unwavering reliability are paramount. This includes process heating, where steam is directly used in various industrial processes like chemical reactions, drying, and sterilization. They are the undisputed backbone of central power generation plants (fossil-fueled and nuclear), producing high-temperature, high-pressure superheated steam for efficient electricity-generating turbines. The chemical and petrochemical industries heavily rely on them for process steam, direct heating, and internal power generation. Other significant industrial users include large pulp and paper mills, manufacturing plants, and waste-to-energy facilities. Their ability to handle diverse fuel sources further enhances their versatility.
Featured: Unused (2022) 150,000 LBS/HR Cleaver Brooks Watertube Boiler Available

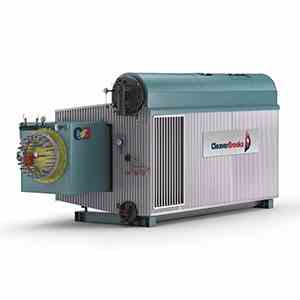

As a compelling, real-world example of an industrial-scale watertube boiler, consider the unused (2022) 150,000 LBS/HR Cleaver Brooks Watertube Boiler (Phoenix Equipment Stock #22259). This unit perfectly illustrates a boiler engineered for heavy-duty industrial service. Cleaver Brooks is a well-respected manufacturer, globally recognized for reliable, efficient, and technologically advanced steam generation solutions. A boiler producing 150,000 pounds of steam per hour is typically designed for very large commercial or industrial operations, such as significant manufacturing facilities, large institutional campuses, or regional power support. Such a boiler incorporates advanced control systems for precise and automated operation, optimized heat transfer surfaces for maximum thermal efficiency, and robust materials for continuous, demanding service cycles. Its design ensures complete and clean fuel combustion and a sophisticated steam drum arrangement for highly effective steam-water separation, guaranteeing high-quality, dry steam crucial for downstream processes or efficient turbine operation. This significant capacity positions it perfectly for applications where a consistent, substantial, and reliable steam supply is an absolute non-negotiable requirement.
Summary
In summary, watertube boilers are sophisticated engineering marvels, indispensable for meeting the demanding steam and power generation needs of modern industry. Their unique design allows for high-pressure, high-temperature operation with excellent safety and superior thermal efficiency. While their inherent complexity and sensitivity to feedwater quality necessitate diligent maintenance and may involve a higher initial investment, their unparalleled performance and unwavering reliability in high-demand applications are a critical part of a chemical plant’s infrastructure. Phoenix Equipment’s unused (2022) 150,000 LBS/HR Cleaver Brooks Watertube Boiler is now available at great savings over a new unit.
