Cogeneration Power Plant (Siemens SGT 600) - 2 X 62.5 MW

Cogeneration Power Plant (Siemens SGT 600) - 2 X 62.5 MW

Stock # 1018
Capacity
Products Electricity, Steam

Overview

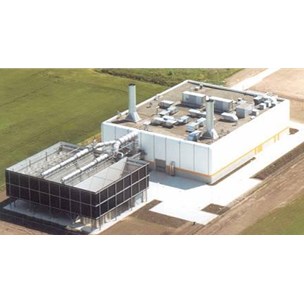

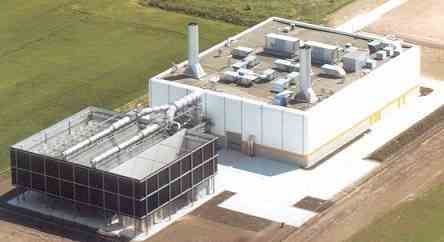

There are two identical cogeneration power plants. Each one is 62.5 MW output. Both plants were commissioned in 1996 and shut down in 2012. Gas turbine generator was supplied by Siemens (2x SGT 600, former ABB/Alstom GT 10). Power output & efficiency: 2x 24,77 MW; 34,2 %. Steam turbine generator is ABB Stall (condensing with extraction). Power output: 12 MW. Steam parameters: 510/195 degree celsius, 83/8 bar, 20/4 kg/s. Combined efficiency: 49,6 %. Fuel utilization: Natural gas. Heat output level: MP: 100 degree celsius, 2 bar, 15 kg/s; LP: 71 degree celsius, 1 bar; 7 kg/s.

Major Equipment

Siemens (2x SGT 600, former ABB/Alstom GT 10) gas turbine generator
ABB Stall steam turbine generator
Share
SPECIFICATIONS RESOURCES
Year Built 1996
Year Shut 2012
Capacity
Products Electricity, Steam
Subcategory Cogeneration Power Plants
