Ammonia Plant

Plant# 232
Capacity 90 TPD

Plant Description

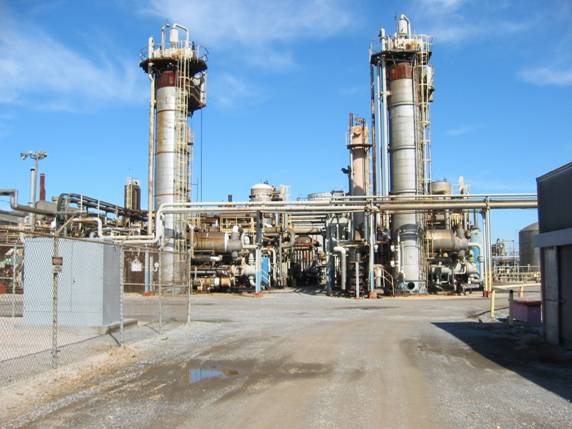

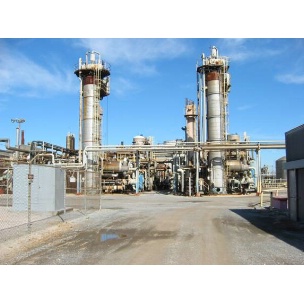

Phoenix Equipment Corporation has this used Ammonia plant immediately available. This plant produces 90 TPD of ammonia. The plant is designed for high mobility. They can be easily and quickly moved to different locations. Basic operation data are as follows: Operation Pressure: - Reforming and Purification section: 240 psig. - Synthesis Loop - 4850 psig, maximum 5150 psig. Material Consumption: - 32.2 mmbtu per short ton after steam credits; or - 34 mmbtu per short ton before steam credits Steam Consumption: 4600#/short ton Electricity: 865KWH/short ton

Major Equipment

The plant including: - Compressors - Reformers - Motors - Heat exchangers - Boilers

Products

Not Listed
