AKD Wax Plant
- Plant# 121
- Capacity 12,000 TPY
Plant Description
Phoenix Equipment Corporation has this used AKD Wax plant immediately available.

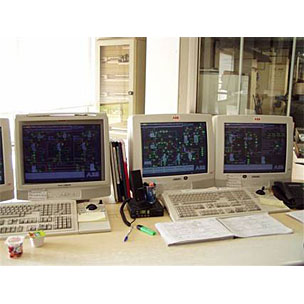

Fatty acid chloride, triethylamine and toluene are subject to a batch reaction in a glass lined vessel at 65°C. The corresponding ketene and then the diketene (AKD wax) are formed. The reaction mass is decanted and then extracted. The extract is then steam vacuumed distilled. This is a fine tuned totally recovering process. Toluene as well as unreacted triethylamine are recovered in the work up and reintroduced in the next batch. The process is automated (ABB).
Major Equipment

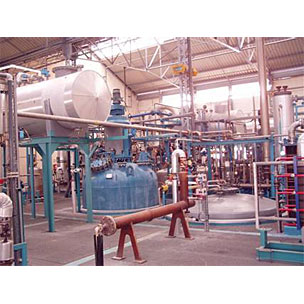

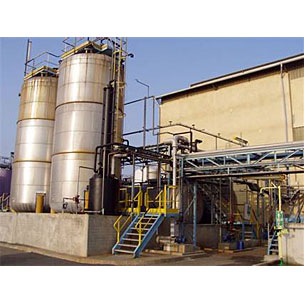

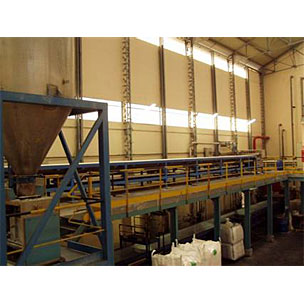

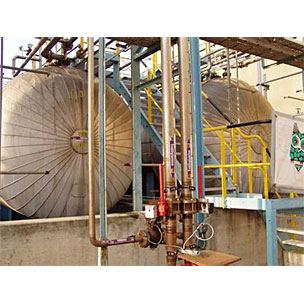

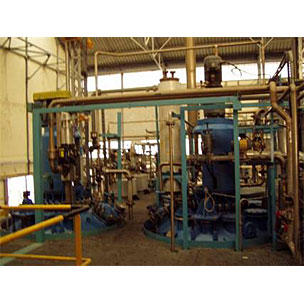

(2) DEDIETRICH CE12500 GLASS LINED REACTORS (1) DEDIETRICH CE15000 GLASS LINED REACTOR (2) SANDVIK STAINLESS STEEL 1,250MM WIDE X 17,000MM LONG BELT COOLERS WITH PASTILLATORS MILD STEEL AND STAINLESS STEEL STORAGE TANKS, RANGING FROM 32,000 LITRES TO 55,000 LITRES CAPACITIES (3) 12,000 TO 18,000 LITRE DECANTER VESSELS VARIOUS STAINLESS STEEL SHELL AND TUBE HEAT EXCHANGERS VARIOUS LIQUID RING VACUUM PUMPS (6) STAINLESS STEEL MOLECULAR SIEVES RAW MATERIAL UNLOADING STATION
Products
Not Listed
