FDY Nylon 6,6 Spinning Plant
- Plant# 262
- Capacity 5,000 TPY
Plant Description
The FDY (Fully Drawn Yarn) Nylon 66 & Polyester spining lines produce 5000 tons per year at 960Â]1400 Dtex. The process have CTD (Continuous Tower Dryer) or SSP (Solid State Polymeriser) with Spinning/DSD
(Direct Spin Draw) area.

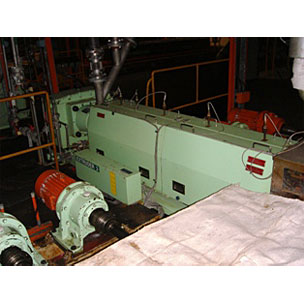

Extrusion & Quenching has
1. 3x Nylon Lines, 3 Extruders each Extruder with 2 Pack Boxes (4 Packs/Spinnerettes each), IE 8 Thread
Lines per Extruder total 24 Thread Lines. Extruder has 5 Heating Zones and is Non Vented.
2. 1x Nylon Line Converted to Polyester, 1 Extruder with 2 Pack Boxes (4 Packs/Spinnerettes), IE 8 Thread
Lines in Total. Extruder has 5 Heating Zones and is Non Vented.
3. Quench Chambers all have Monomer Extraction.

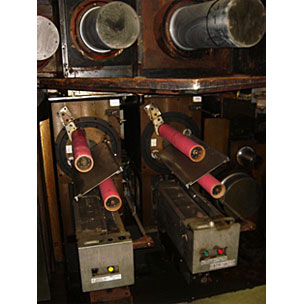

Spinning/Wind Up has
1. Spin Finish Applicator
2. PreÂ]Draw Area, 2 Sets of Godets
3. Hot Draw Area, 3 Sets of Godets
4. Relax Zone, 1 Set Godet
5. Intermingling
6. Winders with Bottom Feed, Auto Change Over, 2 Positions each with 2 for Change Over, Approx
Speed for 3000m/min (Depending on Product)
Major Equipment
Not Listed
Products
Not Listed
