Glycerin (Pharma Grade) Plant
- Plant# 125
- Capacity 50 TPD
Plant Description
Phoenix Equipment Corporation has this used Glycerin plant immediately available.

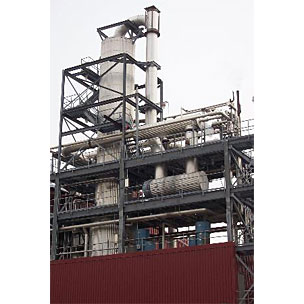

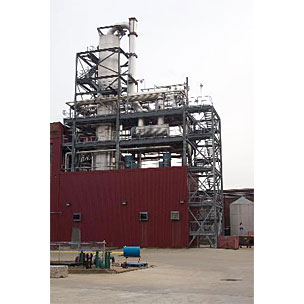

This plant is designed to encompass crude distillation and glycerin bleaching, producing USP pharma grade glycerin. The plant consists of a pre-dryer, a structured packing distillation column, and a continuous bleaching unit. The process incorporates two post-addition stills for residue recovery, and can be modified to be capable of running "all vegetable" based biodiesel crude once a precut column is installed to remove methanol. The glycerin produced will be in accordance with pharmaceutical glycerin specifications, with a concentration of 99.8% glycerin minimum.
Major Equipment
Addison Fabricators, Inc. distillation column, 316L stainless steel, Monel 400 bottom, with Monel 400 internal heater bundles, rated 15/FV PSI @428 deg. F, 521" T/T X 94.6" OD, structured packing, removable heads Addison Fabricators, Inc. distillation still, c/s 118" OD X 94.6" T/T 15/FV PSI @ 446 deg. F Addison Fabricators, Inc. post distillation still 1, c/s construction, 64" T/T, dished ends, integrally mounted heater Addison Fabricators, Inc. post distillation still 2, c/s construction, 64" T/T, dished ends, integrally mounted haters Addison Fabricators, Inc. Bleaching vessel 1, 316L stainless steel, rated 130/FV PSI @ 302 deg. F, 60" OD X 213" T/T, dished heads Addison Fabricators, Inc. Bleaching vessel 2, 316L stainless steel, rated 130/FV PSI @ 302 deg. F, 60" OD X 213" T/T, dished heads Addison Fabricators, Inc. Bleaching vessel 3, 316L stainless steel, rated 130/FV PSI @ 302 deg. F, 60" OD X 213" T/T, dished heads Addison Fabricators, Inc. dryer vessel, c/s construction, 56" OD X 84" T/T, packing is 26 cu. ft. of 1" pall rings, duplex stainless Addison Fabricators, Inc. 304L stainless recievers for distillate 1 and 2' 28" OD X 40" T/T Addison Fabricators, Inc. finished product reciever, 316L stainless steel, 28" OD X 42" T/T, 100/FV PSI @ 350 deg. F Netzsch glycerin residue pump, 6 GPM, 316L stainless steel, 1.5 HP Durco pump, 8 GPM, 202 ft. hd., alloy D4, 10 HP Goulds model 3196 MTX, 2X3-8, 30 HP Goulds 3196 MTX, 1.5X3-13, 10 HP Goulds 3196 MTX 1X1.5-8, 5 HP Goulds LF3196 LTX, 1.5X3-13, 10 HP Goulds Model 3196 MTX, 1X2-10, 5 HP Goulds model LF3196 MTX, 1X2-10, 10 HP Misc. tanks, pumps and interconnecting piping MCC control center Tranter heat exchanger Rosedale Polish filters (2) Dewatering screen, stainless steel
Products
Not Listed
