6 " Dia Lindberg Calciner
Other Views - click image for larger view
6 " Dia Lindberg Calciner 6 " Dia Lindberg Calciner 6 " Dia Lindberg Calciner 6 " Dia Lindberg Calciner 6 " Dia Lindberg Calciner 6 " Dia Lindberg Calciner

6 " dia lindberg calciner

Stock # 8318
Sold
Capacity 6 " Dia

Overview

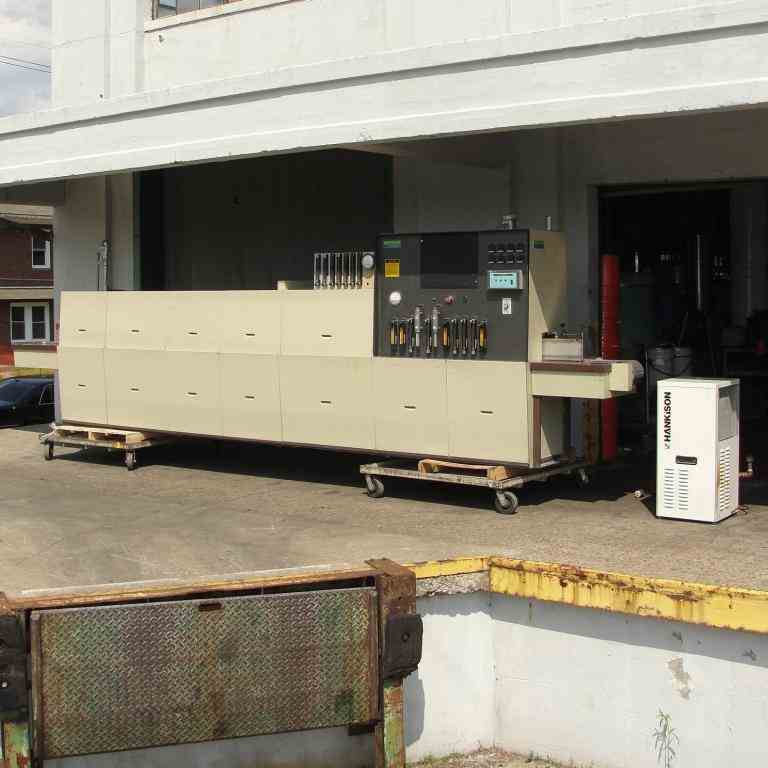

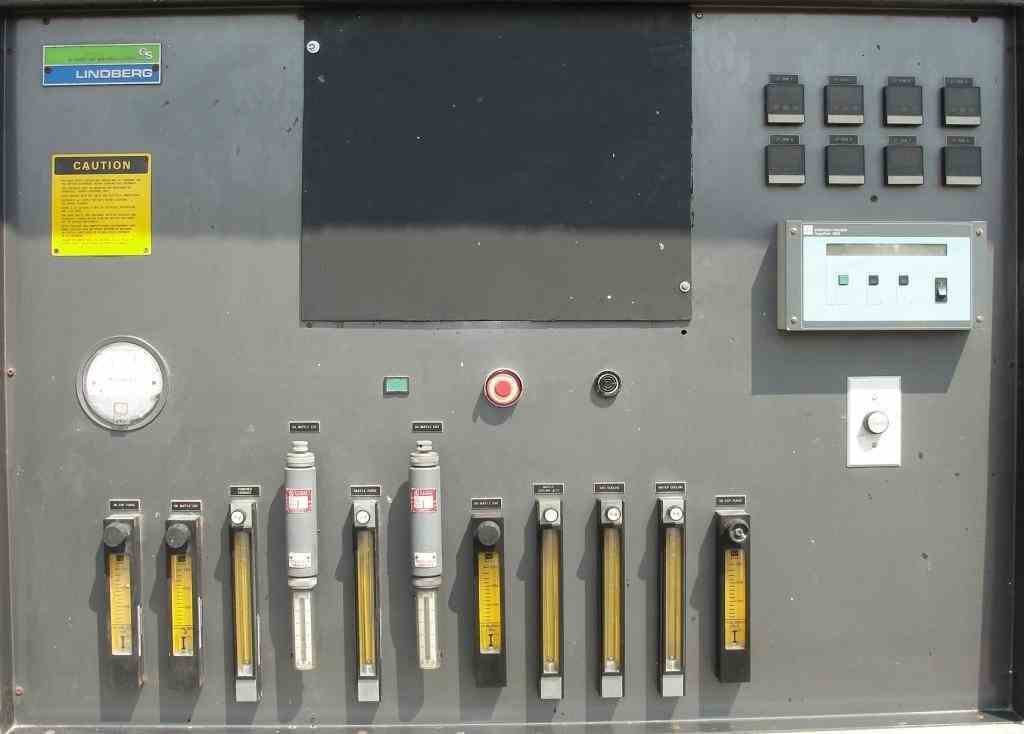

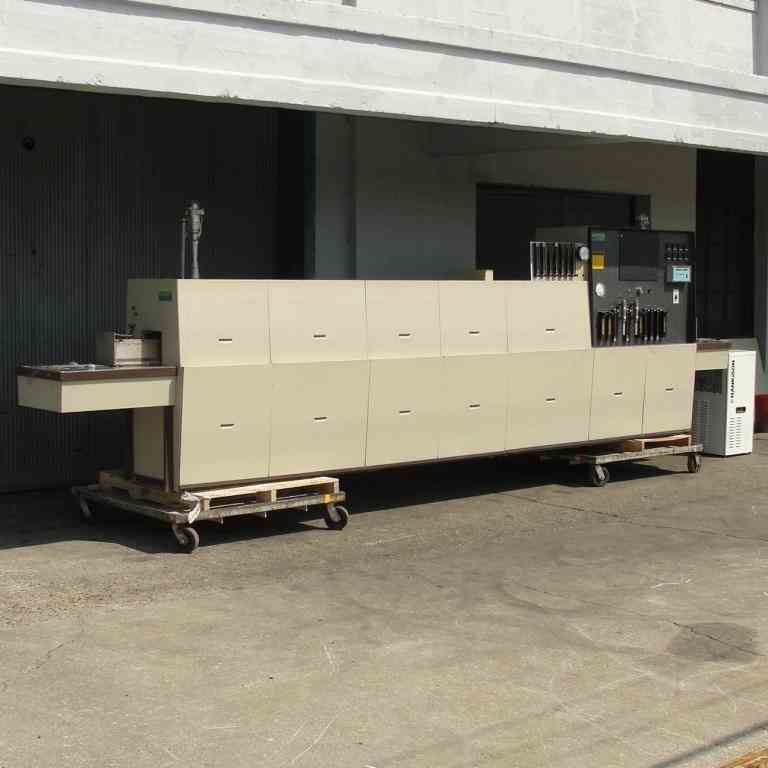

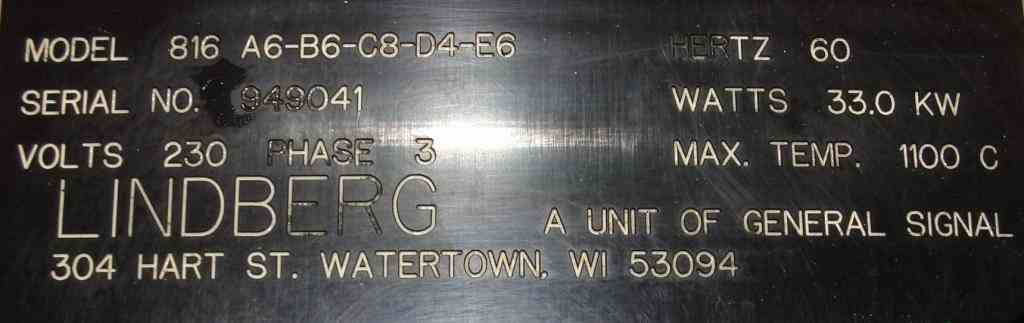

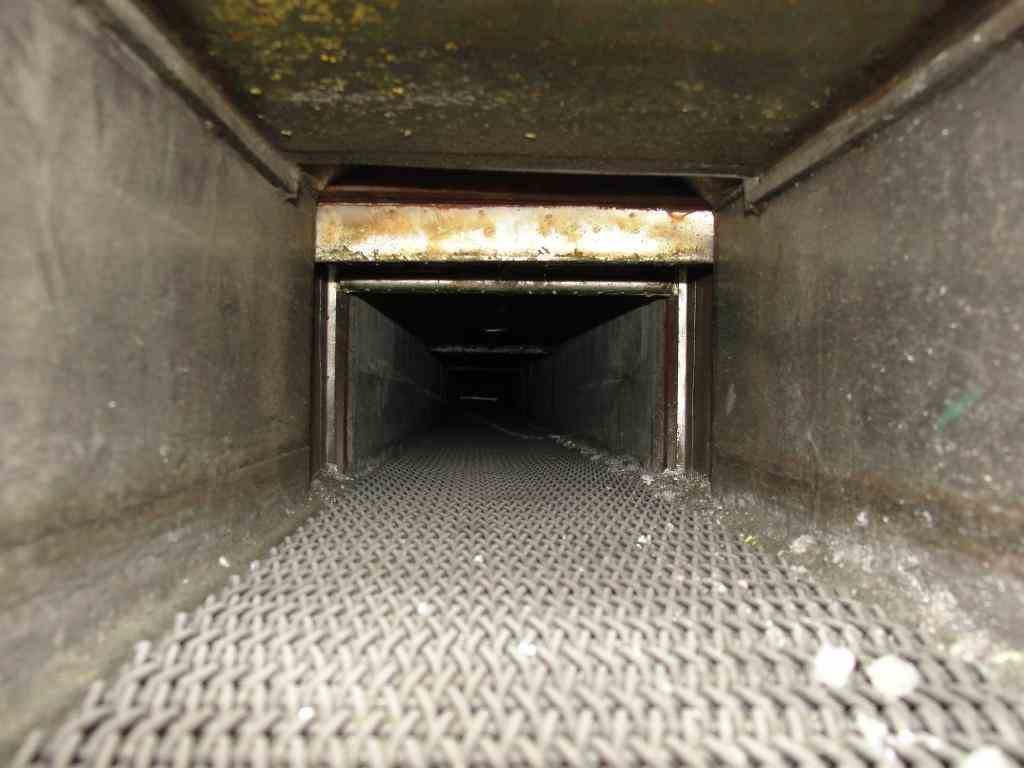

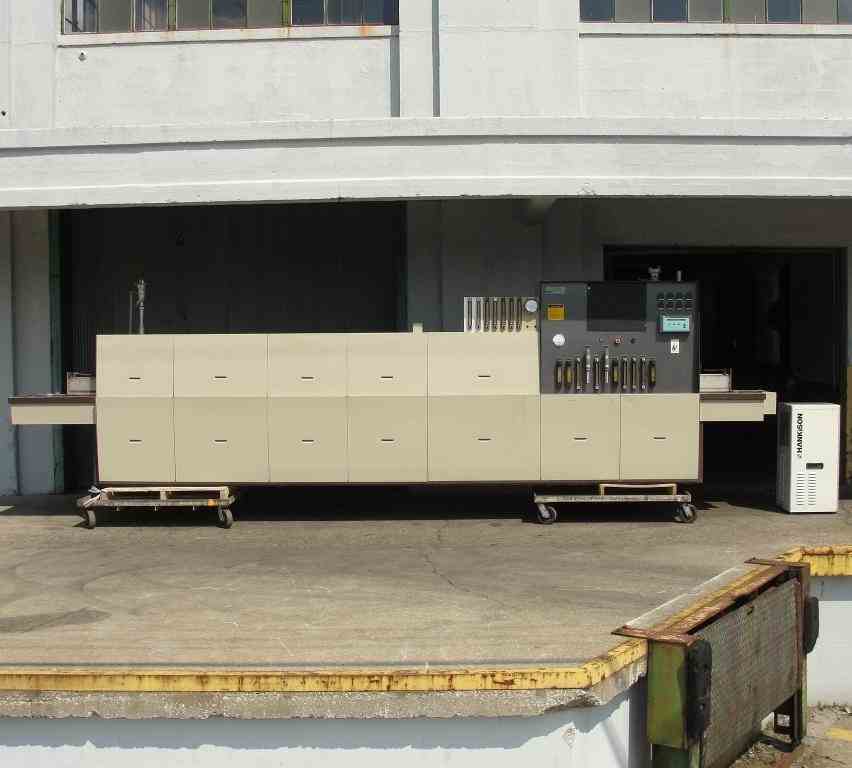

Used Lindberg Model 816 continuous mesh belt conveyor furnace. Calciner has a 6" wide x 20' long mesh belt with a 3" clearance. The belt has 1-10 inches per min speed. The 6' heated length has 8 controlled zones with zone #1 up to 750° C and zones #2-#8 up to 1100° C. The calciner has a 6’ cooling length. Atmospheric or nitrogen purge capable. Overall estimated dimensions are 252" long x 28" wide x 72" tall. Serial number 949041. Requires 230 vac 3 phase electrical supply and 30 gallons per hour of water at 30-70 psi at 55° F. The local operator controls were removed and the unit was controlled by a remote desktop computer via ethernet.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Lindberg
Model
816
Material
Unknown
Capacity
6 " Dia
