80 Cu Ft Stainless Steel Ribbon Blender

80 cu ft stainless steel ribbon blender

Stock # 4803
Sold
Capacity 80 Cu Ft

Overview

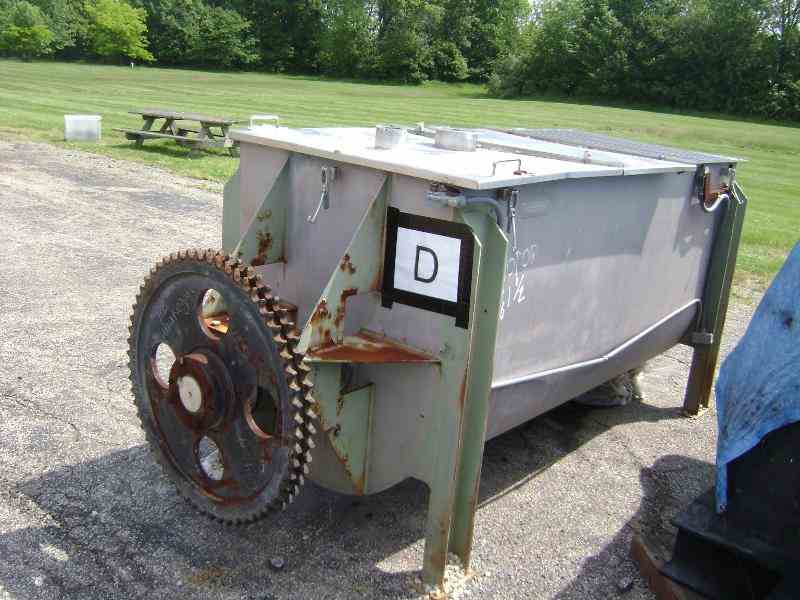

Used 80 cubic feet working capacity American Process Double Ribbon Blender.  Model DRB 80.  Serial #1223.  Stainless steel construction.  Trough is approx. 40 in. wide x 96 in. long x 48 in. deep.  Single shaft with double ribbon.  Outer ribbon is approx. 2 in. wide and approx. 1/2 in. thick.  Inner ribbon is approx. 3 in. wide and 3/8 in. thick.  Ground smooth welds.  End discharge (Requires valve).  3 sectioned stainless steel top cover (1 section hinged, 1 section with flanged inlet and 1 section of safety grate).  Double sprocket to 40 HP 3/60/230/460V, 1760 RPM gear motor.  Reducer shows 1760 RPM input/101 RPM output.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Unknown
Model
Material
Stainless Steel
Capacity
80 Cu Ft
Category
Subcategory
